• 09-1028B-9 Johnson Pump F7B Nitrile Spline-Drive Impeller | Genuine OEM Marine Part
1 1

09-1028B-9 Johnson Pump F7B Nitrile Spline-Drive Impeller | Genuine OEM Marine Part

09-1028B-9 Johnson Pump F7B Nitrile Spline-Drive Impeller | Genuine OEM Marine Part

$120.00 AUD
$120.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

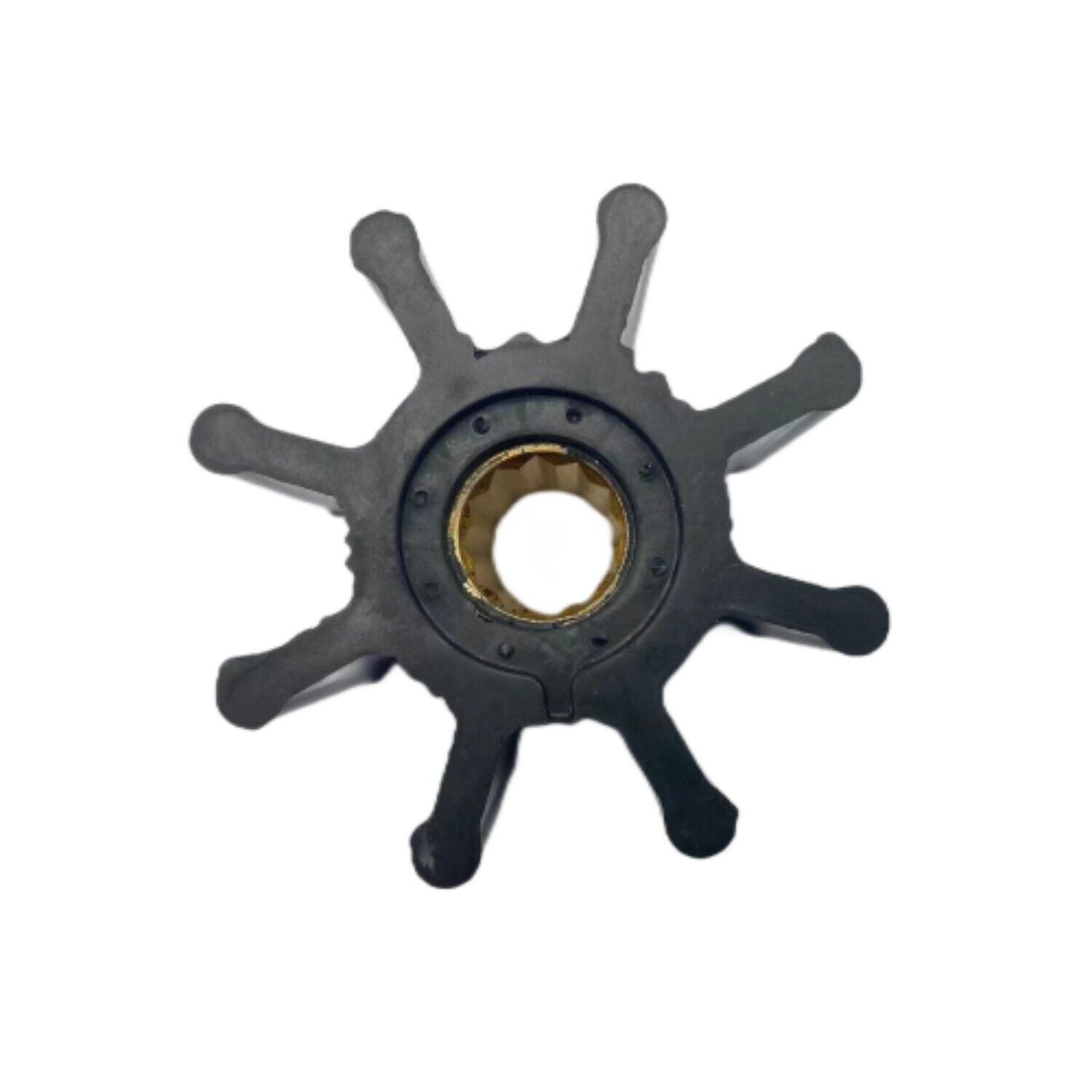

Aftermarket F7B Nitrile Spline-Drive Impeller - Replaces SPX Johnson 09-1028B-9

Oil-resistant nitrile version of the F7B spline-drive impeller. It uses the same 65 × 50.2 mm pump envelope as the water-service 09-1028BT-1 but is selected for diesel, oil and compatible oily-fluid duties.

⚙️ Key Features

  • Material: nitrile, oil resistant
  • Outside diameter: 65.0 mm / 2.56 in
  • Width: 50.2 mm / 1.98 in
  • Drive: internal spline
  • Commonly catalogued as an 8-vane Johnson configuration

🚤 Compatibility

Commonly used on

  • SPX Johnson F7B nitrile spline-drive pumps
  • Jabsco pumps specifying 17937-0003
  • High-capacity oil and diesel transfer systems using the same F7B spline

Application Details

  • Pump / Service Type: Diesel, lubricating oil, oily water and compatible high-volume fluid transfer
  • Identification: Confirm nitrile compound, 65 × 50.2 mm dimensions and exact spline.
  • Always compare the removed impeller or pump against the listed dimensions, drive style, material and housing depth before installation.

🔌 Function

The flexible vanes form expanding chambers on the inlet side and contracting chambers on the discharge side. This produces self-priming suction and moves cooling water or other compatible fluids through the pump.

⚠️ Common Signs of Failure

  • Reduced flow or inability to prime
  • Engine overheating or weak cooling-water discharge
  • Pulsing flow, cavitation or unusual pump noise
  • Vanes are cracked, hardened, flattened or missing
  • Hub has slipped, corroded or loosened from the rubber body
  • Impeller has been damaged by dry running, debris or incompatible fluid

🔄 Supersession & Cross Reference

OEM / Manufacturer Number Progression

  • 09-1028B-9 - current verified nitrile service reference

OEM / Related Numbers

  • 09-1028B-9
  • 09-1028B / 09-1028BT-1 - water-service counterparts

Direct Same-Material / Configuration Equivalents

  • Jabsco: 17937-0003
  • Jabsco: 920-0003 - related nitrile catalogue family; verify spline and vane configuration
  • JMP: 7400-02
  • CEF: 500206

Dimensional or Different-Material Counterparts

  • Jabsco 17937-0001, JMP 7426-01K, CEF 500114 and SPX Johnson 09-1028BT-1 - water-service material counterparts

📦 Condition

  • Brand-new aftermarket replacement impeller
  • New and unused
  • Supplied in suitable manufacturer or equivalent protective packaging
