• 09-824P-9 Johnson Pump F4B-19 Nitrile Impeller | Genuine OEM Marine Part
1 1

09-824P-9 Johnson Pump F4B-19 Nitrile Impeller | Genuine OEM Marine Part

09-824P-9 Johnson Pump F4B-19 Nitrile Impeller | Genuine OEM Marine Part

$67.00 AUD
$67.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

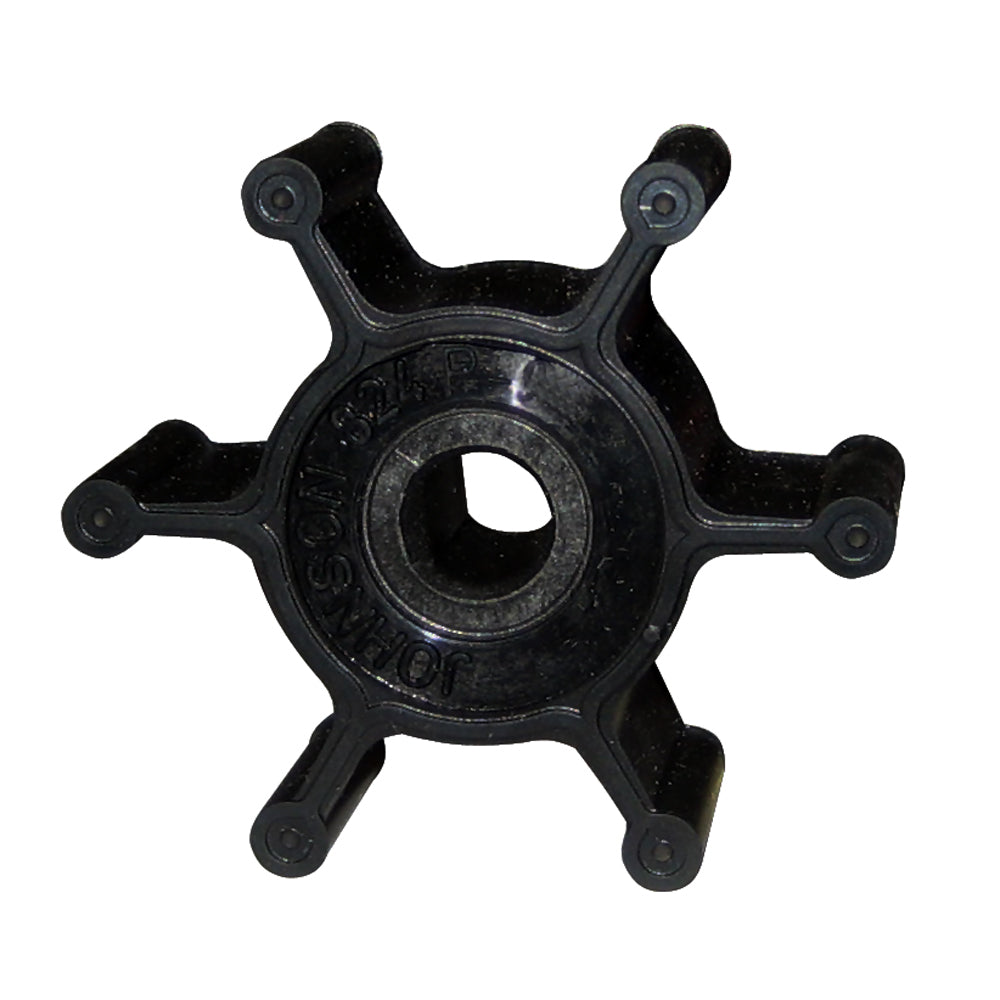

Aftermarket F4B-19 Nitrile Single-Flat Impeller - Replaces SPX Johnson 09-824P-9

Six-blade nitrile impeller for Johnson F4B-19 electric transfer pumps and related F4 pump bodies. It is widely cross-referenced to Jabsco, Ancor, CEF, JMP and several aftermarket service kits.

⚙️ Key Features

  • Material: nitrile, oil resistant
  • Outside diameter: 50.8 mm / 2.00 in
  • Width: 22.0 mm / 0.87 in
  • Hub bore: 8.0 mm single flat
  • Blade count: 6

🚤 Compatibility

Commonly used on

  • SPX Johnson F4B-19 pumps
  • SPX Johnson 10-24689-series and 10-24727-series transfer pumps
  • Jabsco pumps specifying 6303-0003
  • Compatible Milwaukee M18 transfer-pump applications using the 50.8 × 22 × 8 mm single-flat impeller

Application Details

  • Pump / Service Type: Diesel, oil, oily water and compatible transfer duty
  • Identification: Confirm nitrile material, 50.8 × 22 mm size and 8 mm single-flat drive.
  • Always compare the removed impeller or pump against the listed dimensions, drive style, material and housing depth before installation.

🔌 Function

The flexible vanes form expanding chambers on the inlet side and contracting chambers on the discharge side. This produces self-priming suction and moves cooling water or other compatible fluids through the pump.

⚠️ Common Signs of Failure

  • Reduced flow or inability to prime
  • Engine overheating or weak cooling-water discharge
  • Pulsing flow, cavitation or unusual pump noise
  • Vanes are cracked, hardened, flattened or missing
  • Hub has slipped, corroded or loosened from the rubber body
  • Impeller has been damaged by dry running, debris or incompatible fluid

🔄 Supersession & Cross Reference

OEM / Manufacturer Number Progression

  • 09-824P-9 - current verified nitrile service reference

OEM / Related Numbers

  • 09-824P-9
  • 09-824P-2 - polyurethane ballast version
  • 09-824P-1 - MC97 water-service version

Direct Same-Material / Configuration Equivalents

  • Jabsco: 6303-0003 / 6303-0003-P
  • JMP: 7053-02
  • CEF: 500210; market catalogues also list 500238 / 500138
  • Ancor: J050011 / 2080 / 2080-GIR
  • HJumbo: HJB-H-157
  • Milwaukee: 49-16-2771 / 49-16-2771-S - dimensional transfer-pump application
  • TMC: TMC-06211

Dimensional or Different-Material Counterparts

  • Jabsco 6303-0001 and 7273-0001 - neoprene water-service counterparts
  • Jabsco 6303-007-P and SPX Johnson 09-824P-2 - polyurethane ballast counterparts

📦 Condition

  • Brand-new aftermarket replacement impeller
  • New and unused
  • Supplied in suitable manufacturer or equivalent protective packaging
