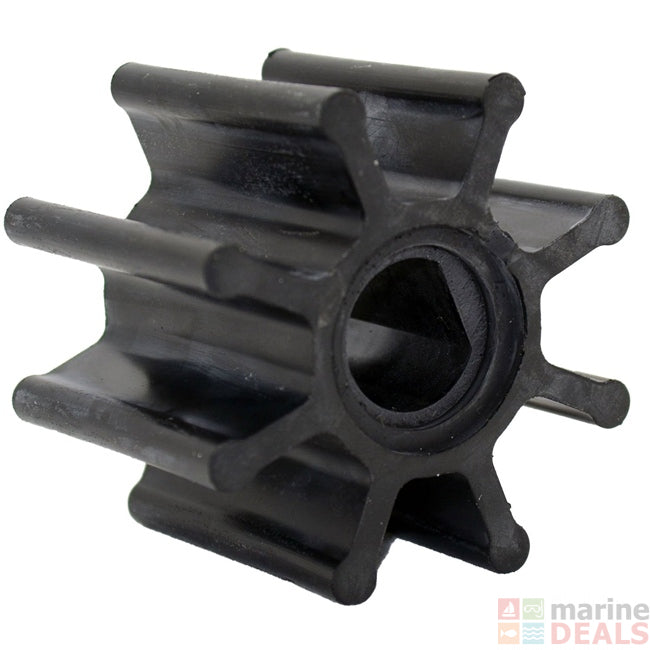

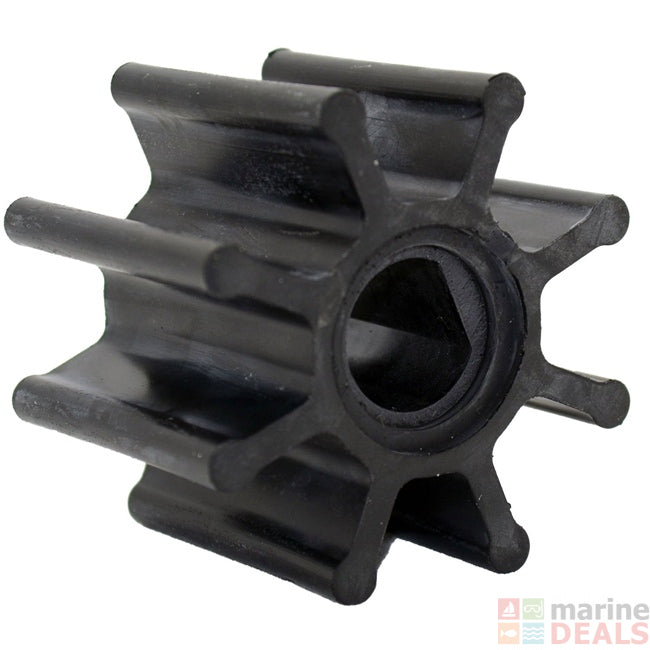

09-843S-9 Johnson Pump F3B Nitrile Impeller | Genuine OEM Marine Part

09-843S-9 Johnson Pump F3B Nitrile Impeller | Genuine OEM Marine Part

$63.00 AUD
$63.00 AUD
Sale Sold out
Shipping calculated at checkout.

🔧 Product Description

Aftermarket F3B-19 Nitrile Impeller - Replaces SPX Johnson 09-843S-9

Compact six-blade nitrile impeller for Johnson F3B-19 bilge, deck-wash and oil-change pumps. SPX lists no official Jabsco replacement, so the exact 45.2 × 12.8 mm single-flat geometry must be retained.

⚙️ Key Features

  • Material: nitrile, oil resistant
  • Outside diameter: 45.2 mm / 1.78 in
  • Width: 12.8 mm / 0.50 in
  • Hub bore: 8.0 mm single flat
  • Blade count: 6

🚤 Compatibility

Commonly used on

  • SPX Johnson F3B-19 pumps 10-24516-series
  • SPX Johnson F3B-19 oil-change pumps 10-24760-series

Application Details

  • Pump / Service Type: Oil, diesel, bilge, deck-wash and compatible utility pumping
  • Identification: Confirm 45.2 × 12.8 mm size and 8 mm single-flat drive.
  • Always compare the removed impeller or pump against the listed dimensions, drive style, material and housing depth before installation.

🔌 Function

The flexible vanes form expanding chambers on the inlet side and contracting chambers on the discharge side. This produces self-priming suction and moves cooling water or other compatible fluids through the pump.

⚠️ Common Signs of Failure

  • Reduced flow or inability to prime
  • Engine overheating or weak cooling-water discharge
  • Pulsing flow, cavitation or unusual pump noise
  • Vanes are cracked, hardened, flattened or missing
  • Hub has slipped, corroded or loosened from the rubber body
  • Impeller has been damaged by dry running, debris or incompatible fluid

🔄 Supersession & Cross Reference

OEM / Manufacturer Number Progression

  • 09-843S-9 - current verified SPX Johnson service reference

OEM / Related Numbers

  • 09-843S-9
  • 09-1052S-9 - same principal dimensions for TA3P10/F3P10 package

Direct Same-Material / Configuration Equivalents

  • AMS: J-09-843S-9
  • Aftermarket 09-843S-9 / J-09-843S-9 dimensional service kits

Dimensional or Different-Material Counterparts

  • SPX Johnson 09-1052S-9 - same 45.2 × 12.8 × 8 mm flat nitrile envelope, supplied for macerator/F3P10 service
  • No official SPX-listed Jabsco replacement

📦 Condition

  • Brand-new aftermarket replacement impeller
  • New and unused
  • Supplied in suitable manufacturer or equivalent protective packaging
