09168-12012-000 Suzuki Marine Sump Plug Washer | Genuine OEM Outboard Part

🔧 Product Description

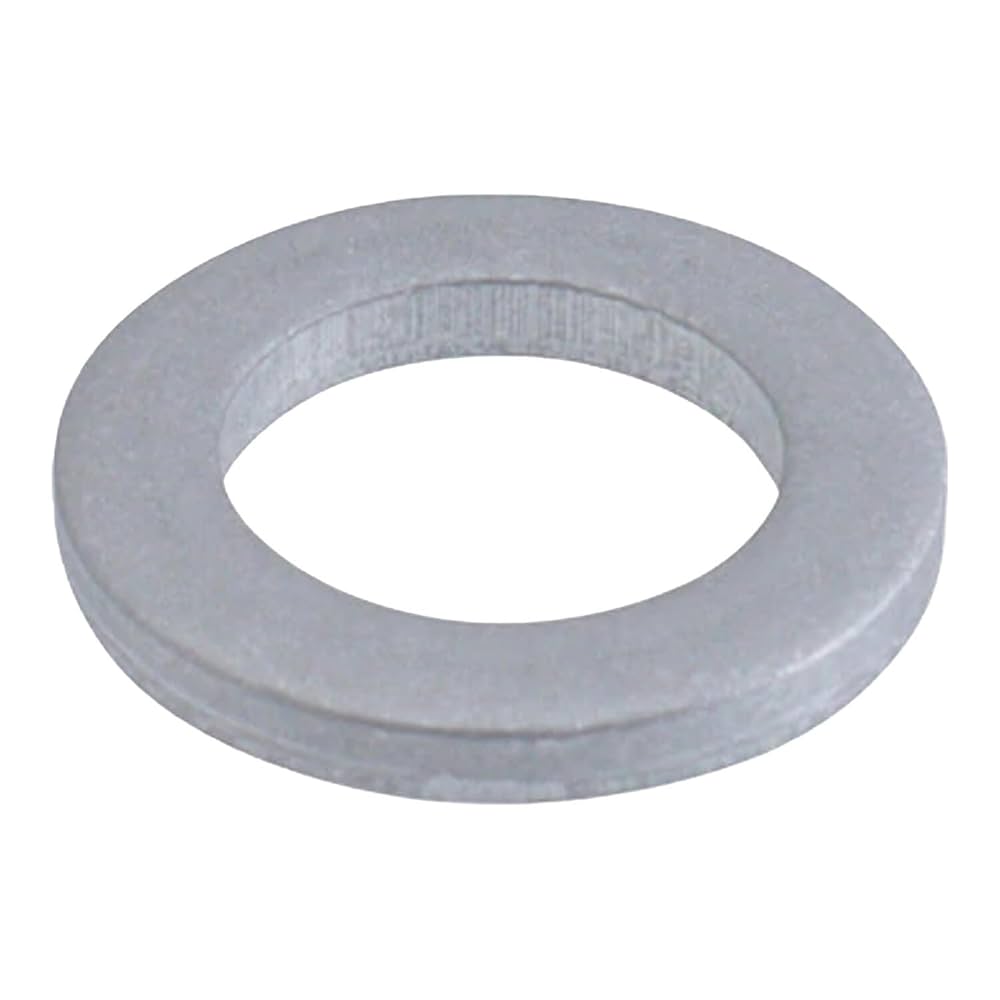

Genuine Suzuki Marine Engine-Oil Drain-Plug Gasket - Part Number: 09168-12012-000

A genuine Suzuki 12.5 × 20 × 2.5mm sump-plug washer for later four-stroke outboards. It crushes between the engine-oil drain bolt and oil-pan sealing face to prevent lubricant leakage after an oil change.

⚙️ Key Features

• Genuine Suzuki 12.5 × 20 × 2.5mm dimensions

• Single-use crush washer

• Designed for engine-oil drain bolts

• Wide later-model Suzuki application coverage

• Direct routine-service replacement

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• No supersession; current Suzuki OEM reference

OEM / Related Numbers:

• Suzuki: 09168-12012

• Suzuki packaged number: 09168-12012-000

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Suzuki Marine four-stroke outboard engine-oil drain-plug gasket applications

Typically suits:

• Engine models:

• DF40A, DF50A, DF60A, DF50AV and DF60AV

• DF75A, DF80A and DF90A

• DF115B and DF140B

• DF150A, DF175A and DF200A/AP

• DF200, DF225, DF250, DF250A, DF300A/AP, DF300B, DF325A and DF350A

• HP Range: 40HP-350HP

• Engine Type: Inline three-cylinder, inline four-cylinder or V6 four-stroke outboard

• Year Range: Approximately 2009 onward

🔌 Function

Seals the sump drain bolt so pressurised and splash-lubricated engine oil remains inside the crankcase.

Common signs of failure:

• Engine oil dripping from the sump plug

• Washer is crushed unevenly or split

• Oil residue returns after cleaning the plug area

• Drain bolt has been overtightened to control seepage

• Low engine-oil level between services

📦 Condition

• Genuine Suzuki Marine OEM part

• Brand new

• Supplied in original or equivalent packaging
