09320-08501 Suzuki Marine Cushion | Genuine OEM Outboard Part

🔧 Product Description

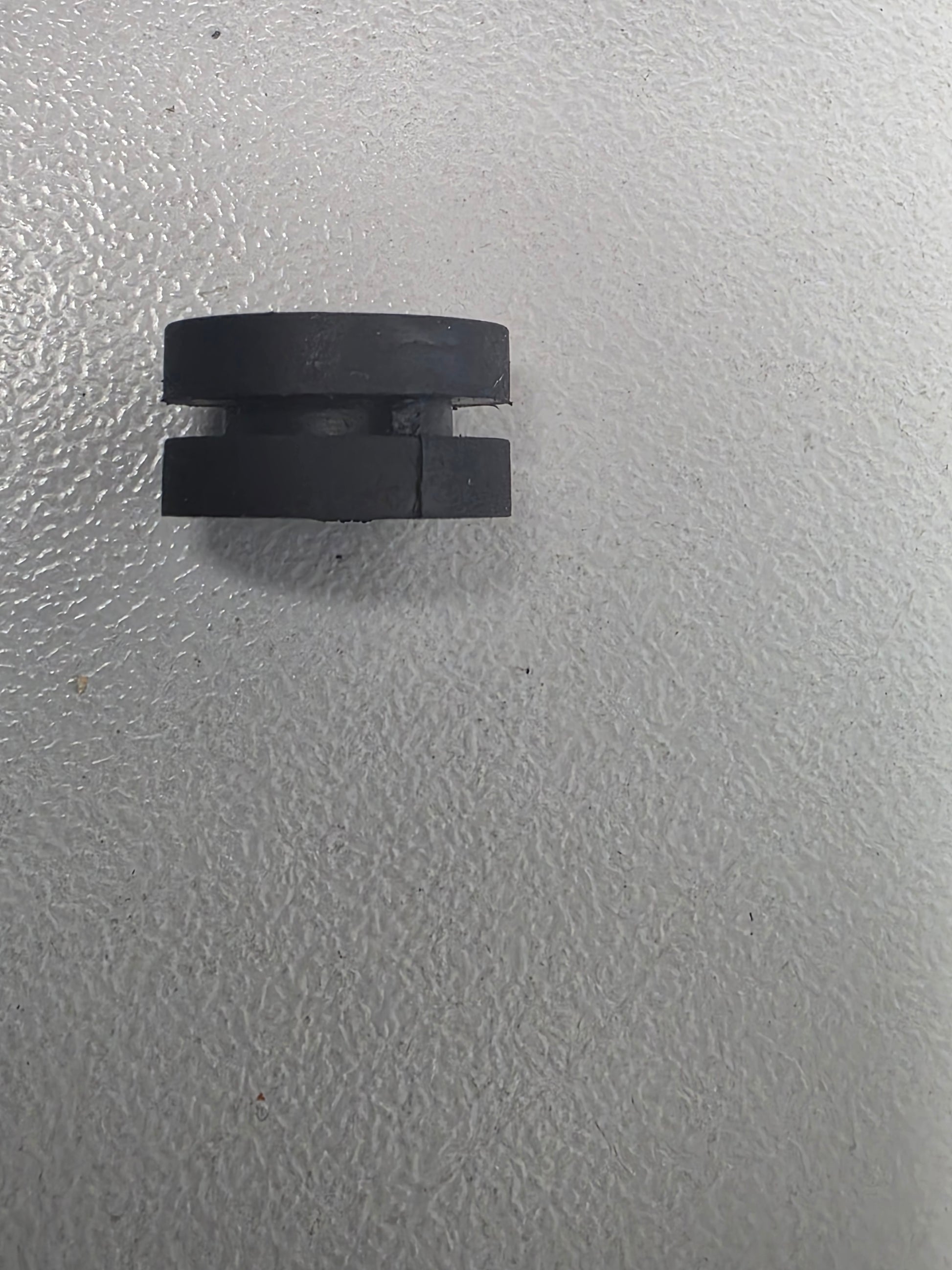

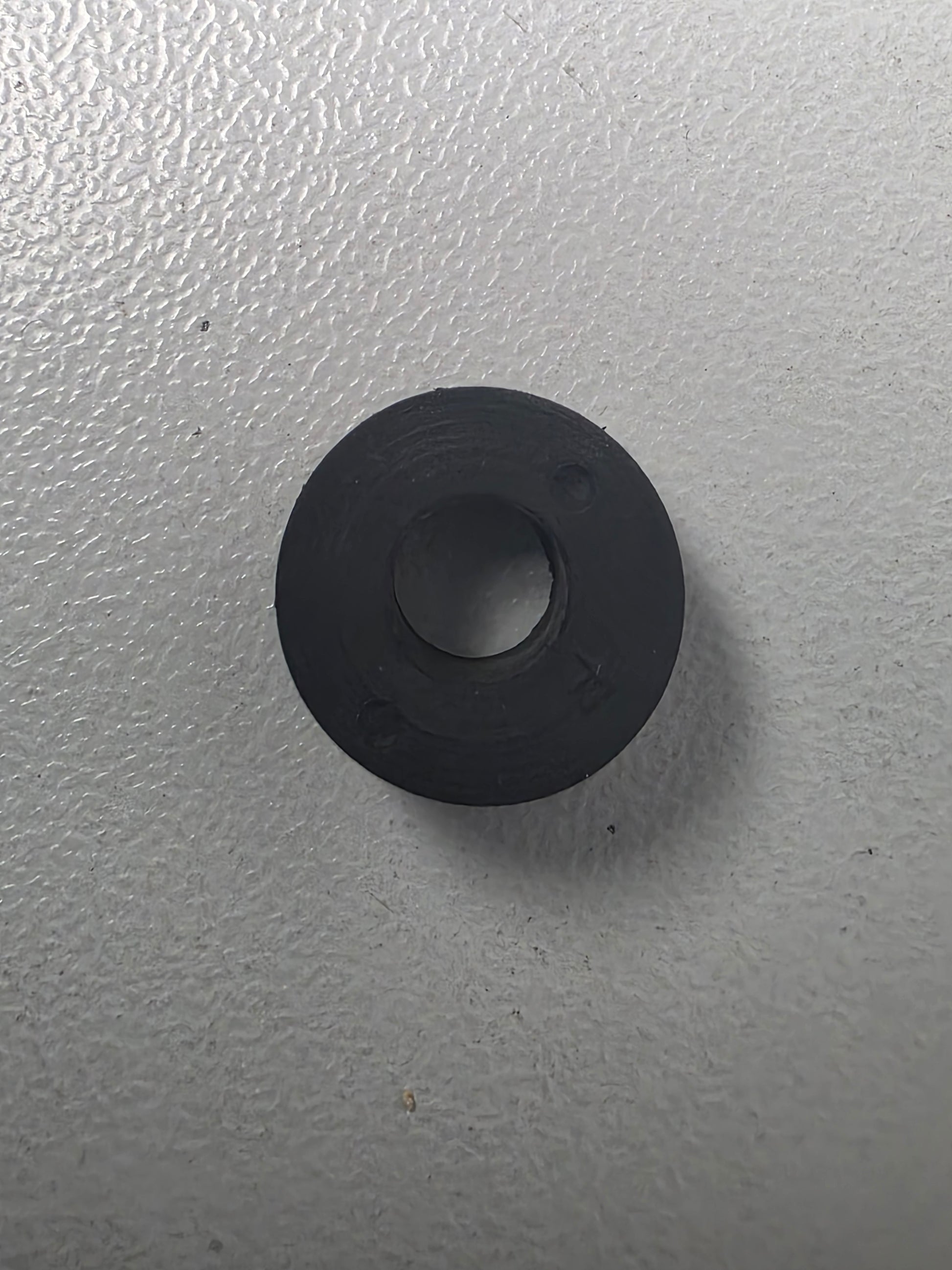

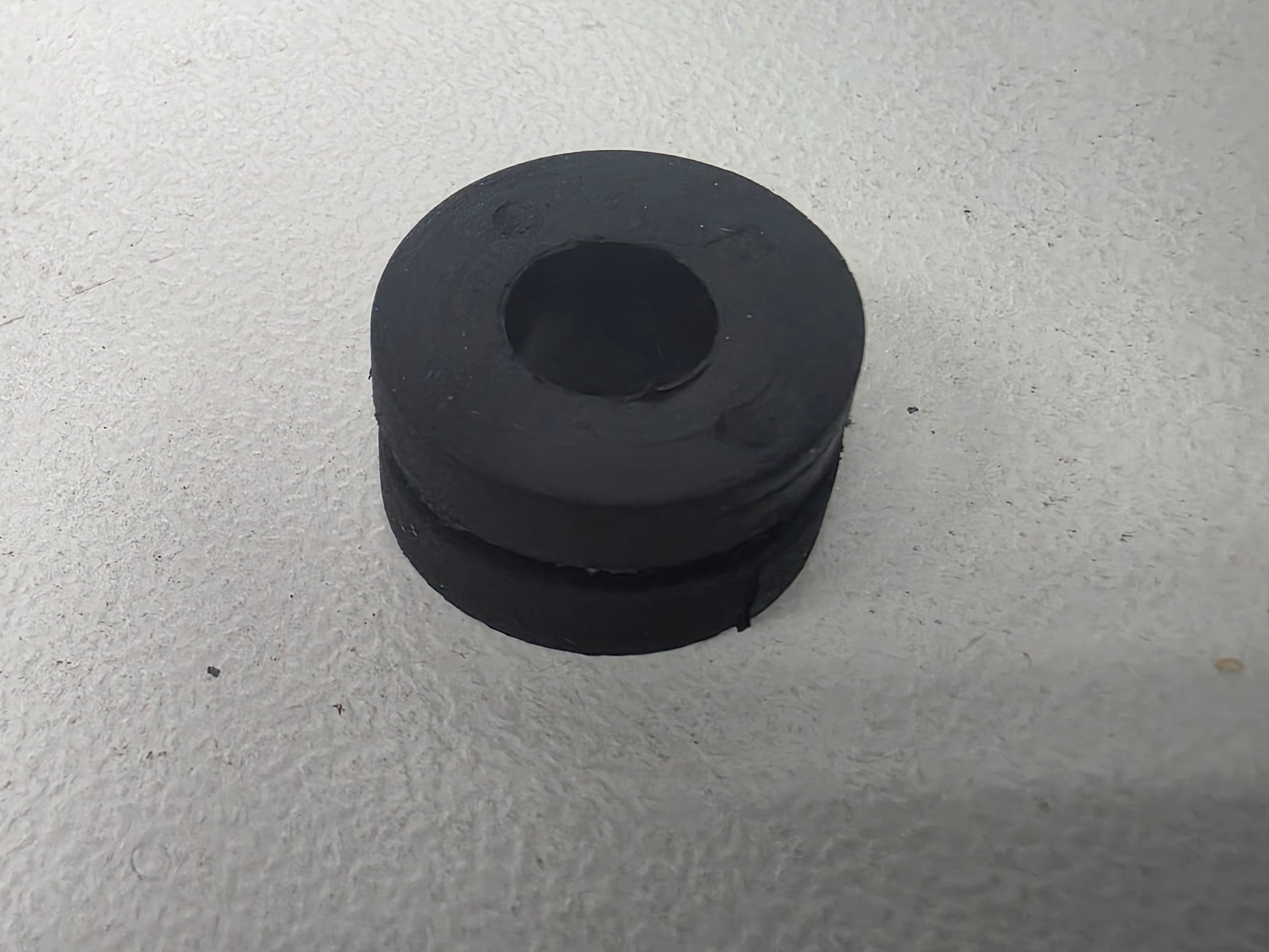

Genuine Suzuki Marine Fuel-Delivery Pipe Cushion - Part Number: 09320-08501

A genuine Suzuki rubber cushion measuring approximately 8 × 18 × 10mm. It supports and isolates the fuel-delivery pipe/injector assembly on selected inline-four EFI outboards, reducing vibration transfer and preventing metal-to-metal contact.

⚙️ Key Features

• Approximate dimensions 8 × 18 × 10mm
• Fuel- and heat-resistant rubber construction
• Supports the injector delivery-pipe assembly
• Reduces vibration and fretting
• Current replacement for an earlier cushion

🚤 Compatibility

Commonly used on

• Suzuki Marine four-stroke outboard fuel-delivery pipe cushion applications

Typically suits

• Engine models:
• DF150
• DF175
• DF200A and DF200AP where the 96J fuel rail is fitted
• HP Range: 150HP-200HP
• Engine Type: Inline four-cylinder EFI four-stroke outboard
• Year Range: Approximately 2006 onward

🔌 Function

Positions and cushions the fuel rail so injectors and pipe connections remain aligned while engine vibration is absorbed.

⚠️ Common Signs of Failure

• Fuel rail movement or rattling
• Rubber cushion becomes split or hardened
• Injector seals are repeatedly disturbed
• Chafing marks on the fuel pipe or bracket
• Abnormal vibration around the injector assembly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 09320-08501 → Supersedes 09320-08048

OEM / Related Numbers

• Suzuki: 09320-08501
• Suzuki earlier reference: 09320-08048

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine Suzuki Marine OEM part
• Brand new
• Supplied in original or equivalent packaging
