0982706 Aftermarket Bombardier Trim Motor | Sawley's Select Marine Parts

🔧 Product Description

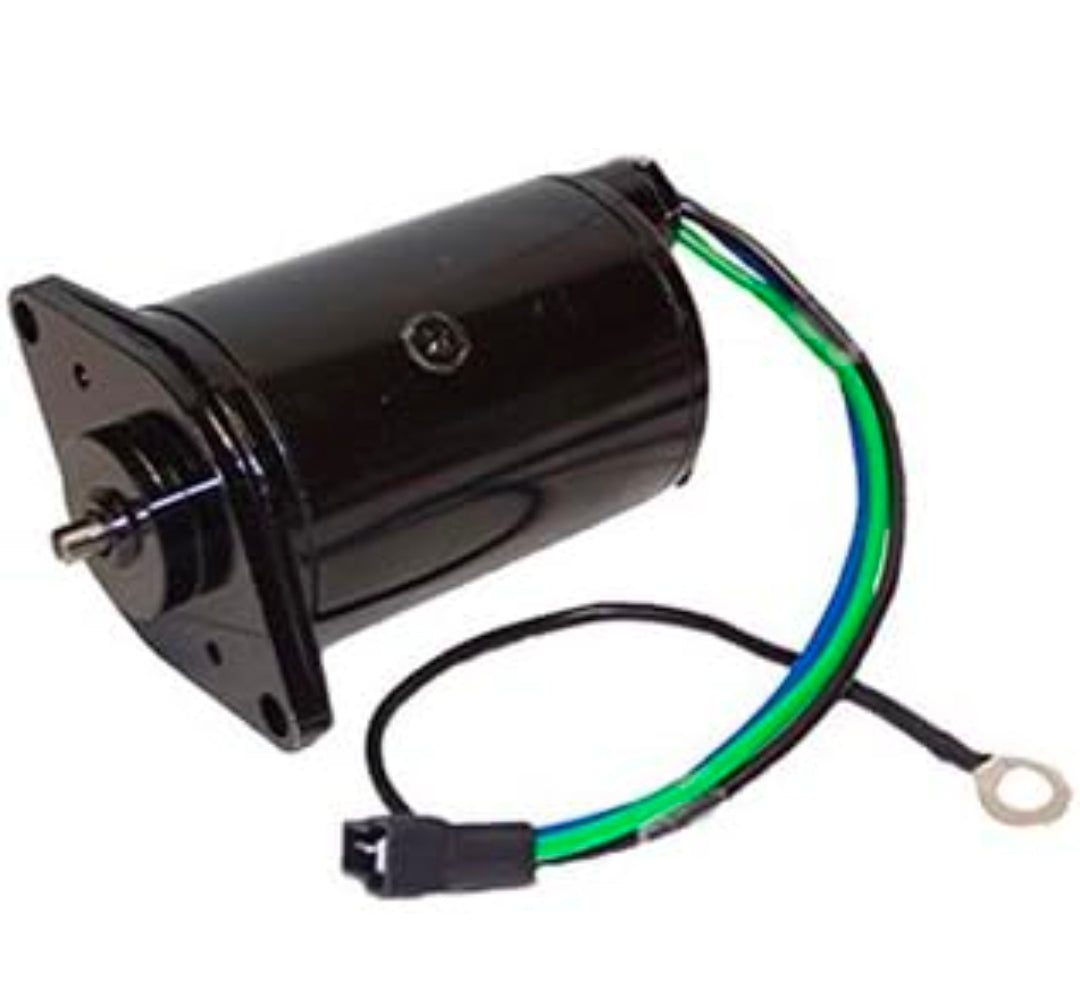

Aftermarket replacement Stringer Sterndrive Tilt Motor - Replaces Part Number: 0982706

New aftermarket flange-mounted tilt motor replacing OMC 0982706/982706 for 1980s Stringer sterndrives. It drives the mechanical/hydraulic Stringer tilt system and is not an outboard trim motor.

⚙️ Key Features

• Direct replacement for OMC 982706

• Flange-mounted Stringer-drive motor

• 12-volt reversible marine motor

• Matches mounting gasket 0909902

• Designed for 1982-1986 OMC Stringer installations

🧰 Kit / Assembly Contents

• 1 × Complete tilt-motor assembly - P/N 0982706

• 1 × Motor mounting gasket - OMC P/N 0909902, supplied separately unless included

• Electrical leads and mounting hardware - transferred or renewed separately

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0982706 / 982706 (OMC OEM tilt-motor reference)

OEM / Related Numbers:

• 0909902

• ARCO/aftermarket OMC Stringer flange-mount family

Aftermarket / Verified Equivalents:

• Sierra: 18-6753 application family

• ARCO Stringer flange-mount replacement

• Recmar: REC0982706

🚤 Compatibility

Commonly used on:

• OMC Stringer sterndrive tilt systems

Typically suits:

• Engine / Drive models:

• 2.5L and 3.0L inline-four engines

• 3.8L and 4.3L V6 engines

• 5.0L and 5.7L V8 engines

• 120HP-260HP 1981 applications and 1982-1986 Stringer model families using 982706

• HP / Drive Range: Approximately 120HP - 260HP

• System Type: OMC Stringer sterndrive tilt system

• Year Range: 1981 - 1986 on the documented application family

• Serial / Component Identification: Confirm flange mount and OMC 982706; 1970-1979 thru-bolt motors use a different assembly.

🔌 Function

The reversible 12-volt trim/tilt motor drives the hydraulic pump in both directions. The pump then raises or lowers the outboard or sterndrive while hydraulic valves hold the selected position.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Hydraulic pump works only when the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
