10-01010001 Aftermarket Parsun Power Trim Mount Pin | Sawley's Select Marine Parts

🔧 Product Description

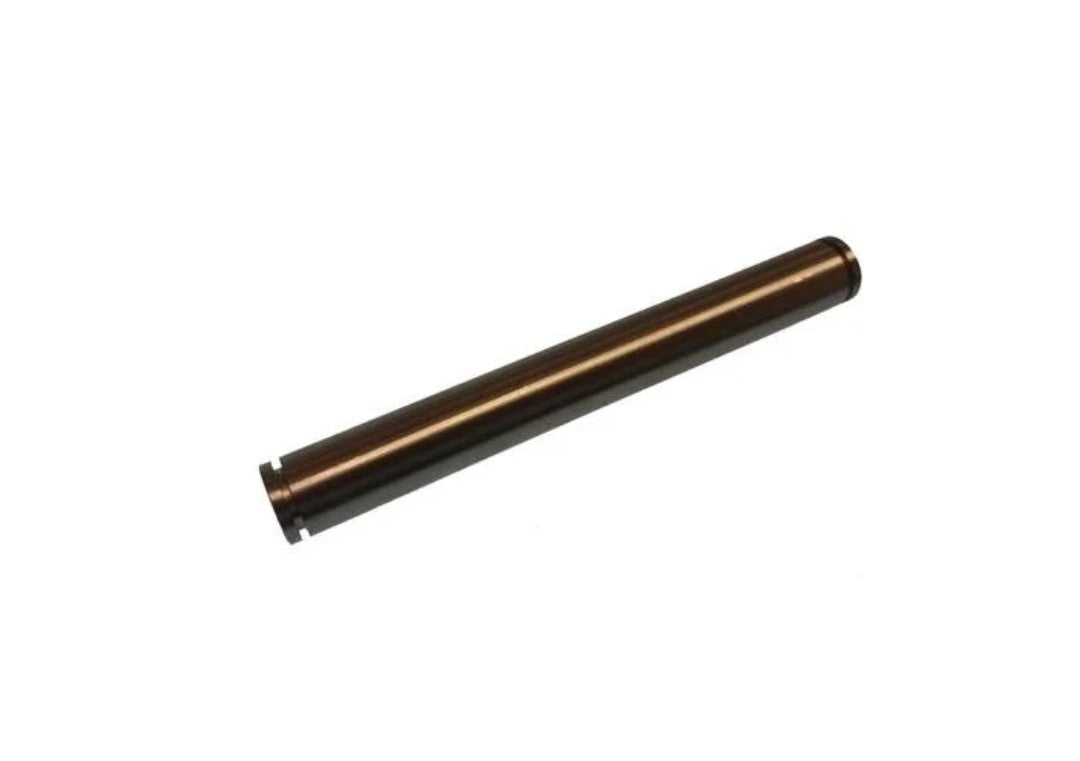

Aftermarket replacement Power Trim Mount Pin - Replaces Part Number: 10-01010001

New aftermarket power-trim mounting pin for Parsun F30/F40 bracket assemblies. The catalogue reference is E10-01010001 and it cross-references Yamaha 6K5-42725-00.

⚙️ Key Features

• Position-specific power-trim mounting pin

• Used in the Parsun F30/F40 bracket assembly

• Cross-references Yamaha 6K5-42725-00

• Retained with the specified circlip and bracket bushes

• Corrosion-resistant machined pin construction

🧰 Kit / Assembly Contents

• 1 × Power trim mounting pin - Parsun P/N E10-01010001 / catalogue P/N 10-01010001

• Retaining ring - GB/T896-9 / Yamaha 99080-09600, serviced separately

• Bush - Parsun E10-01010003, serviced separately

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• E10-01010001 ↔ Yamaha 6K5-42725-00

OEM / Related Numbers:

• E10-01010001

• 6K5-42725-00

• GB/T896-9

• 99080-09600

• E10-01010003

Aftermarket / Verified Equivalents:

• Parsun: E10-01010001

• Yamaha: 6K5-42725-00

🚤 Compatibility

Commonly used on:

• Parsun F30/F40 clamp-bracket and power-trim mounting systems

Typically suits:

• Engine / Drive models:

• Parsun F30 and F40 bracket assemblies using E10-01010001

• Yamaha-pattern installations using 6K5-42725-00 after dimensional confirmation

• HP / Drive Range: 30HP - 40HP

• System Type: Outboard clamp-bracket and power-trim pivot system

• Year Range: Model- and bracket-revision dependent

• Serial / Component Identification: Confirm pin length, diameter and retaining-ring groove before installation.

🔌 Function

The mounting or anchor pin locates the hydraulic trim unit or trim cylinders between the bracket components and provides the pivot point required for controlled movement.

Common signs of failure / service requirement:

• Excessive movement at the trim-unit or cylinder pivot

• Visible corrosion, scoring or bent pin

• Knocking noise when trimming or changing direction

• Bushings wear rapidly or cannot retain alignment

• Pin threads, retaining grooves or end faces are damaged

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
