101096 Anchor Swivel 6-8mm | Marine Anchoring Solutions

🔧 Product Description

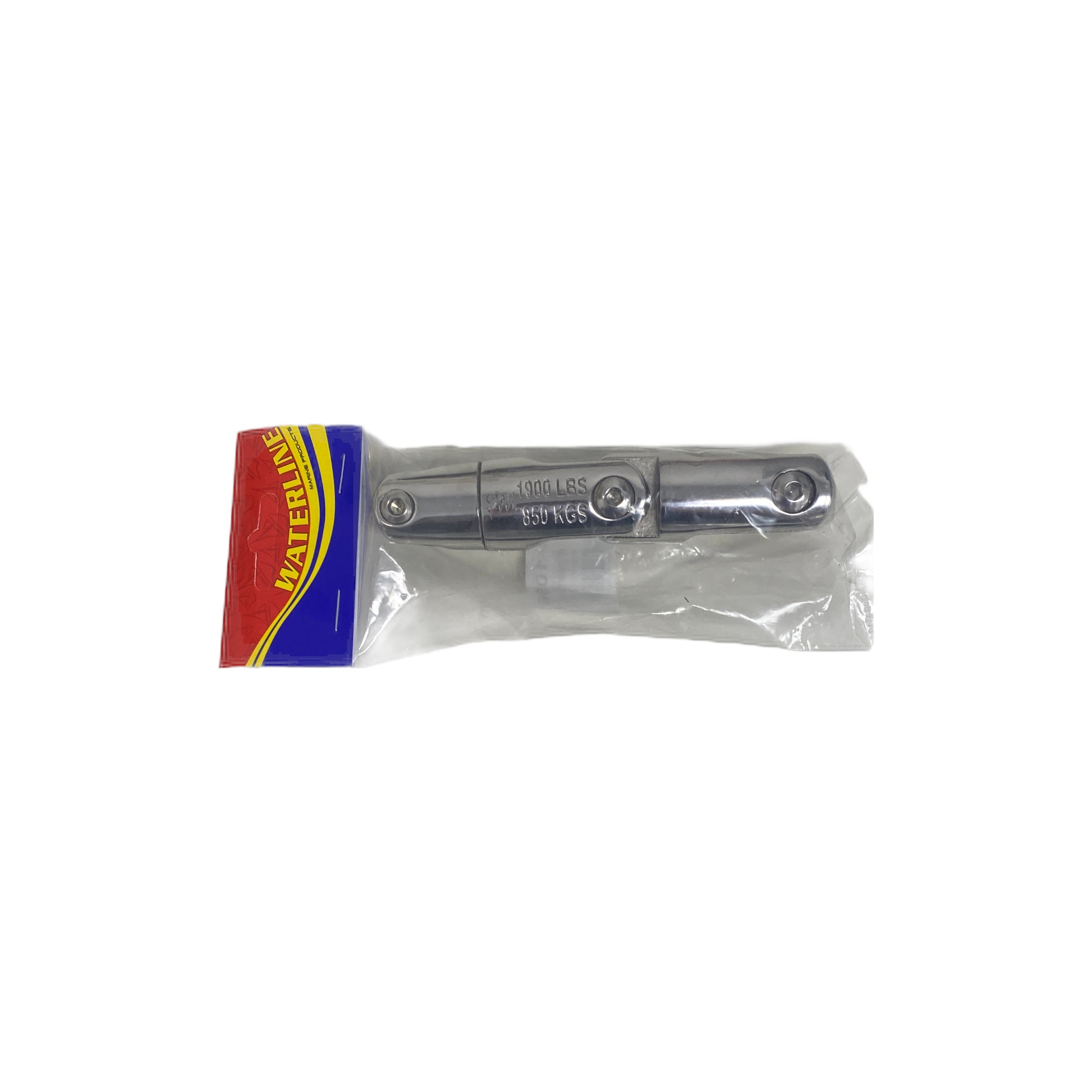

316 Stainless Steel Three-Way Anchor Swivel 6-8mm - Part Number: 101096

A compact three-way anchor swivel designed to connect an anchor shank to 6-8mm chain while allowing the rode to rotate freely. The articulated stainless-steel body helps reduce chain twist as the anchor is retrieved and assists the anchor in approaching the bow roller in a more consistent orientation.

⚙️ Key Features

• Marine-grade 316 stainless-steel construction
• Three-way articulated design permits rotation and side-to-side movement
• Helps reduce twisting and kinking in the anchor chain
• Smooth profile is suited to bow-roller retrieval systems
• Reusable connecting fitting for correctly matched anchor and chain hardware

📏 Specifications

• Recommended chain size: 6-8mm
• Material: 316 stainless steel
• Connection type: Articulated anchor-to-chain swivel
• Use with correctly sized shackles, pins and anchor attachment points

🔄 Cross Reference & Comparable Options

• Comparable product type: Lone Star Marine medium anchor swivel
• Comparable product type: Viper stainless-steel anchor swivel for 6-8mm chain
• Confirm pin diameter, safe working load and bow-roller clearance before substitution

⚓ Application & Selection

• Install between the anchor shank and the first chain link using the correct pin orientation
• Tighten and secure all threaded pins using the fitting manufacturer's recommended method
• Select the complete connection by the lowest rated component in the anchoring system
• Inspect regularly for bent pins, thread damage, crevice corrosion and excessive movement
• Anchor selection and rode sizing must also account for vessel displacement, windage, seabed and operating conditions

📦 Condition

• Brand new
• Supplied as one 6-8mm anchor swivel
• Supplied in original or equivalent packaging
