101098 Anchor Swivel 10-12mm | Marine Anchoring Solutions

🔧 Product Description

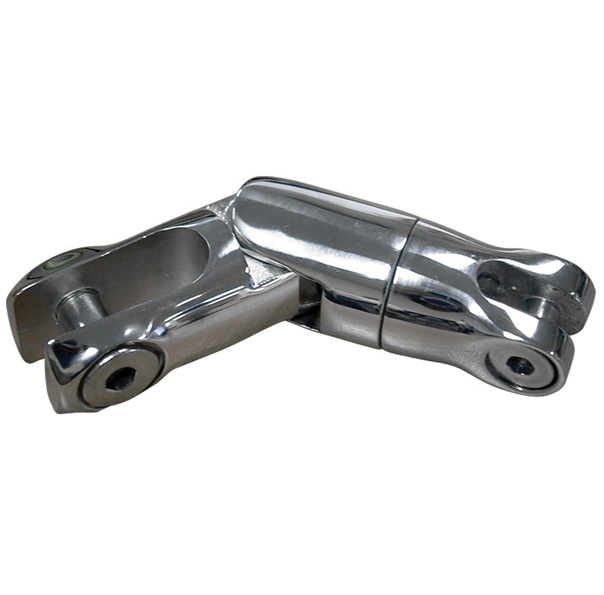

316 Stainless Steel Three-Way Anchor Swivel 10-12mm - Part Number: 101098

A heavy-duty three-way swivel for connecting larger anchors to 10-12mm chain. Its articulated 316 stainless-steel body allows the anchor to rotate during retrieval, helping remove twist from the rode and improving alignment as the anchor approaches the bow roller or bowsprit.

⚙️ Key Features

• Marine-grade 316 stainless-steel construction
• Three-axis articulation reduces chain twist
• Designed for larger anchor and chain assemblies
• Rounded body assists smooth bow-roller retrieval
• Suitable for correctly rated manual and powered anchoring systems

📏 Specifications

• Recommended chain size: 10-12mm
• Material: 316 stainless steel
• Connection type: Articulated anchor-to-chain swivel
• All connecting pins and shackles must be matched to the rode load

🔄 Cross Reference & Comparable Options

• Comparable product type: Heavy-duty Lone Star Marine anchor swivel
• Comparable product type: Viper deluxe stainless-steel swivel for larger chain
• Verify dimensions, rated capacity and windlass/bow-roller clearance before substitution

⚓ Application & Selection

• Connect directly between the anchor shank and chain using correctly sized attachment hardware
• Secure threaded pins against unintended loosening
• Do not allow the swivel body to carry a side load beyond its intended articulation
• Inspect after grounding, snatching or retrieval of a heavily fouled anchor
• Size the entire anchoring system for vessel displacement and expected weather rather than chain diameter alone

📦 Condition

• Brand new
• Supplied as one 10-12mm anchor swivel
• Supplied in original or equivalent packaging
