1017 Dunbier 13mm Safety Chain and HammerLock | Marine Trailer Part
1017 Dunbier 13mm Safety Chain and HammerLock | Marine Trailer Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

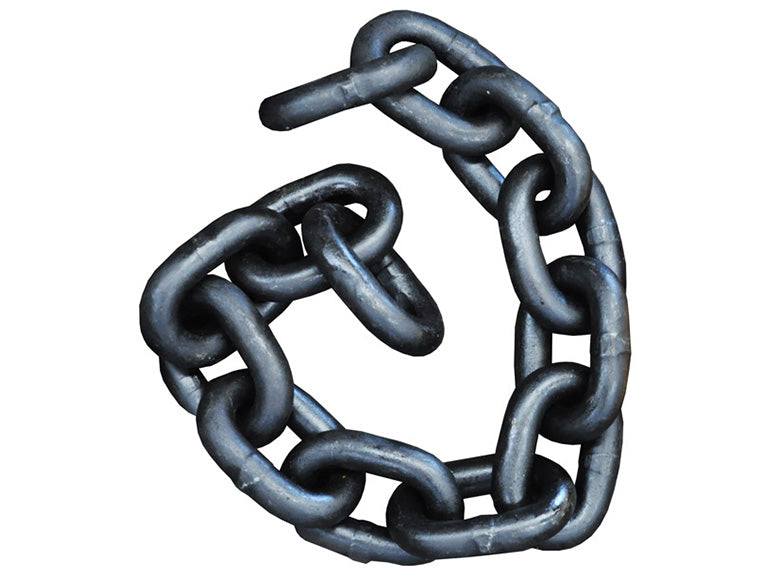

Dunbier Heavy-Duty Herc-Alloy Safety Chain with Hammerlock – Part Number: 1017
A heavy-duty 13mm Herc-Alloy trailer safety chain assembly supplied with a compatible Hammerlock connecting link. Dunbier catalogues specify a 13-link chain approximately 500mm long and require two assemblies for trailers in the 3.5–4.5 tonne range, subject to current vehicle standards and the component's marked capacity.
⚙️ Key Features
- 13mm high-strength Herc-Alloy chain
- Thirteen-link assembly
- Supplied with Hammerlock connecting link
- Heavy-trailer safety-chain application
- Galvanised or protective finish for trailer service, depending current supply
📏 Specifications
- Chain diameter: 13mm
- Link quantity: 13
- Approximate chain length: 500mm
- Quantity required by Dunbier for 3.5–4.5 tonne applications: Two
- Final capacity must be confirmed from the chain and connecting-link markings
🔄 Cross Reference & Related Parts
- Dunbier: 1017
- Related lighter safety chains: Dunbier 1018, 1019, 1020, 1021 and 1022
- Comparable product: Grade-T/Herc-Alloy heavy-trailer chain assembly with certified Hammerlock and equivalent marked capacity
🚤 Trailer Compatibility & Application
- Intended for heavy trailers above the normal AS 4177.4 light-trailer chain range
- Both chains must be independently attached to substantial trailer and tow-vehicle points
- Connection hardware must equal or exceed the chain rating
🔌 Function
Provides a secondary connection intended to retain and control the trailer if the primary coupling disconnects or fails.
⚠️ Common Signs of Failure
- Bent, stretched, cracked or heavily worn links
- Hammerlock pin or retaining sleeve is damaged
- Deep corrosion or loss of chain diameter
- Heat, welding or grinding damage
- Capacity markings are missing or unreadable
🛠️ Installation & Safety
- Heavy-trailer chain installation must comply with current road and trailer regulations
- Do not weld directly to heat-treated alloy chain
- Fit the Hammerlock exactly as specified, with the correct load pin and retainer
- Cross or arrange chains as required to support and control the drawbar
- Never use a damaged or unmarked assembly
📦 Condition
- Brand new Dunbier Marine Products trailer component
- Supplied as one 13mm safety chain with Hammerlock
- Supplied in original or equivalent packaging
