🔧 Product Description

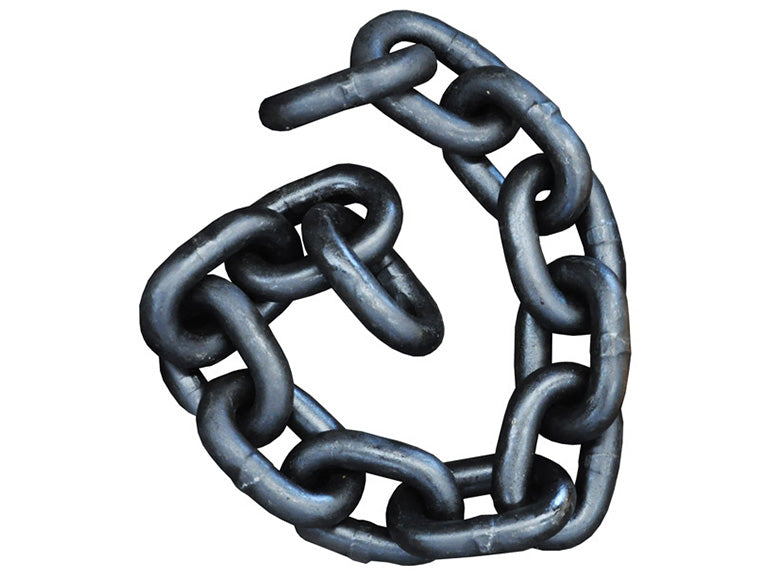

Dunbier Galvanised Safety Chain 13mm × 620mm – AS4177-35 – Part Number: 1020

A 13mm galvanised trailer safety chain measuring approximately 620mm with 13 links. This chain is intended for attachment using the trailer manufacturer's approved weld-on or engineered mounting method. The AS4177-35 marking identifies the catalogue capacity designation; the actual component marking must be checked before use.

⚙️ Key Features

  • Nominal chain material diameter: 13mm
  • Approximate length: 620mm
  • Link count: 13 links
  • Galvanised finish
  • Purpose-built trailer safety-chain component
  • Designed for an approved permanent trailer attachment

📏 Specifications

  • Chain diameter: 13mm
  • Length: 620mm
  • Links: 13 links
  • Attachment style: weld-on or manufacturer-specified attachment
  • Capacity: Use only to the permanent marked trailer-chain rating

🔄 Cross Reference & Related Parts

  • Dunbier: 1020
  • Safety-chain requirements up to 3500kg ATM are covered by AS 4177.4
  • Related Dunbier chain sizes: 1018, 1019, 1020, 1021 and 1022
  • Comparable products must be marked and certified for the required trailer ATM

🚤 Trailer Compatibility & Application

  • Suitable for trailers whose ATM does not exceed the chain's marked designation
  • Select the number of chains and connection devices to current jurisdictional requirements
  • The trailer and towbar attachment points must be at least as strong as the chain

🔌 Function

Retains and helps control the trailer if the main coupling disconnects, reducing the risk of complete separation.

⚠️ Common Signs of Failure

  • Link wear, elongation, bending or cracking
  • Heavy rust or loss of chain diameter
  • Damaged weld or loose bolt-on attachment
  • Chain has been dragged on the road
  • Rating or manufacturer markings cannot be identified

🛠️ Installation & Safety

  • Use only the approved attachment method for the specific trailer drawbar
  • Bolt-on versions require a reinforced attachment point and correctly tightened locking hardware
  • Welding should be performed only by a competent person using the specified attachment link or tab
  • Do not weld, heat or modify a rated chain link unless expressly permitted
  • Connect with correctly rated shackles or approved devices and inspect before every trip

📦 Condition

  • Brand new Dunbier Marine Products trailer component
  • Supplied as one 13mm × 620mm safety chain
  • Supplied in original or equivalent packaging
