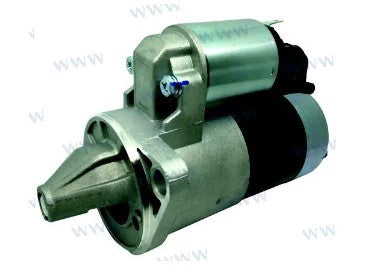

104211-77011 Aftermarket Yanmar YSE YSM Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

A compact Hitachi-pattern starter for Yanmar SB, SVE, YSE, YSB and YSM single-cylinder marine diesels. It supersedes 104211-77010 and cross-references to Hitachi S114-134 and S114-194.

⚙️ Key Features

• Marine-rated 12-volt starter construction

• Pinion, rotation and mounting pattern matched to the listed OEM family

• High-torque cranking output for reliable cold and warm starting

• Corrosion-resistant terminals and marine-duty internal components

• Direct replacement when the original OEM starter number matches

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 104211-77011 → Supersedes 104211-77010

• 104211-77010 (earlier Yanmar starter reference)

OEM / Related Numbers:

• 104211-77011

• 104211-77010

• Hitachi S114-134

• Hitachi S114-194

• Lester 16191

Aftermarket / Verified Equivalents:

• Recmar: REC104211-77011

• DB Electrical / J&N: 410-44051

• API Marine: 17009

• Arrowhead: SHI0084

• EMP: 4-6930

🚤 Compatibility

Commonly used on:

• Yanmar small single-cylinder marine diesel starting systems

Typically suits:

• Engine models:

• Yanmar SB8 and SB12

• Yanmar SVE8 and SVE12

• Yanmar YSE8 and YSE12

• Yanmar YSB8 and YSB12

• Yanmar YSM8 and YSM12

• HP Range: Approximately 8HP-12HP

• Engine Type: Single-cylinder naturally aspirated marine diesel

• Year Range: Approximately 1974-1980 for the principal verified engine families

• Voltage: 12V

• Rotation: Clockwise viewed from the drive end

• Pinion: 9-tooth

• Original Manufacturer Pattern: Hitachi

🔌 Function

The starter motor converts battery power into mechanical cranking torque. When the solenoid is energised, the pinion engages the flywheel ring gear and rotates the crankshaft until the engine starts and the pinion disengages.

Common signs of failure:

• Starter clicks but does not crank the engine

• Slow or laboured cranking with a fully charged battery

• Pinion spins without engaging the flywheel

• Grinding, clashing or delayed disengagement at the ring gear

• Intermittent operation caused by worn brushes, armature or solenoid contacts

• Excessive heat, burnt odour or high current draw

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
