1046 Dunbier Brake Coupling Reverse Stop and Pin Clamshell Pack | Marine Trailer Part

🔧 Product Description

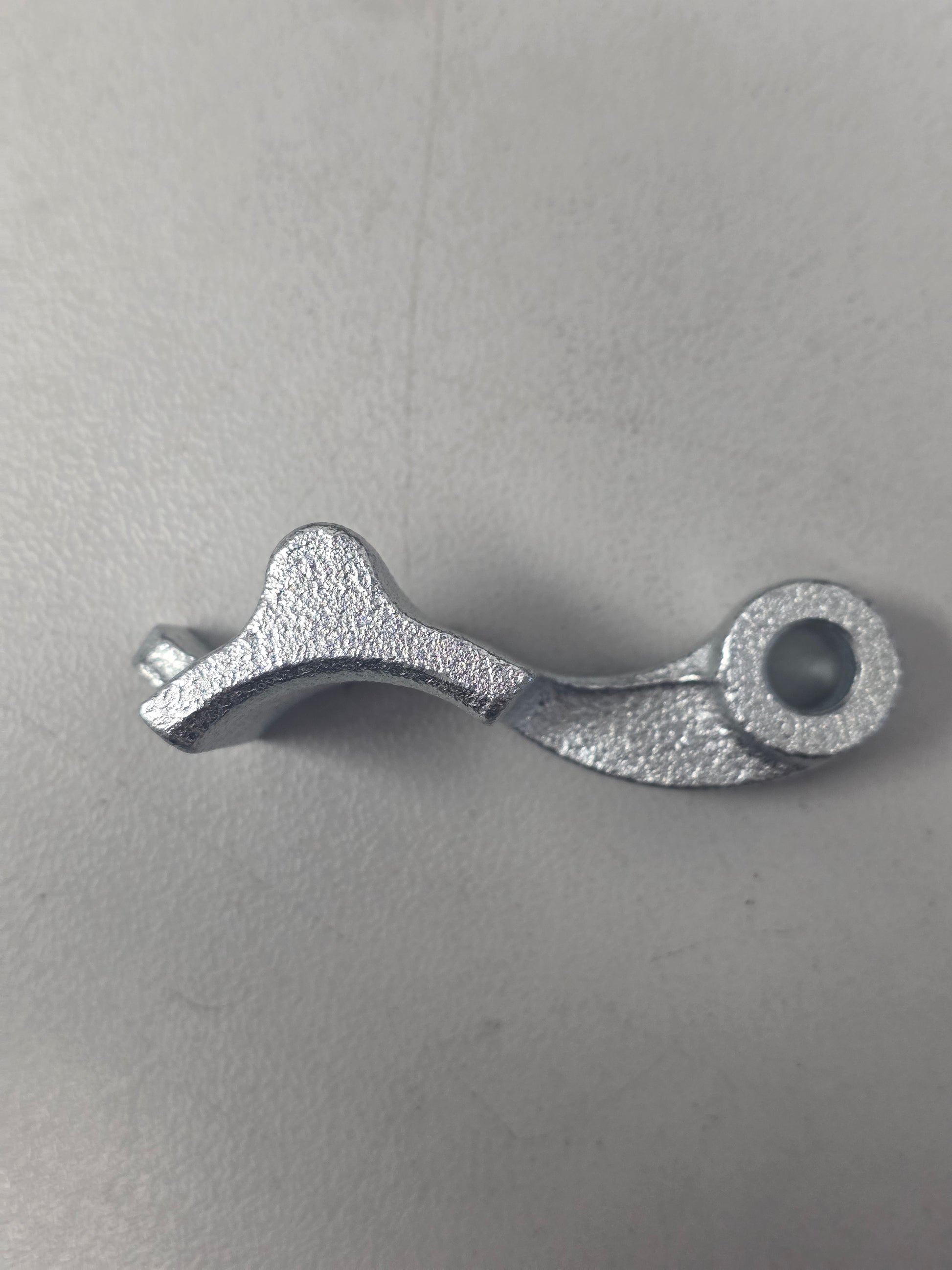

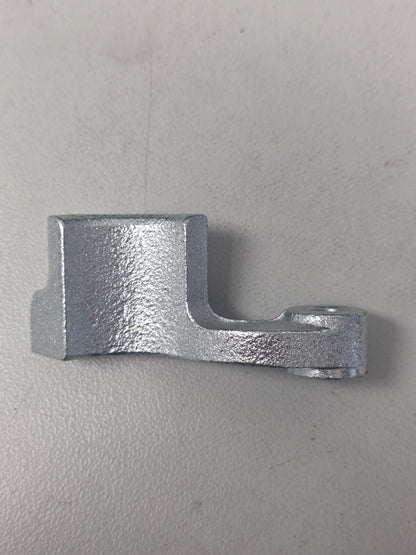

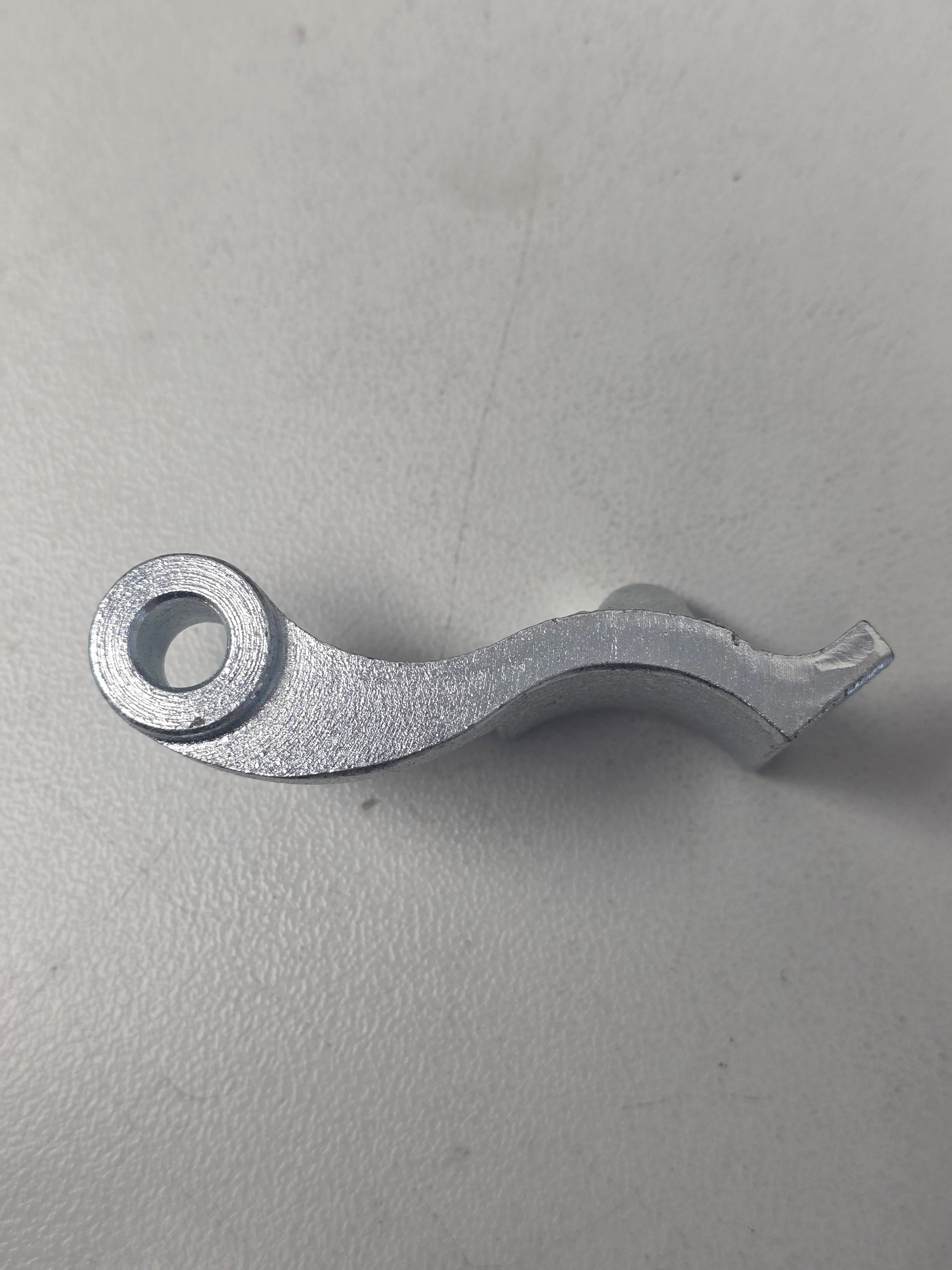

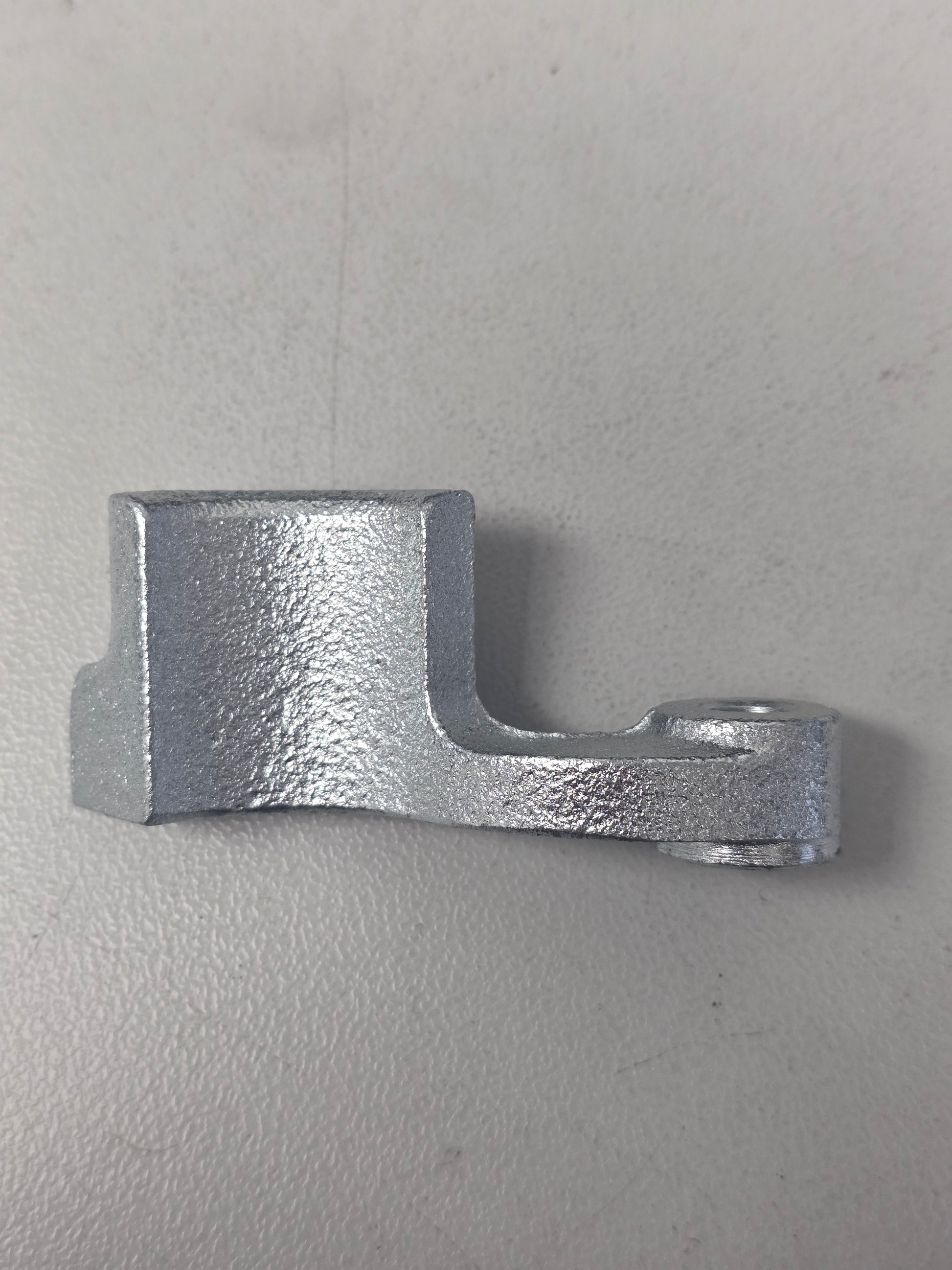

Dunbier Brake-Coupling Reverse Stop and Pin - Part Number: 1046

The underlying Dunbier reverse-stop and pin assembly used with selected hydraulic and mechanical override couplings. This component is the bulk/reference version associated with the 1042C clamshell-pack listing and prevents the coupling slide from operating the brakes during controlled reversing.

⚙️ Key Features

• Coupling reverse-stop component

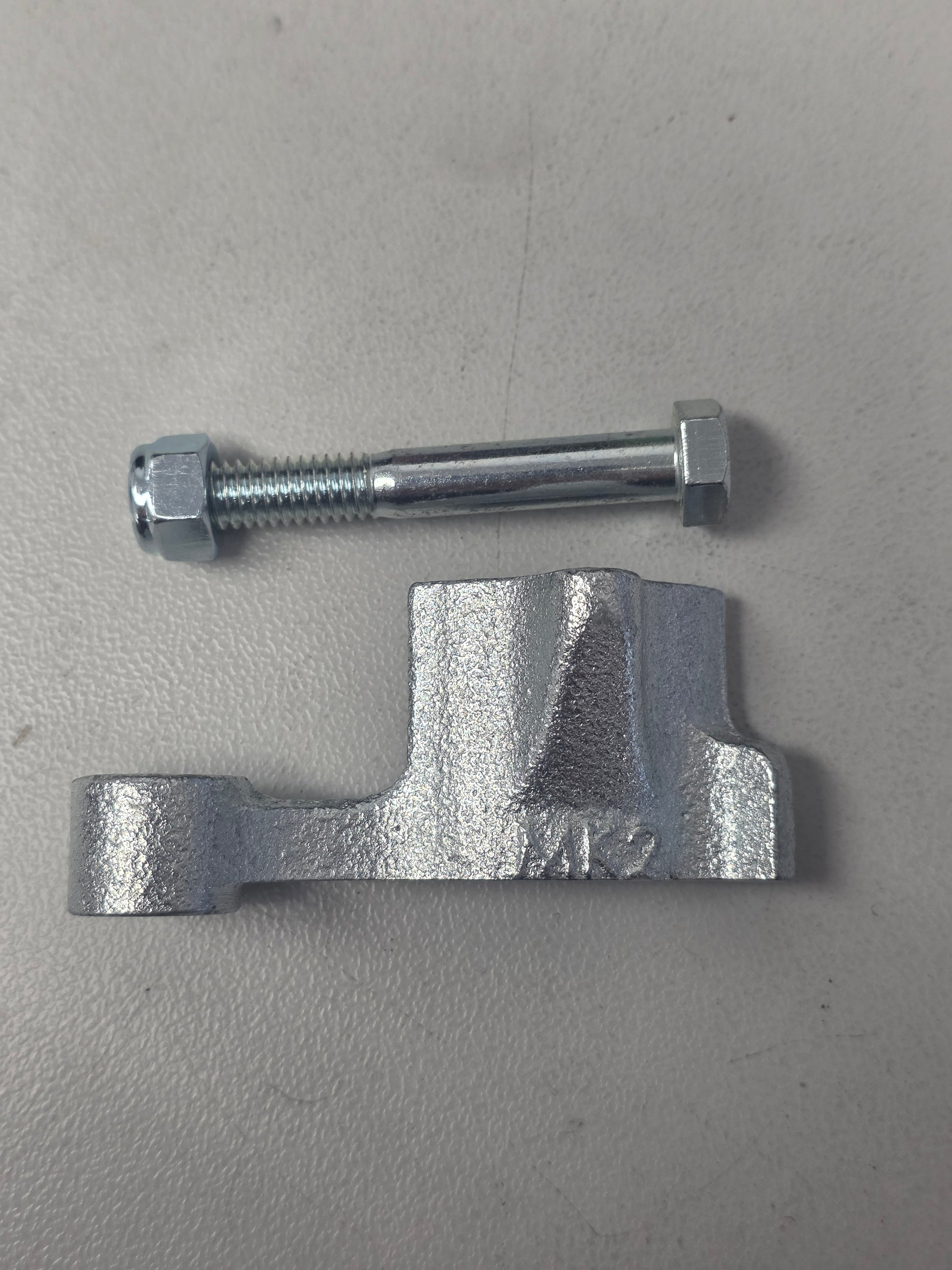

• Includes matching retaining pin as supplied

• Fits selected Dunbier override couplings

• Reusable removable design

• Bulk/component reference corresponding with packaged 1042C

📏 Specifications

• Dunbier component reference: 1046

• Packaged reference: 1042C

• Related Mackay reference: H3343

🔄 Cross Reference & Related Parts

• Dunbier: 1046

• Clamshell packaged version: Dunbier 1042C

• Used with selected 1030, 1032 and 1041 couplings

🚤 Trailer Compatibility & Application

• Suitable only for couplings with the matching reverse-stop slot or hole

• Check whether the installed brakes are free-backing before using a manual stop

• The stop is not a substitute for correct brake adjustment

🔌 Function

Restricts coupling compression while reversing so overrun force does not apply the trailer brakes.

Common signs of wear or replacement:

• Stop or pin is bent

• Pin no longer retains positively

• Stop falls out during manoeuvring

• Coupling remains locked during forward towing

• Heavy wear or corrosion changes the fit

🛠️ Installation & Safety

• Install only while stationary and secure the trailer against movement

• Remove or disengage before forward travel as instructed

• Do not replace the pin with unsuitable hardware

• Store the stop in a secure location when not in use

• Check normal brake actuation after removing the stop

📦 Condition

• Brand new Dunbier Marine Products trailer component

• Supplied as one reverse stop and pin assembly

• Supplied in original or equivalent packaging
