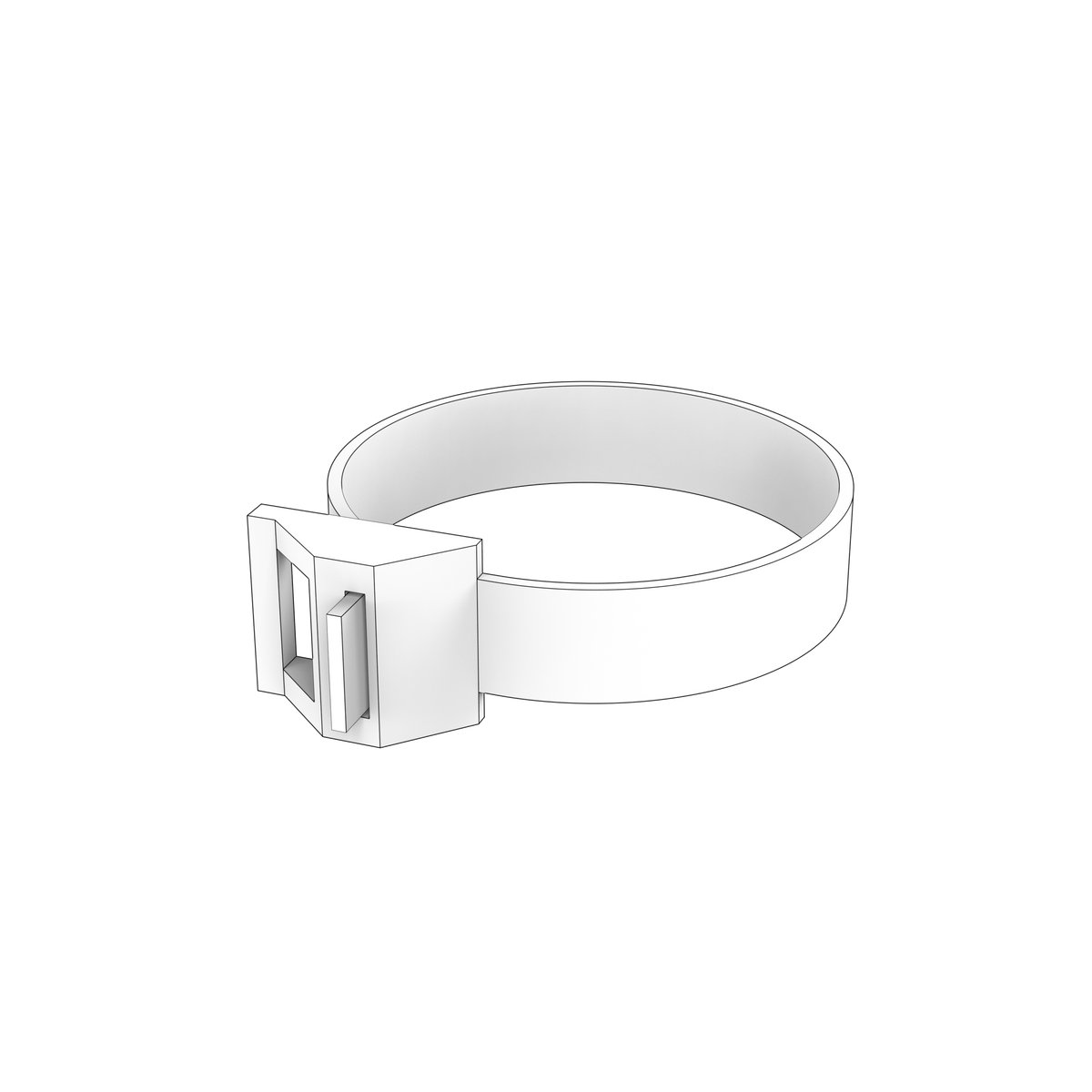

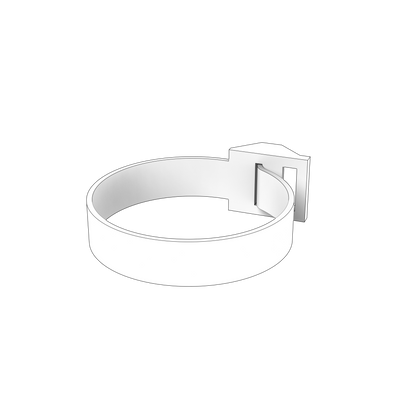

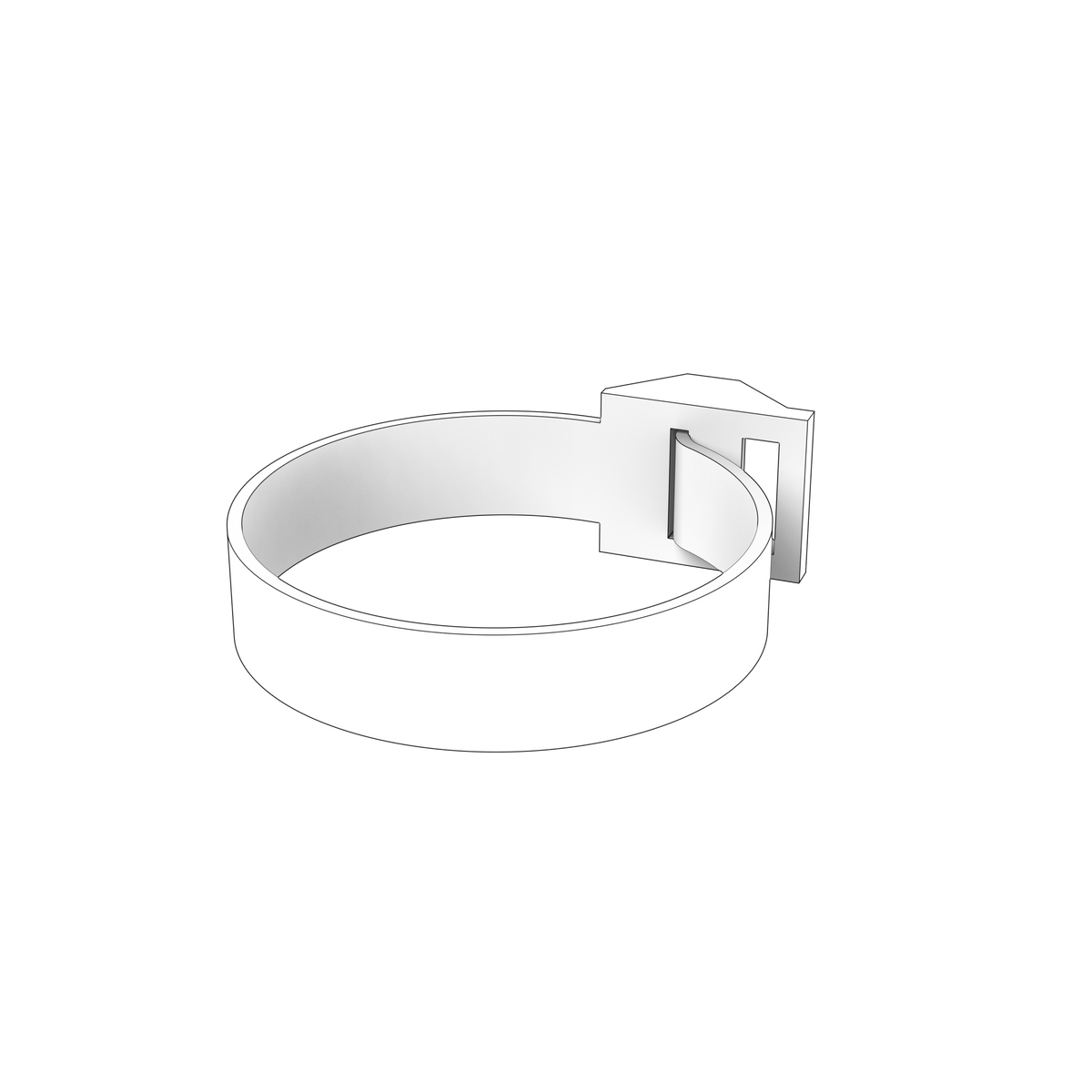

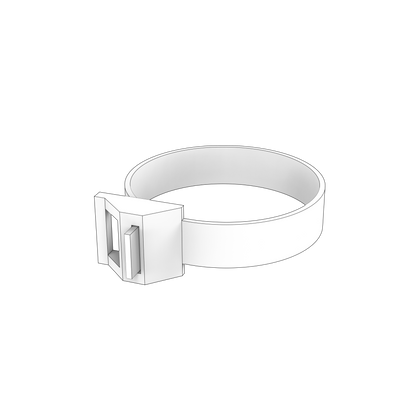

1075407 Cable Tie | Genuine Volvo Penta Part

🔧 Product Description

This is a genuine Volvo Penta cable tie in the 100 mm diameter size (D=100mm), used to bundle and secure wiring harnesses, hoses and fuel lines against engine structure and brackets. The 100 mm bundle capacity is what separates this tie from other ties sharing the same name, so match the size before ordering. It supersedes earlier part number 3831347 and is fitted across a very wide span of Volvo Penta marine diesel engines and IPS installations.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 13-435 HP
• Year Range: Approximately 2000s onward

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1075407
• Sized for a 100 mm bundle diameter (D=100mm)
• Net weight approximately 0.014 kg
• Supersedes previous part number 3831347
• Fits D1, D2, D3, D4, D6, D8, D9, D11, D12 and D13 series marine diesel engines and IPS drive installations
• System type: Cable, hose or guard retention around connecting shafts

🔌 Function

Secures and routes wiring harnesses, hoses and lines so they stay clamped in position and clear of moving or hot components. Correct retention prevents movement, chafing and vibration damage to the items it holds.

⚠️ Common Signs of Failure

• Tie has become brittle or cracked from engine bay heat and age
• Locking head no longer holds tension, leaving the bundle loose
• Harness or hose has moved and shows chafing or rub marks where the tie failed
• Tie has snapped or is missing entirely, leaving lines unsupported
• Visible discolouration or surface crazing indicating heat or UV degradation

🛠️ Service Notes

• Use ties to hold a harness on its intended route, not to carry it — support the run properly and let the tie simply locate it
• Snug, not crushing: a tie pulled hard into a loom deforms the insulation and becomes a chafe point itself
• Keep ties, and the harness they hold, clear of hot surfaces, sharp edges and anything that moves through its full range of travel
• Cut the tail off flush and square, as a projecting tail is sharp enough to cut a hand or a neighbouring cable
• A tie that has been cut or over-stretched is finished; fit a new one rather than trying to reuse it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1075407 → Supersedes 3831347 → Supersedes 3830769

OEM / Related Numbers

• 3831347 earlier number superseded by this part
• 3830769 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-C MH, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C4-B MG, D13C2-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C8-B MP, D13C9-A MP
• Volvo Penta D6-330A-D, D6-330D-E, D6-370D-E, D6-330A-F, D6-370A-F, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-280I-D, D6-310I-D, D6-435I-D, D6-280I-E, D6-310I-E, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-D, D6-310D-E, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-E, D6-400A-F, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E
• Volvo Penta D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-D, D4-300D-E, D4-300D-F, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-225A-D, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F
• Volvo Penta D3-220I-G, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-D, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP, D11B1-A MP
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A1-A MP, D8A3-A MP, D8A4-A MP, D8A7-A MP
• Volvo Penta D2-40F, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta D1-30F, D1-13F, D1-20F
• Volvo Penta IPS2-C, IPS2-A, IPS2-B
• Volvo Penta D9A2H, D9A2K
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS20-D
• Volvo Penta IPS30-D
