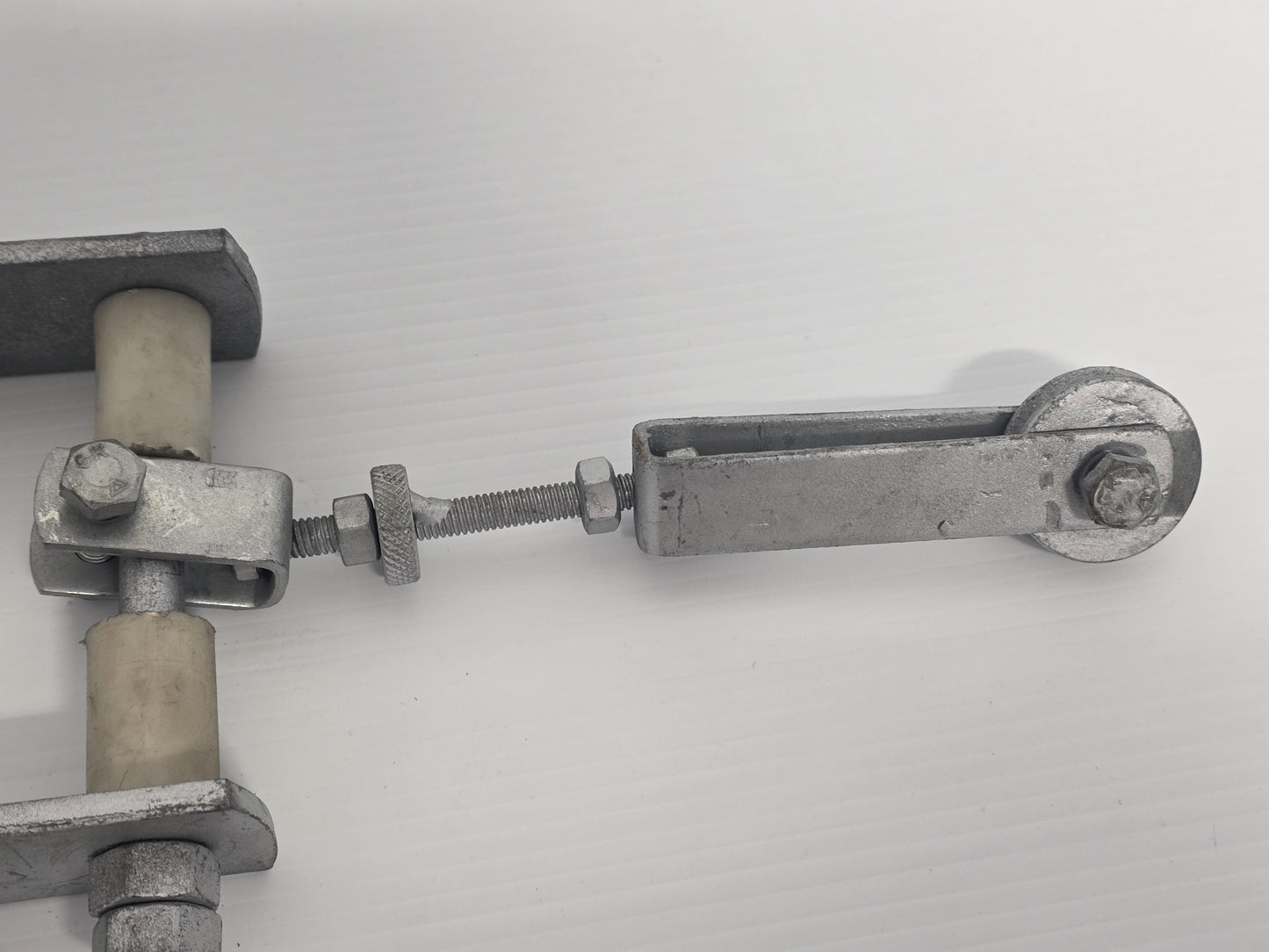

1093 Dunbier H3271K Mackay Hand Brake Lever Including Adjuster, Bolts and Hardware 100mm | Marine Trailer Part
1093 Dunbier H3271K Mackay Hand Brake Lever Including Adjuster, Bolts and Hardware 100mm | Marine Trailer Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

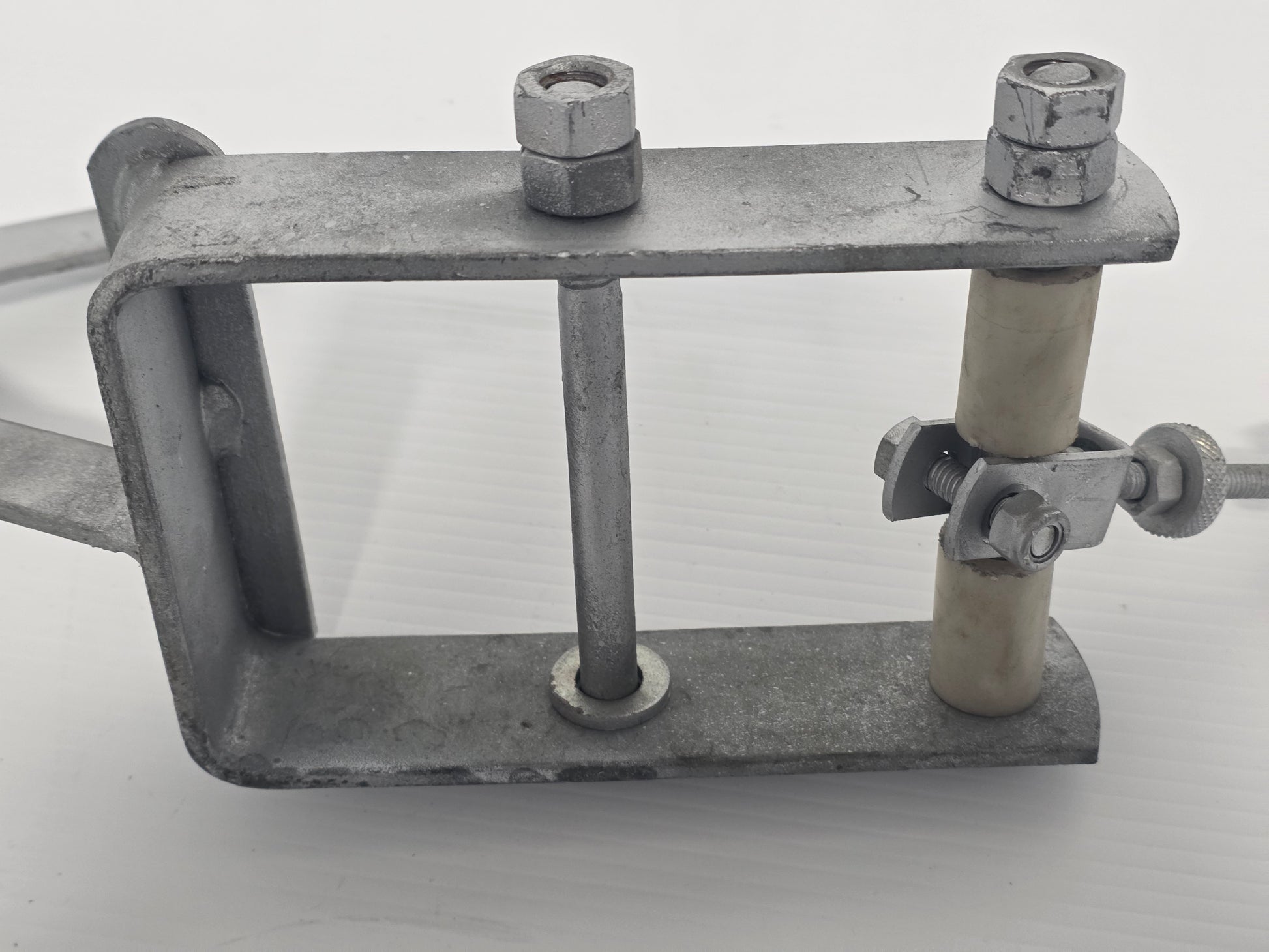

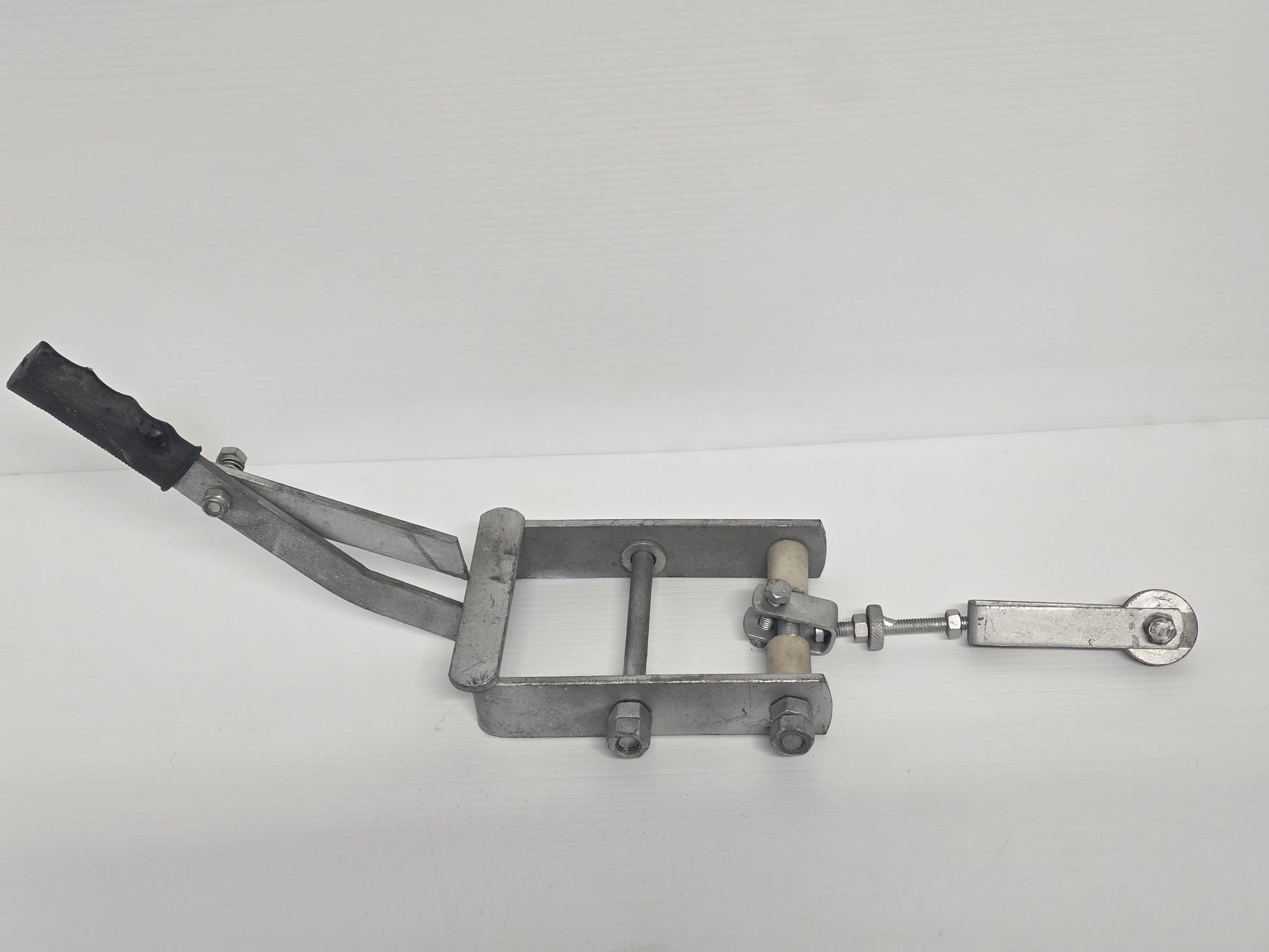

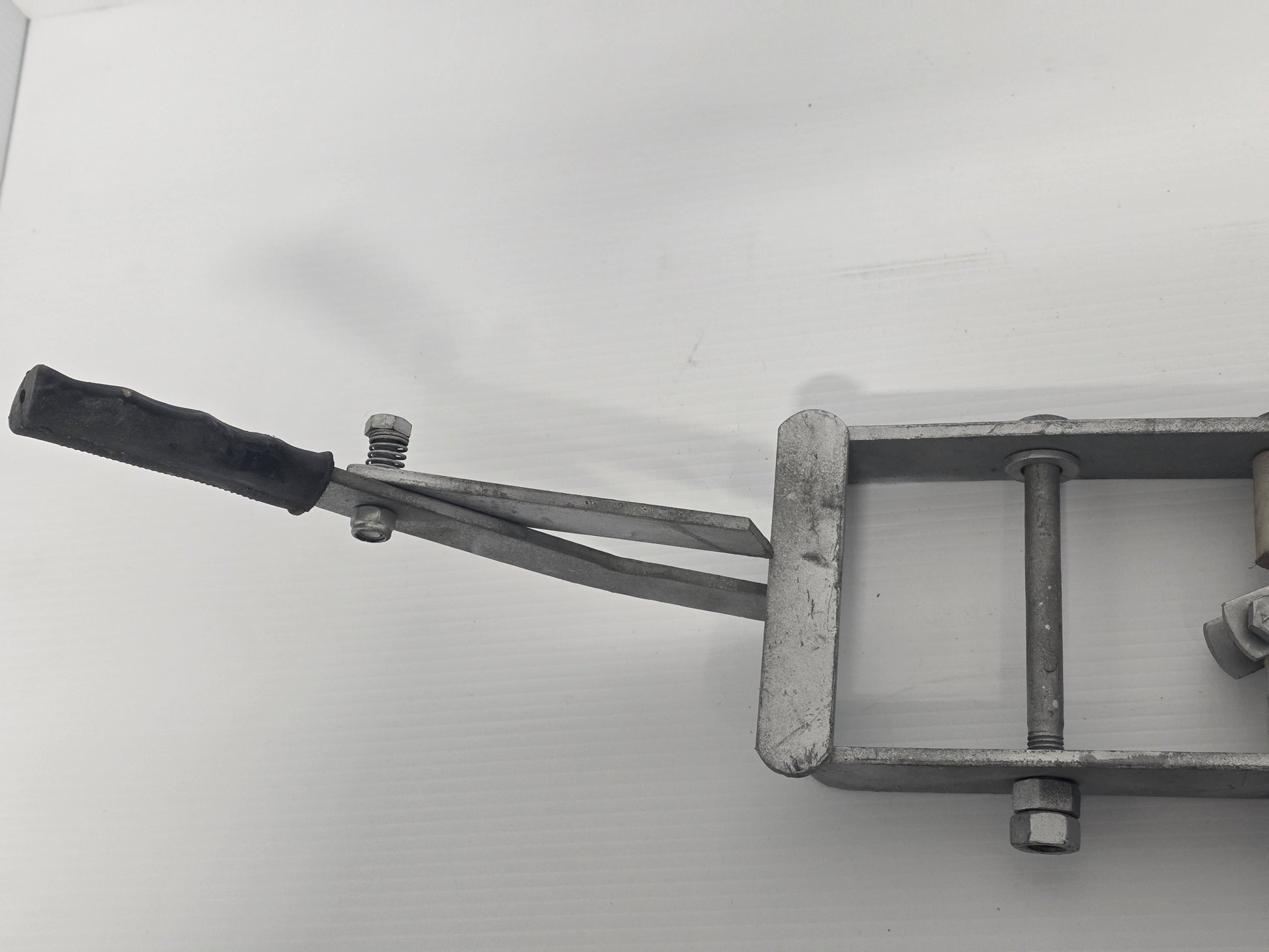

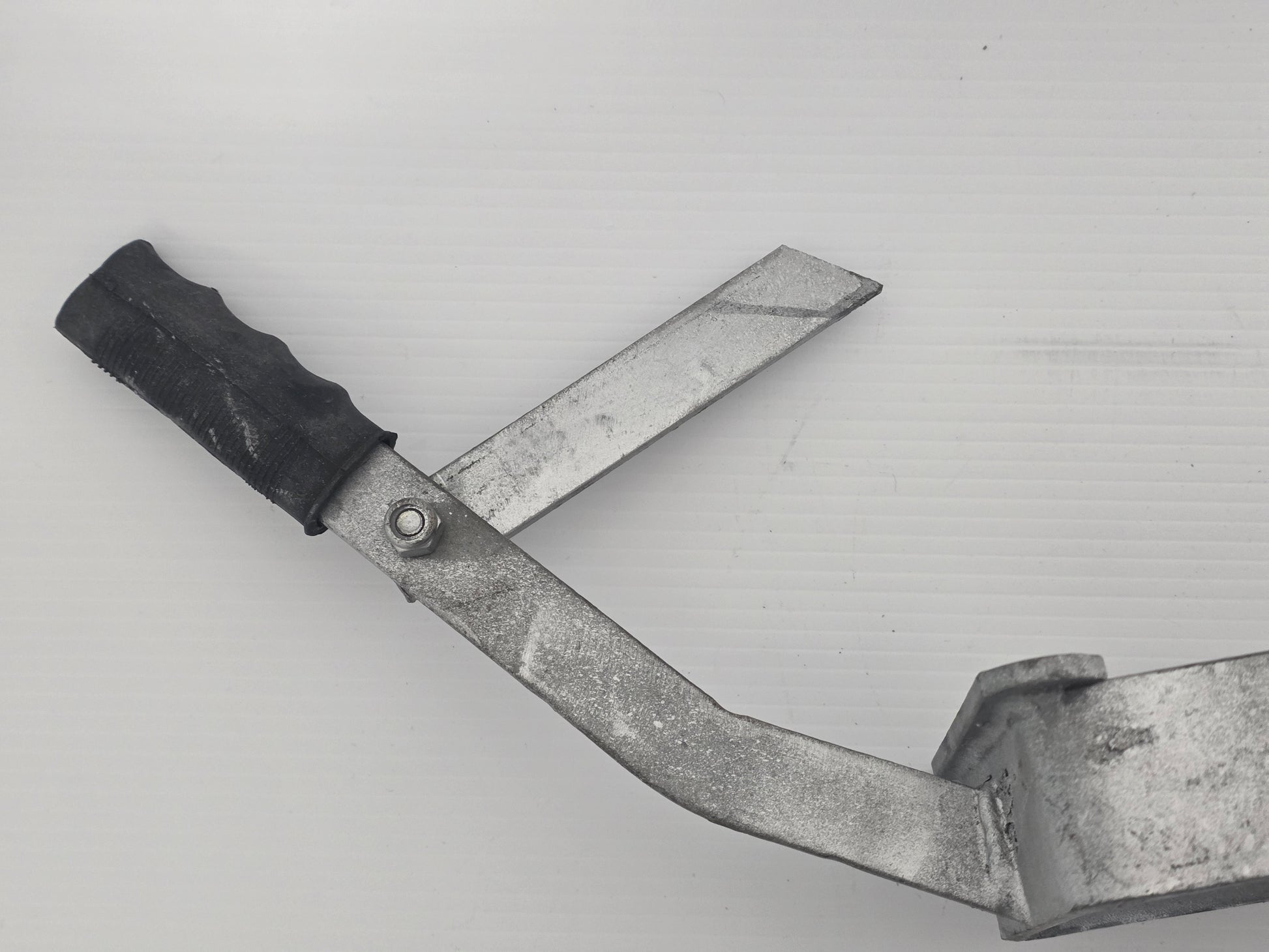

Dunbier Mechanical Brake Handbrake Assembly for 100mm Drawbar – Part Number: 1093
A complete mechanical trailer handbrake lever assembly configured to mount around a 100mm square tube. The kit includes the operating lever, cable adjuster and associated bolts and hardware as supplied, allowing the parking-brake mechanism to be renewed as a complete unit.
⚙️ Key Features
- Complete mechanical handbrake lever assembly
- Mounting configuration for 100mm square tube

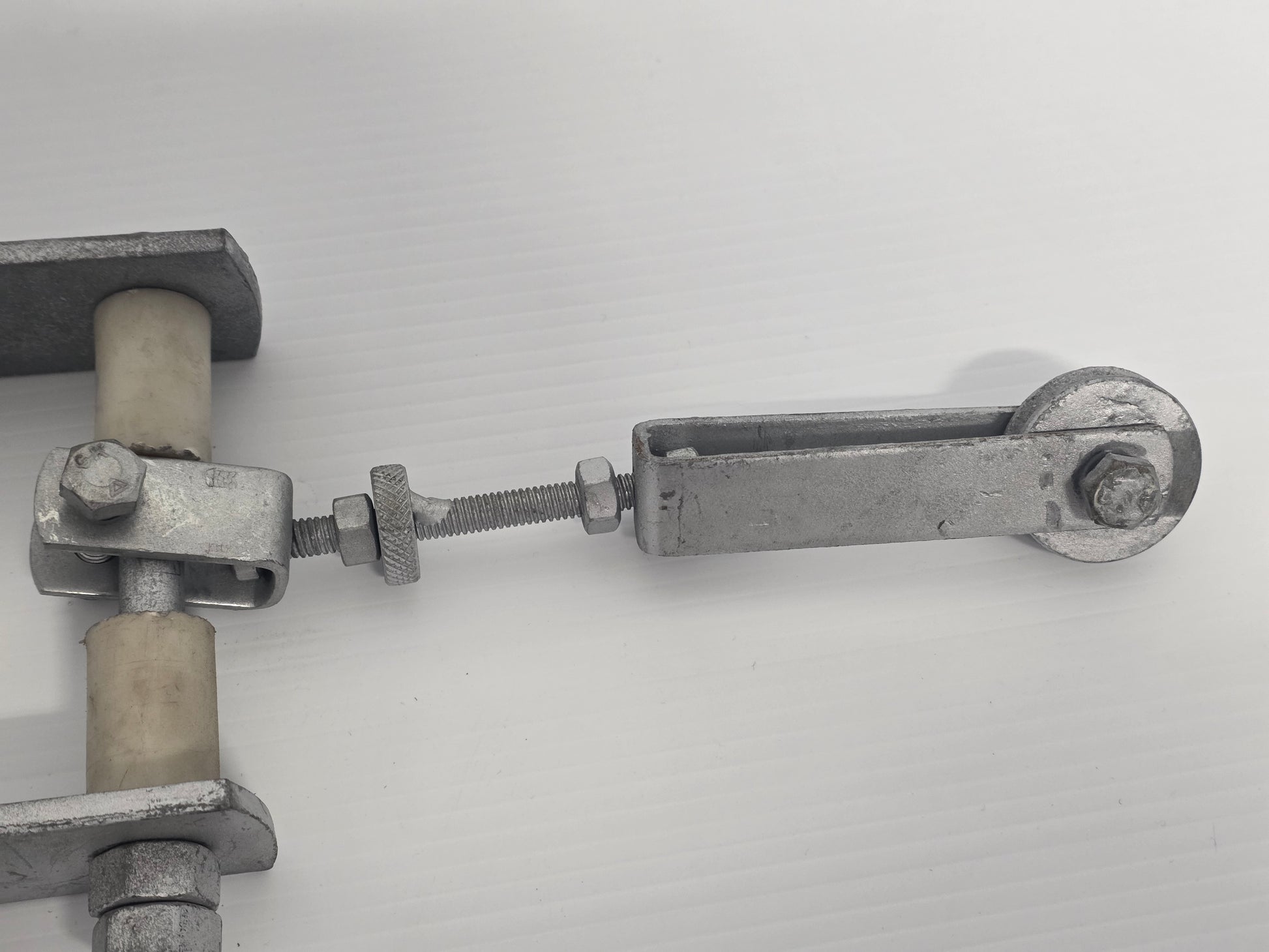

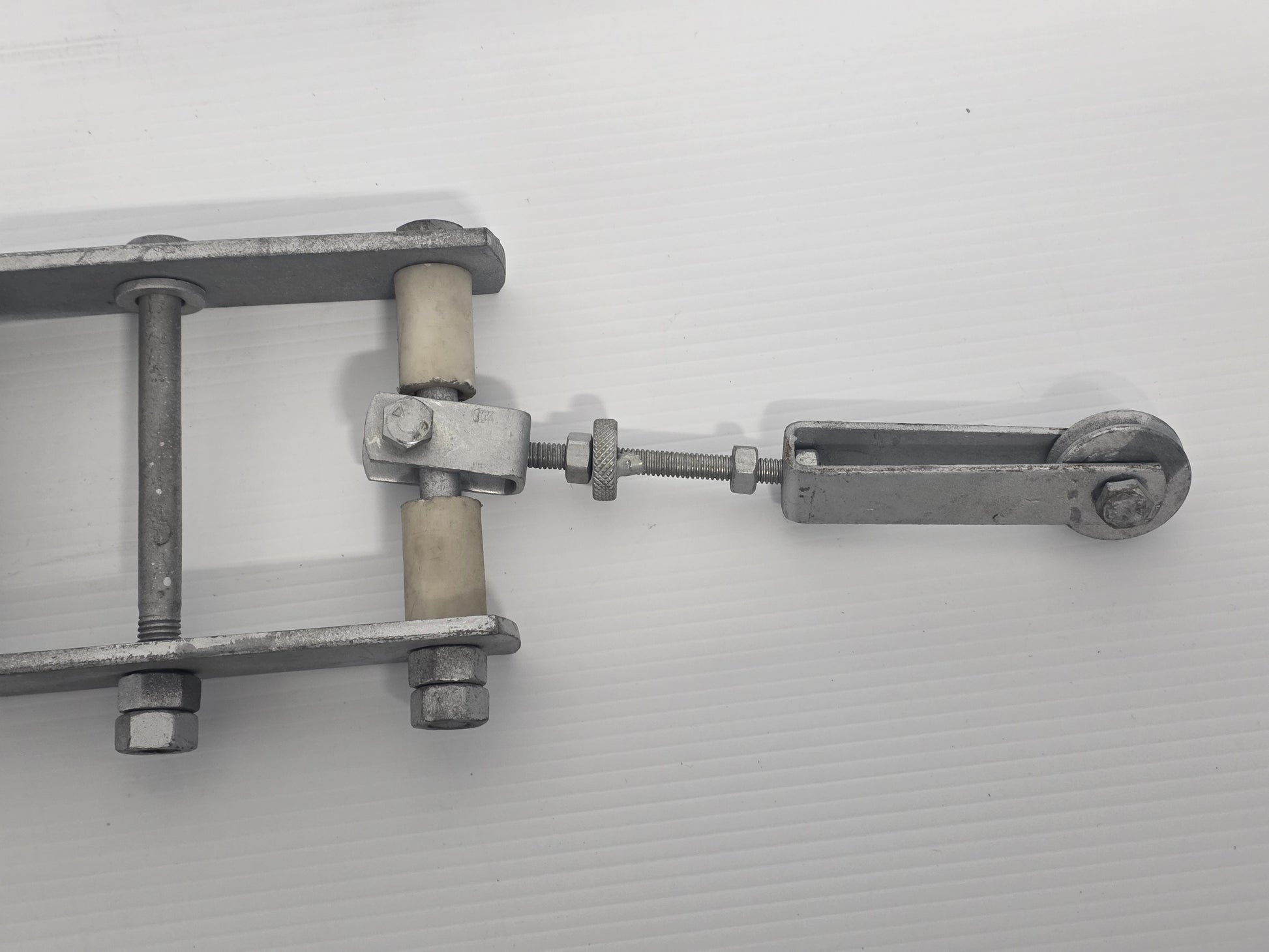

- Integrated brake-cable adjustment point
- Includes installation bolts and associated hardware
- Suitable for marine trailer mechanical brake systems
📏 Specifications
- Drawbar application: 100mm square tube
- Brake type: Mechanical cable-operated disc or drum system, as configured
- Assembly includes lever and adjuster
- Exact mounting-hole layout should be compared with the existing assembly
🔄 Cross Reference & Related Parts
- Dunbier: 1093
- Mackay: H3271K
- Related mechanical brake cable and adjuster components must be matched to the trailer
- Other sizes in the Dunbier family: 1090, 1093, 1094 and 1096
🚤 Trailer Compatibility & Application
- Suitable for Dunbier and compatible trailer drawbars of the specified section size
- Cable pull direction and attachment point must match the brake system
- Not a replacement for hydraulic-coupling handbrake/master-cylinder assemblies
🔌 Function
Applies and holds the trailer's mechanical brakes while parked and provides the cable-adjustment point for correct brake travel.
⚠️ Common Signs of Failure
- Lever ratchet or pawl will not hold
- Cable adjuster is seized or reaches the end of its travel
- Pivot holes are elongated
- Lever or mounting bracket is bent
- Parking brake applies unevenly or releases incompletely
🛠️ Installation & Safety
- Secure the trailer and release cable tension before removal
- Mount squarely to the correct drawbar size with the supplied high-tensile hardware
- Adjust both wheel brakes before using the handbrake cable adjuster
- Ensure the brakes release fully when the lever is lowered
- Test the parking brake on a controlled incline before road use
📦 Condition
- Brand new Dunbier Marine Products trailer component
- Supplied as one complete handbrake assembly for 100mm square tube
- Supplied in original or equivalent packaging
