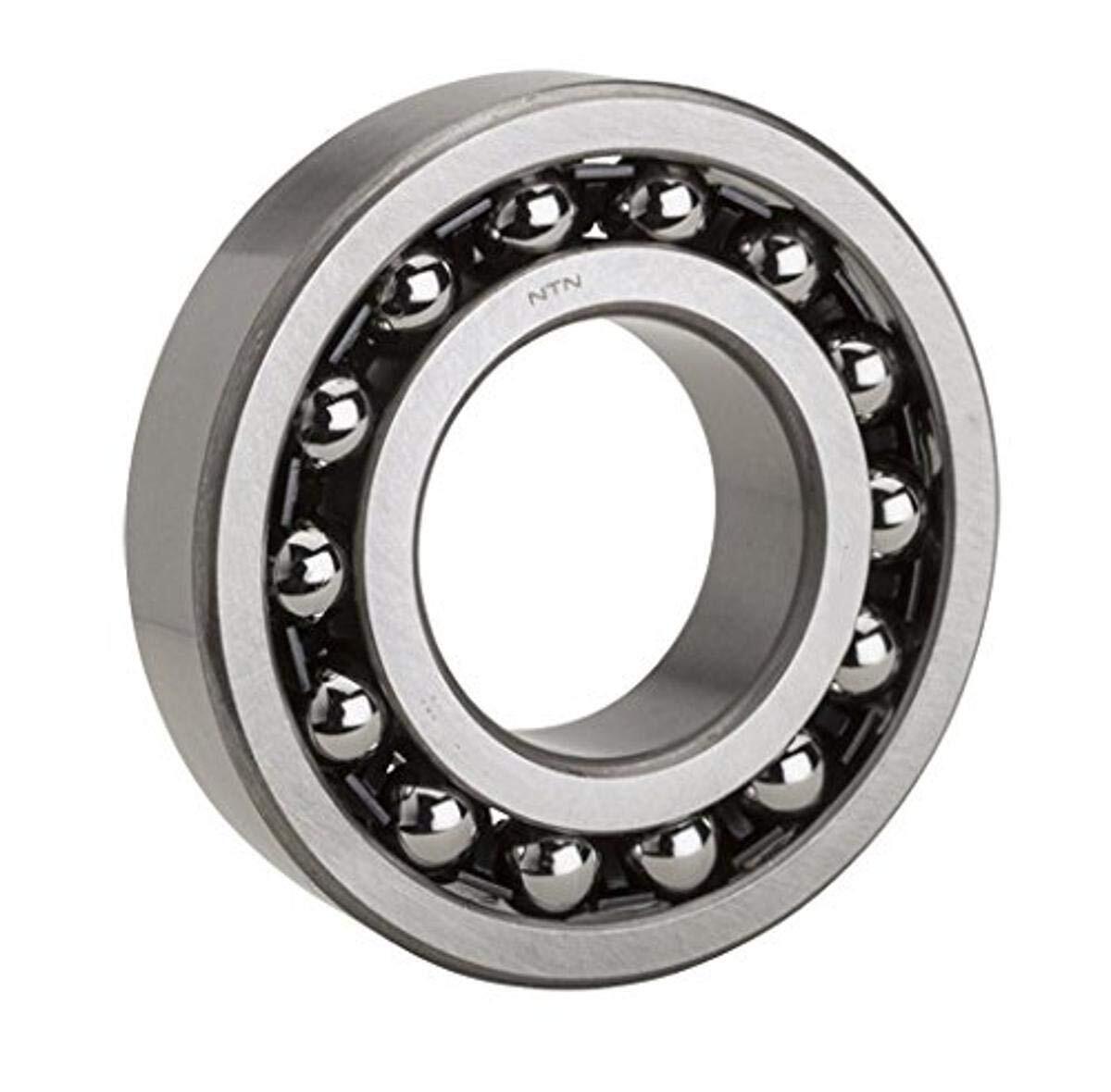

11013 Ball Bearing | Genuine Volvo Penta Part

🔧 Product Description

This is a genuine Volvo Penta ball bearing used within engine and drive assemblies across a very broad span of the Volvo Penta range, from classic AQ and MD petrol and diesel units through to the modern D12, D13 and D16 marine engines. It is supplied as an individual bearing and is also included in the corresponding overhaul kit, making it a standard replacement item during a rebuild. Net weight is approximately 0.17 kg.

🚤 Compatibility

• Engine Family: D, MD, TMD, TD, AQ, AQD, AD, TAMD, AQAD, TWD, TID, BB, THD, THAMD, B, DP, DPX, TAD, SP, MB, KAD
• Year Range: Approximately 1970s-2010s, assembly controlled

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM part number 11013
• Included in the corresponding overhaul kit
• Net weight approximately 0.17 kg
• Supersedes earlier part numbers 3831637, 422071, 821066, 831110, 825734 and 831002
• Fits AQ, MD, TMD, TAMD, TD, TID, TWD, AD, KAD, D12, D13 and D16 series engines as well as SP and DP drive units
• Engine type: Volvo Penta large marine and industrial diesel
• 62mm (Volvo assembly listing)
• Quantity varies by assembly, most commonly one
• Also supersedes Volvo part numbers 821192, 821194, 821195, 821285, 821287 and 823210

📋 Kit Contents

• Included in overhaul kit.

🔌 Function

The ball bearing supports a rotating shaft or component, carrying radial and some axial load while allowing it to turn with minimal friction. Correct bearing condition is essential to maintaining shaft alignment and smooth running of the assembly it sits in.

⚠️ Common Signs of Failure

• Rumbling, growling or whining noise that changes with engine or shaft speed
• Excessive play, roughness or notchy feel when the shaft is turned by hand
• Vibration traced to the bearing location under load
• Metallic debris or bearing material found in oil or grease
• Discolouration, pitting or scoring of the races and balls from overheating or contamination

🛠️ Service Notes

• Work clean — leave the bearing in its wrapping until the moment it goes in, and do not wash the preservative out or blow it dry with compressed air
• Apply the fitting force only to the ring being fitted, through a tube or drift that bears on that ring alone; force pushed through the balls from one ring to the other dents the raceways and the bearing will be noisy and short-lived from the first run
• Where the fit calls for it, expand the inner ring with even, controlled heat rather than driving it on, and never heat a bearing with a flame or beyond the temperature given in the workshop manual for your engine
• Check the shaft and housing seats before fitting — scoring, burrs, corrosion or a worn seat will ruin a new bearing, and fretting marks mean the seat itself needs attention
• Fit the bearing square and fully home against its shoulder, note which way round any sealed, shielded or marked face must go, and lubricate with the grease or oil specified for the application before it is turned under load

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 11013 → Supersedes 3831637

OEM / Related Numbers

• 422071 earlier number superseded by this part
• 821066 earlier number superseded by this part
• 831110 earlier number superseded by this part
• 825734 earlier number superseded by this part
• 831002 earlier number superseded by this part
• 3831637 earlier number superseded by this part
• 6206 related reference

Other-Brand OEM Numbers

• SKF: 6206
• FAG: 6206
• NSK: 6206
• NTN: 6206
• Koyo: 6206
• Timken: 206WB

Aftermarket / Verified Equivalents

• CROM: 119053
• National: 206

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 100S, 110S, 740B, 500A, 501A, 501B, 570A, 572A, 740A, 430A, 430B, 431A, 431B, 432A, 434A, 230A, 230B, 250A, 250B, 251A, 290A, 500B, 571A
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta TD100AHC, TD100ARC, TD100G-85, TD100A, TD100AG, TD100CHC, TD100G, TD100GG, TD100GGP, TD100HP, TD100HPB, TD100GG-85, TD100GP, TD100GP-85, TD100CRC
• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C1-A MH, D13C1-A MG, D13C8-B MP
• Volvo Penta TID121KG, TID121KGP, TID121KP, TID121KPB, TID121L, TID121LG, TID121LGP, TID121LP, TID121LPB, TID121FG, TID121K, TID121K-87
• Volvo Penta TD120C, TD120A, TD120G, TD120GG PP, TD120HP, TD120HPP, TD120GG, TD120AHC, TD120ARC, TD120BHC, TD120BRC
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH
• Volvo Penta TD121G-87, TD121GGP-87, TD121G, TD121GG, TD121GGP, TD121GP, TD121GPB, TD121CHC, TD121CRC
• Volvo Penta TID100KG, TID100KGP, TID100K, TID100K-87, TID100KGP-87, TID100KP, TID100KP-87, TID100KPB-87
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122AF, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TD61A, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TD61AW
• Volvo Penta TD71A, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TD71AW
• Volvo Penta AD41P-B, AD41B, AD41, AD41A, AD41BJ
• Volvo Penta AQ225D, AQ225E, AQ225B, AQ225C, AQ225F
• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70D, AQD70C
• Volvo Penta B230, B230E, B230F, B230FB, B230FX
• Volvo Penta DP-D, DP-A, DP-A1, DP-B, DP-B1
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TD70CHC, TD70CRC, TD70G, TD70B, TD70G-83
• Volvo Penta TID71A, TID71AG, TID71AGP, TID71AP, TID71APB
• Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
• Volvo Penta AQ131A, AQ131B, AQ131C, AQ131D
• Volvo Penta AQ200D, AQ200C, AQ200B, AQ200F
• Volvo Penta AQ271A, AQ271C, AQ271B, AQ271D
• Volvo Penta D100A, D100BHC, D100BRC, D100B
• Volvo Penta TAMD70B, TAMD70E, TAMD70C, TAMD70D
• Volvo Penta TD60D-83, TD60A, TD60B, TD60D
• Volvo Penta TWD710G, TWD710P, TWD710PB, TWD710V
• Volvo Penta AQ151A, AQ151B, AQ151C
• Volvo Penta AQ170B, AQ170C, AQ170A
• Volvo Penta BB115A, BB115B, BB115C
• Volvo Penta BB170B, BB170C, BB170A
• Volvo Penta D70CHC, D70CRC, D70B
• Volvo Penta MB20A, MB20B, MB20C
• Volvo Penta MD100A, MD100B, MD100B-CC
• Volvo Penta MD70B, MD70BK, MD70C
• Volvo Penta TAD120AHC, TAD120BHC, TAD120CHC
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAMD41B, TAMD41M-A, TAMD41A
• Volvo Penta TAMD60A, TAMD60B, TAMD60C
• Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
• Volvo Penta THD102KB, THD102KD, THD102K-KB
• Volvo Penta TWD1210G, TWD1210P, TWD1210V
• Volvo Penta TWD1211V, TWD1211P, TWD1211G
• Volvo Penta AD31, AD31B
• Volvo Penta AQ115A, AQ115B
• Volvo Penta AQ125B, AQ125A
• Volvo Penta AQ145B, AQ145A
• Volvo Penta AQ171A, AQ171C
• Volvo Penta AQ231A, AQ231B
• Volvo Penta AQ255A, AQ255B
• Volvo Penta AQ260A, AQ260B
• Volvo Penta AQ311A, AQ311B
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta AQD21A, AQD21B
• Volvo Penta D41, D41B
• Volvo Penta SP-A, SP-A1
• Volvo Penta TAD1030V, TAD1030VE
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD120A, TAMD120B
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD165A, TAMD165C
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TD730ME, TD730VE
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TID120FG, TID120HPP
• Volvo Penta TID60DG, TID60D
• Volvo Penta TID61AG, TID61AGP
• Volvo Penta TMD100A, TMD100C
• Volvo Penta TMD120A, TMD120B
• Volvo Penta TMD41A, TMD41B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta AQ120B
• Volvo Penta AQ140A
• Volvo Penta AQ165A
• Volvo Penta AQ175A
• Volvo Penta AQ190A
• Volvo Penta AQ205A
• Volvo Penta AQ211A
• Volvo Penta AQ240A
• Volvo Penta AQ290A
• Volvo Penta AQAD30A
• Volvo Penta AQD2B
• Volvo Penta AQD40A
• Volvo Penta B20
• Volvo Penta BB165A
• Volvo Penta BB740A
• Volvo Penta D120A
• Volvo Penta D45BPP
• Volvo Penta DPX
• Volvo Penta KAD42A
• Volvo Penta MD1B
• Volvo Penta MD120A
• Volvo Penta MD2B
• Volvo Penta MD21A
• Volvo Penta MD3B
• Volvo Penta MD31A
• Volvo Penta TAD121CHC
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TAMD31B
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD63L-A
• Volvo Penta TD1010G
• Volvo Penta TD1030VE
• Volvo Penta TD1210G
• Volvo Penta TD45B
• Volvo Penta TD710G
• Volvo Penta TID70G
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TMD31B
• Volvo Penta TWD1010G
• Volvo Penta TWD1030ME
• Volvo Penta TWD1031VE
• Volvo Penta TWD1230ME
• Volvo Penta TWD1240VE
• Volvo Penta TWD731VE
