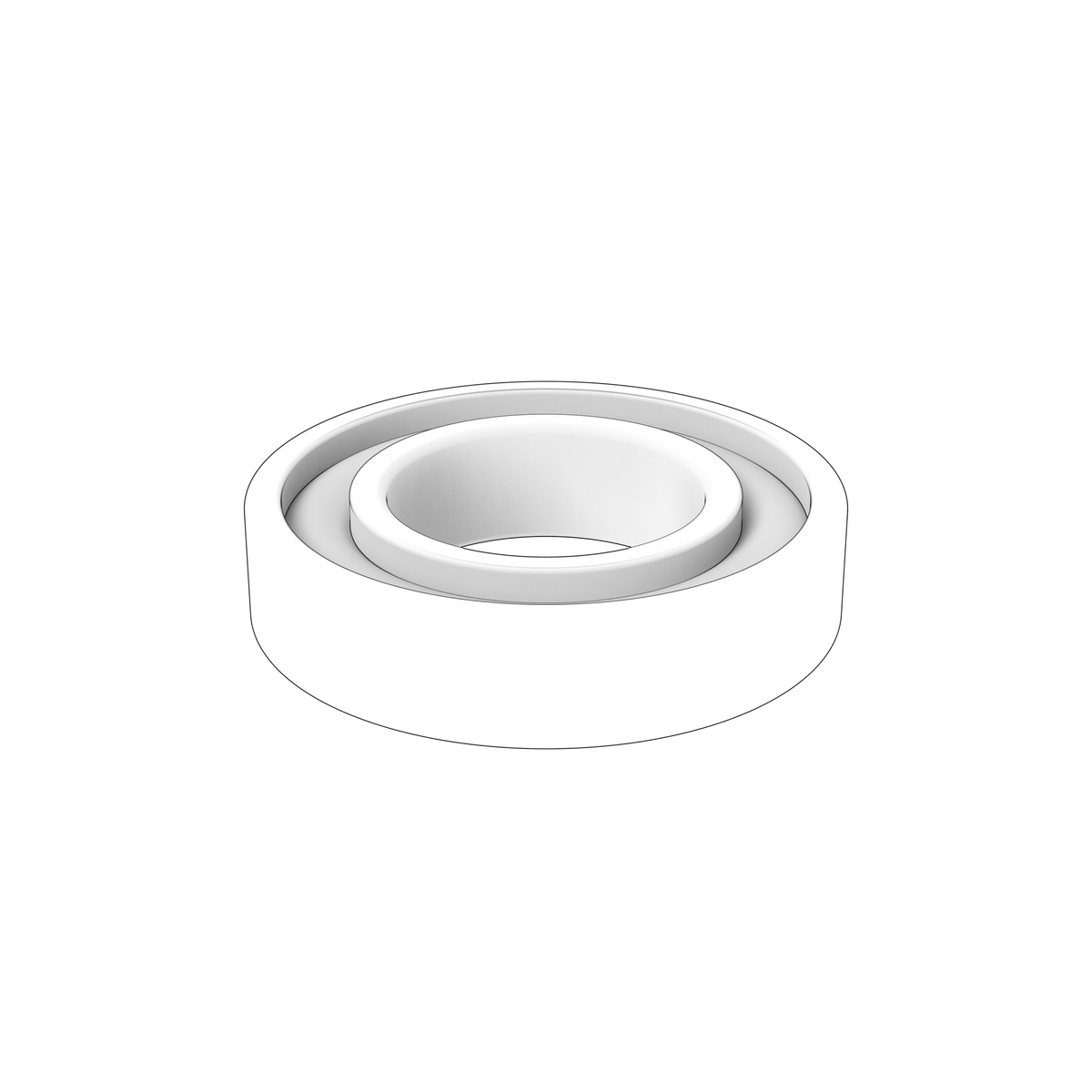

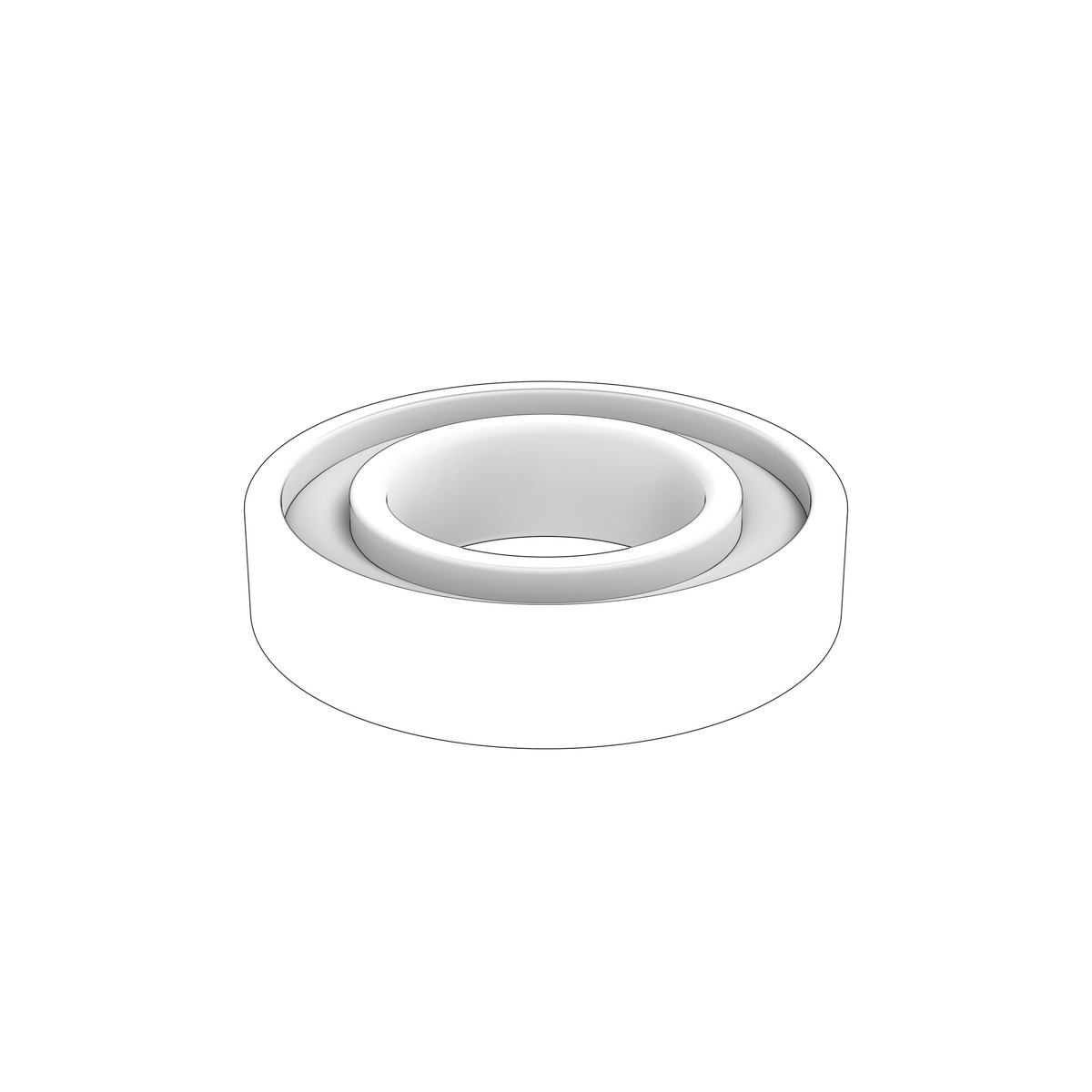

11016 Ball Bearing | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta ball bearing weighing 0.433 kg and listed for 63 applications across the TAD, TD, TWD and TID engine series. It is the bearing used in the connecting kit for the auxiliary hydraulic pump drive, supporting the pump drive gear and holding shaft alignment at the flywheel housing or power take-off connection. No system group is published against this number, so it is ordered against the hydraulic drive arrangement fitted.

🚤 Compatibility

• Engine Family: TAD, TD, TWD, TID
• HP Range: Approximately 235-350 HP
• Year Range: Approximately late 1980s - early 2000s

Full model list at the end of this description.

⚙️ Key Features

• 0.433 kg
• 63 applications across the TAD, TD, TWD and TID series
• Used in the connecting kit for the auxiliary hydraulic pump drive
• No system group published against the number

🔌 Function

Supports a rotating shaft so it turns with minimal friction while holding precise alignment under radial and axial load. Correct bearing condition keeps the driven assembly running true and free of play.

⚠️ Common Signs of Failure

• Rumbling, growling or whining noise that changes with engine or shaft speed
• Excessive radial or axial play felt when the shaft is moved by hand
• Rough or gritty feel when the shaft is rotated manually
• Localised overheating or discoloration around the bearing housing
• Metallic particles, pitting or brinelling visible on the races or balls, or loss of grease

🛠️ Service Notes

• Check the shaft seating diameter, the housing bore and the drive gear teeth while the bearing is out, since a bearing that has run rough rarely fails on its own
• Press on the race that is being fitted, never through the balls

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 3825094 - Related hydraulic-pump flange
• 3825095 - Related hydraulic-pump drive gear
• 864499 - Related support bearing
• 3825093 - Related hydraulic-pump connecting-kit component
• Industrial bearing equivalent matching Timken 209BB dimensions and load specification

Other-Brand OEM Numbers

• Timken: 209BB

Aftermarket / Verified Equivalents

• National: 209

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TD61A, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TD61AW
• Volvo Penta TD71A, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TD71AW
• Volvo Penta TID71A, TID71AG, TID71AGP, TID71AP, TID71APB
• Volvo Penta TWD1210G, TWD1210P, TWD1210PB, TWD1210V
• Volvo Penta TAD1030P, TAD1030V, TAD1030VE
• Volvo Penta TD121G-87, TD121GP, TD121GPB
• Volvo Penta TWD1211V, TWD1211P, TWD1211G
• Volvo Penta TWD610P, TWD610PB, TWD610V
• Volvo Penta TWD710P, TWD710PB, TWD710V
• Volvo Penta TAD730P, TAD730V
• Volvo Penta TD610M, TD610V
• Volvo Penta TD630ME, TD630VE
• Volvo Penta TD730ME, TD730VE
• Volvo Penta TID61AG, TID61AGP
• Volvo Penta TWD1230ME, TWD1230VE
• Volvo Penta TWD630ME, TWD630VE
• Volvo Penta TAD1230V
• Volvo Penta TD100G
• Volvo Penta TD1030VE
• Volvo Penta TD1210G
• Volvo Penta TD640VE
• Volvo Penta TWD1030ME
• Volvo Penta TWD1031VE
• Volvo Penta TWD1231VE
• Volvo Penta TWD730ME
• Volvo Penta TWD731VE
• Volvo Penta TWD740VE
