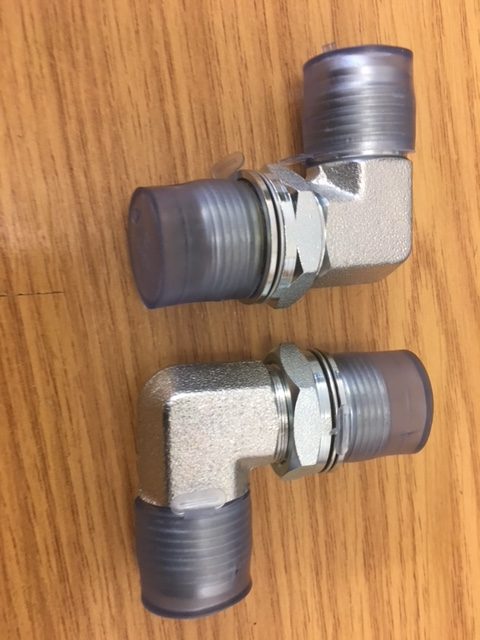

11090362 Elbow Nipple | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta elbow nipple for the engine oil drain arrangement. This angled fitting connects into the oil drain point, allowing lubricating oil to be routed out cleanly during scheduled oil changes. It is specified for D12 and D13 series marine propulsion diesel engines.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 11090362
• Designated for oil drain service on the engine lubrication system
• Angled elbow nipple design for routing the drain line away from the sump
• Net weight 0.16 kg
• Fits D12 and D13 series marine propulsion diesel engines
• Engine type: Volvo Penta D12 and D13 marine propulsion diesel
• System type: Marine gearbox fluid or control-hose connection

🔌 Function

The elbow nipple provides a threaded, angled connection at the engine oil drain point so oil can be directed into a hose or container during draining. It maintains a sealed, leak-free joint in the lubrication circuit while the engine is running.

⚠️ Common Signs of Failure

• Oil weeping or dripping from the drain connection when the engine is running
• Damaged, stripped or cross-threaded connection preventing a proper seal
• Corrosion or pitting of the fitting body leading to seepage
• Cracking of the elbow after over-tightening or impact damage
• Oil residue and staining accumulating in the bilge below the drain point

🛠️ Service Notes

• Clean both threads and check the sealing face or cone is unmarked before the fitting goes anywhere near the engine
• Seal the joint the way that thread is designed to be sealed — sealing washer, O-ring or thread sealant on a tapered thread — and renew the soft parts rather than reusing them
• Aim the elbow so the hose or pipe leaves it in a natural line, and hold that alignment while tightening; twisting the hose round afterwards to correct the angle loads the joint
• Do not over-tighten to cure a weep, particularly into aluminium or cast housings — strip the joint, find out why it leaked and reseal it properly
• Support the hose or pipe so it is not left hanging on the fitting and passing its vibration into the joint

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 3837463 related transmission hose
• 994303 related reduction nipple
• 21575444 related flexible coupling
• 3826409 related reversing-gear assemblies
• 3826410 related reversing-gear assemblies
• 3826411 related reversing-gear assemblies
• 3826414 related solenoid
• 873827 related cable kit

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-B MP, D13B-D MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D12C-A MP, D12D-A MP, D12D-B MP, D12D-D MP, D12D-G MP, D12D-H MP
