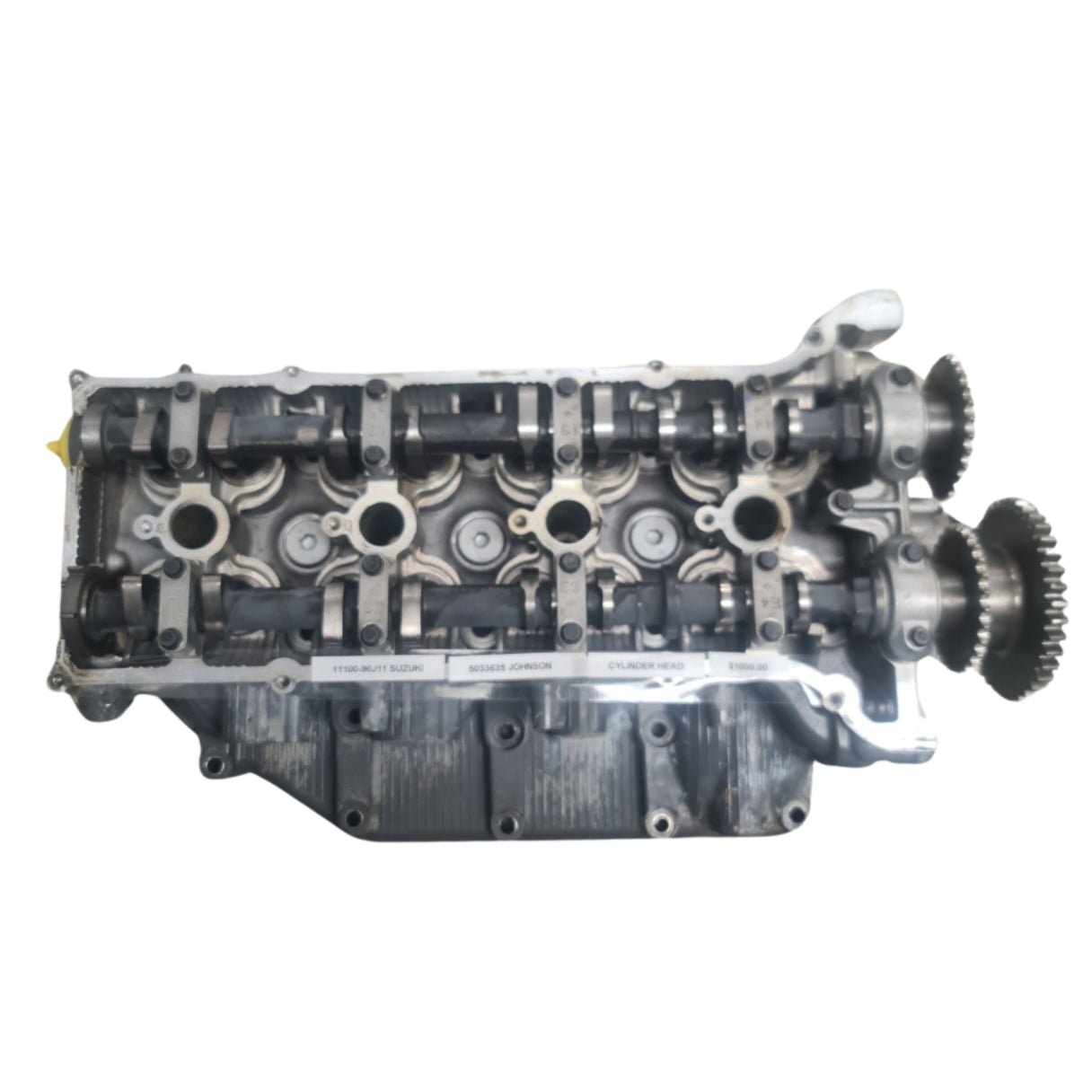

Genuine Suzuki / Johnson Four-Stroke Cylinder Head Assembly - Part Number: 11100-90J11
A genuine Suzuki cylinder-head assembly also supplied for Suzuki-manufactured Johnson four-stroke outboards under Johnson / BRP reference 5033635.
The head is used on selected original-generation DF90, DF100, DF115 and DF140 engines and later DF100A, DF115A and DF140A applications. It contains the combustion chambers, intake and exhaust ports, valve guides, cooling jackets and camshaft-support structure.
This head is not suitable for the later Suzuki DF90A engine.
⚙️ Key Features
- Genuine Suzuki OEM cylinder-head assembly
- Cross-brand Johnson / BRP equivalent 5033635
- Correct current Suzuki part number 11100-90J11
- Supersedes earlier 90J-series cylinder-head references
- Used on selected Suzuki and Johnson 90HP to 140HP four-stroke outboards
🚤 Compatibility
Commonly used on
- Suzuki original-generation DF90, DF100, DF115 and DF140 four-stroke powerheads
- Suzuki DF100A, DF115A and DF140A applications using head 11100-90J11
- Suzuki-manufactured Johnson four-stroke outboards using BRP head 5033635
Typically suits
- Engine models:
- Suzuki DF90 original-generation four-stroke - not DF90A
- Suzuki DF100
- Suzuki DF100A where 11100-90J11 is specified
- Suzuki DF115
- Suzuki DF115A where 11100-90J11 is specified
- Suzuki DF140
- Suzuki DF140A where 11100-90J11 is specified
- 2001 Suzuki DF115
- 2003 Johnson J115PX4STS
- Johnson 115HP four-stroke Suzuki-platform model families using 5033635
- Johnson 140HP four-stroke Suzuki-platform model families using 5033635
- HP Range: 90HP - 140HP
- Engine Type: Suzuki / Johnson inline four-cylinder fuel-injected four-stroke outboard
- Year Range: Approximately 2001 - 2021, dependent on model and cylinder-head specification
🔌 Function
The cylinder head forms the combustion chambers and contains the valve, camshaft, intake, exhaust and cooling passages required for four-stroke engine operation.
⚠️ Common Signs of Failure
- Head warped after overheating
- Combustion chambers or valve seats damaged
- Camshaft journals scored from oil starvation
- Cooling passages corroded or restricted
- Head-gasket leakage causes low compression, water loss or combustion pressure in the cooling system
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 11100-90J11 → Supersedes 11100-90J06
- 11100-90J06 → Supersedes 11100-90J05
- 11100-90J05 → Supersedes 11100-90J02
- 11100-90J02 → Supersedes 11100-90J01
- 11100-90J01 earlier Suzuki cylinder-head reference
OEM / Related Numbers
- 11100-90J11
- 1110090J11
- 11100-90J11-000
- 11100-90J06
- 11100-90J05
- 11100-90J02
- 11100-90J01
- Johnson / BRP: 5033635
- 5033635
Aftermarket / Verified Equivalents
- Johnson / BRP OEM: 5033635
- No direct aftermarket complete cylinder-head equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
