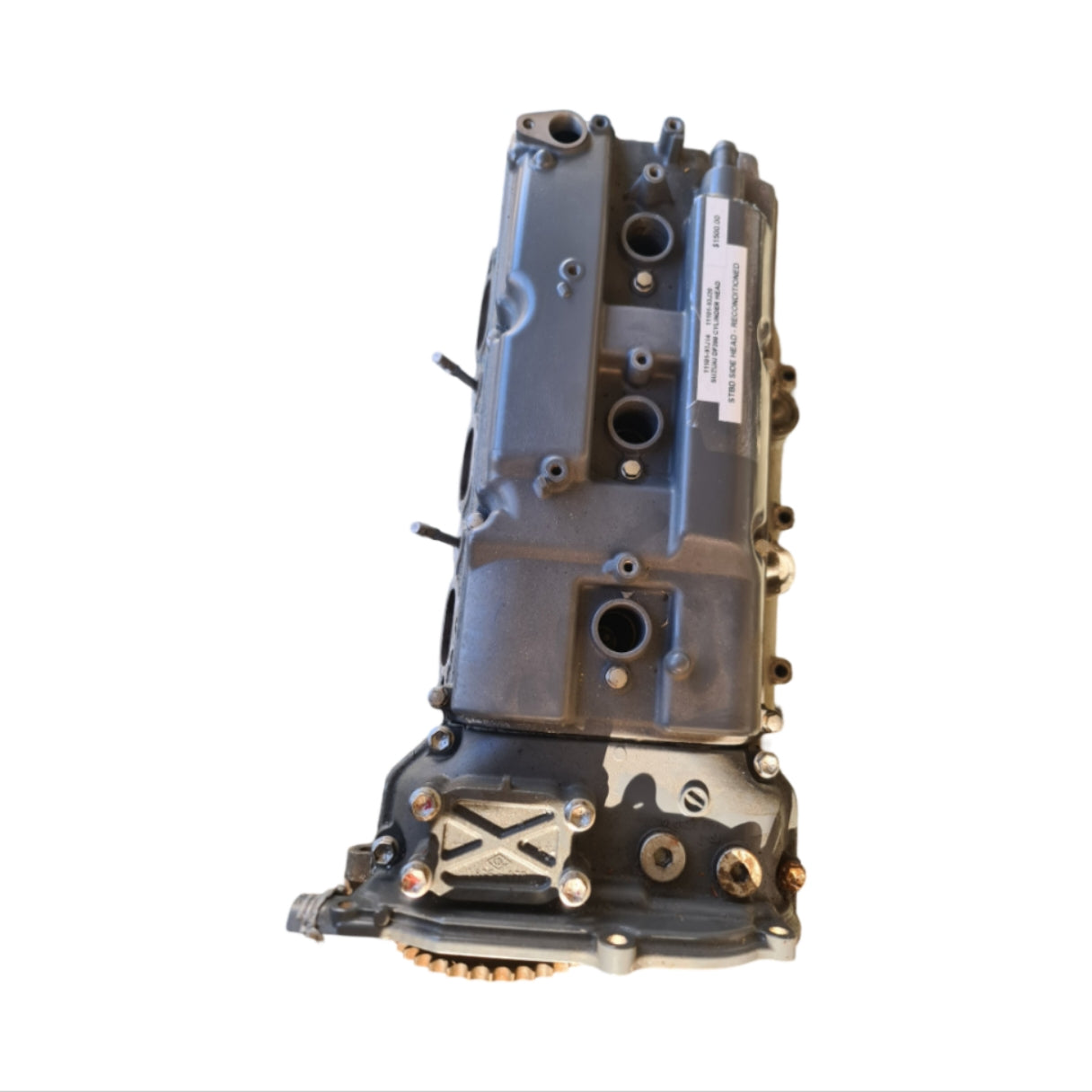

11101-93J14 11101-93J20 Suzuki DF200 Cylinder Head | Genuine Used Part

🔧 Product Description

Genuine Suzuki DF200 V6 Starboard Cylinder Head Assembly - Part Number: 11101-93J20

A genuine used Suzuki starboard-side cylinder head for selected DF200, DF225 and DF250 V6 four-stroke outboard motors.

The aluminium cylinder head forms the combustion chambers for the starboard bank of three cylinders and supports the corresponding camshafts, valves, valve guides, spark plugs, cooling passages and lubrication galleries.

Part number 11101-93J20 is the later starboard cylinder-head reference associated with earlier 11101-93J14 and preceding 93J-series head assemblies.

⚙️ Key Features

• Genuine used Suzuki Marine starboard cylinder head
• Later service reference 11101-93J20
• Cross-references with cylinder head 11101-93J14
• Fits selected 3.6-litre DF200, DF225 and DF250 V6 engines
• Dedicated starboard-side cylinder-bank configuration

🚤 Compatibility

Commonly used on

• Suzuki 3.6-litre V6 four-stroke powerheads
• Starboard cylinder bank of DF200, DF225 and DF250 engines
• Standard-rotation and counter-rotation models using the 93J-series V6 powerhead

Typically suits

• Engine models:
• Suzuki DF200 V6 four-stroke
• Suzuki DF200T
• Suzuki DF200Z counter-rotation
• Suzuki DF225 V6 four-stroke
• Suzuki DF225T
• Suzuki DF225Z counter-rotation
• Suzuki DF250 V6 four-stroke
• Suzuki DF250T
• Suzuki DF250Z counter-rotation
• DF200 model families beginning with 20001F, 20002F and corresponding V6 serial groups
• DF225 model families beginning with 22501F and corresponding V6 serial groups
• DF250 model families beginning with 25001F, 25002F, 25003F and corresponding V6 serial groups
• HP Range: 200HP - 250HP
• Engine Type: Suzuki 3.6L DOHC 24-valve V6 EFI four-stroke outboard
• Cylinder Bank: Starboard
• Year Range: Approximately 2004-2023 for DF200 V6 and 2004-2025 for applicable DF225 / DF250 V6 models

🔌 Function

The starboard cylinder head seals the upper section of the three starboard cylinders and contains the combustion chambers, valve seats, valve guides, camshaft supports, spark-plug threads and internal oil and cooling-water passages.

⚠️ Common Signs of Failure

• Low compression on one or more starboard cylinders
• Cooling water enters a combustion chamber
• Cylinder head is warped after an overheating event
• Cracks develop around a valve seat, spark-plug thread or cooling passage
• Valves do not seal correctly
• Engine oil or cooling water leaks from the head joint
• Spark-plug threads are stripped or damaged
• Camshaft journals or bearing surfaces are scored
• Corrosion develops within the internal cooling passages
• Repeated head-gasket failure occurs on the starboard bank

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 11101-93J20 later starboard cylinder-head service reference
• 11101-93J14 preceding starboard cylinder-head reference
• 11101-93J13 earlier OEM reference
• 11101-93J12 earlier OEM reference
• 11101-93J11 earlier OEM reference
• 11101-93J10 earlier OEM reference

OEM / Related Numbers

• 11101-93J20
• 1110193J20
• 11101-93J20-000
• 11101-93J14
• 1110193J14
• 11101-93J14-000
• 11101-93J13
• 11101-93J12
• 11101-93J11
• 11101-93J10
• 11141-93J10 starboard cylinder-head gasket
• 11141-93J03 earlier starboard head gasket
• 11170-93J01 starboard cylinder-head cover
• 11179-93J00 starboard cylinder-head cover gasket
• 11174-93J00 starboard breather hose
• 11119-93J00 cylinder-head bolt
• 11115-93J10-001 oversize valve guide
• 11261-93J00 internal-anode cover
• 55321-87J01 internal protection anode
• 11410-93872 related engine gasket set

Aftermarket / Verified Equivalents

• Recmar: REC11141-93J10 - starboard cylinder-head gasket
• Marine Spare Parts: AM11141-93J10 - starboard cylinder-head gasket
• Recmar: REC11141-93J03 - replacement gasket cross-reference
• No aftermarket equivalent for the complete starboard cylinder-head assembly

📦 Condition

• Genuine used part
• Starboard-side cylinder head
• Reconditioned where stated in the product listing
• In good working condition unless otherwise stated
