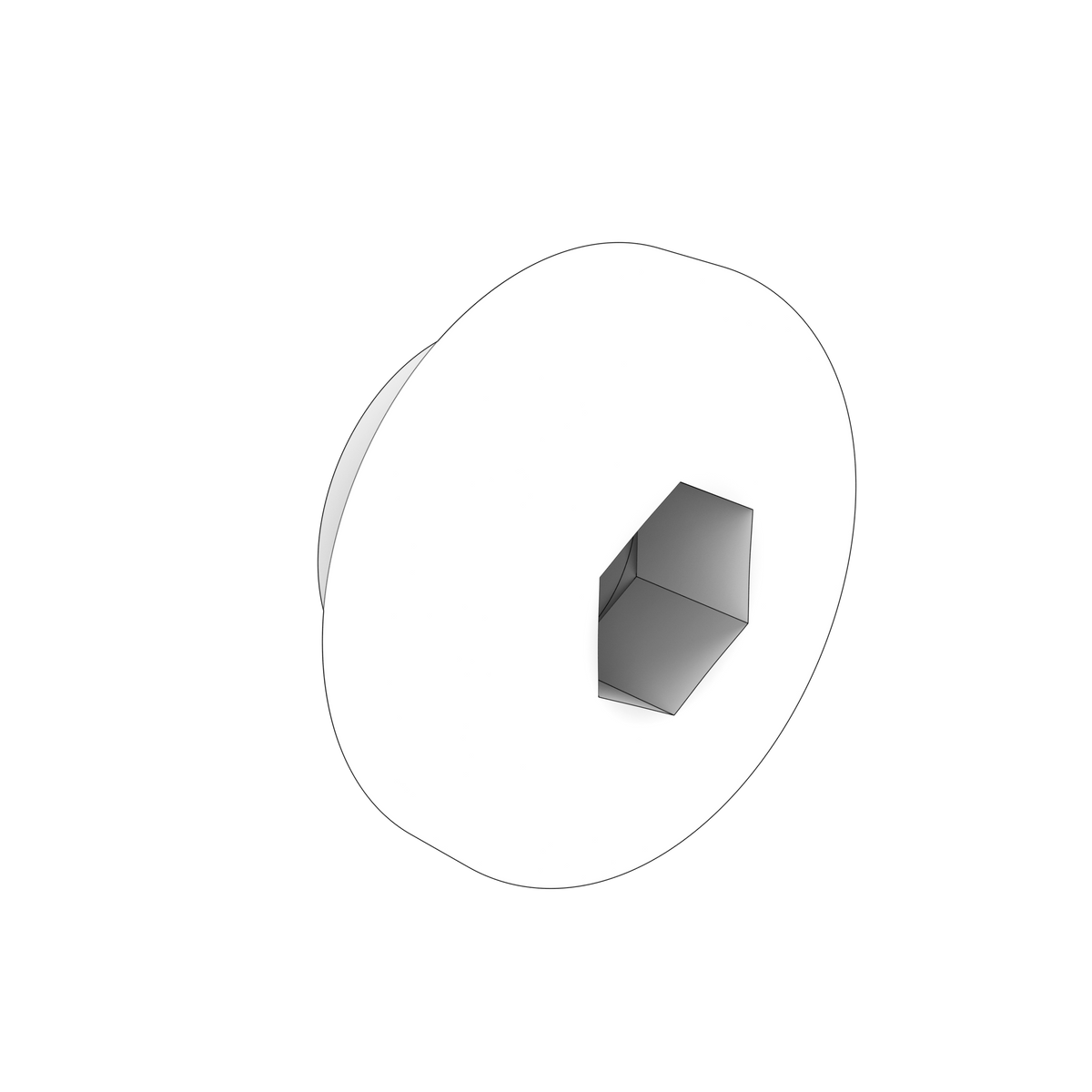

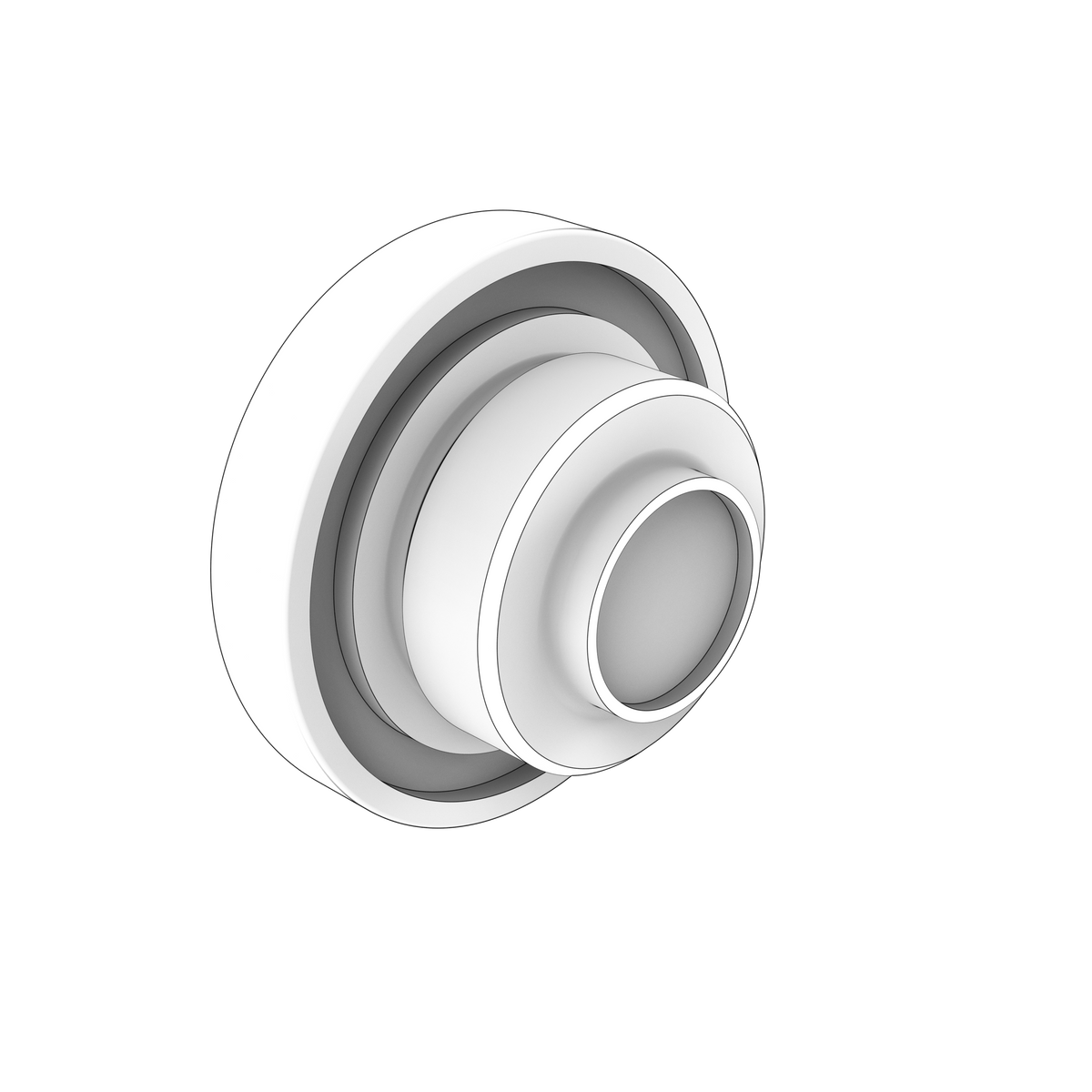

11127354 Magnetic Plug | Genuine Volvo Penta Part

🔧 Product Description

This is a genuine Volvo Penta magnetic plug from the Engine system group, used to seal the oil drain point while collecting ferrous wear particles from the circulating lubricating oil. This version is specified for engines built without an oil drain pump, so confirm your engine's drain arrangement before ordering. Net weight is approximately 0.20 kg.

🚤 Compatibility

• Engine Family: D, TAD, TWD
• HP Range: Approximately 350-800 HP
• Year Range: Approximately 2000s onward

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 11127354
• Specified for engines without an oil drain pump
• System group: Engine
• Net weight approximately 0.195 kg
• Magnetised body captures ferrous debris from the lubricating oil
• Fits D13 and D16 marine engines plus TAD and TWD industrial and generator-set series
• Engine type: Volvo Penta inline 6-cylinder 12-, 13- and 16-litre diesel
• Quantity varies by assembly, most commonly two

🔌 Function

The magnetic plug seals the oil drain opening to retain lubricating oil under normal operation and is removed to drain the sump during service. Its magnetic core attracts and holds ferrous wear particles suspended in the oil, keeping them out of circulation and providing a useful indication of internal wear at each oil change.

⚠️ Common Signs of Failure

• Oil seepage or drips from the drain point after refitting
• Damaged, rounded or stripped drive recess preventing safe removal
• Worn or deformed sealing face or missing sealing washer causing a persistent weep
• Heavy accumulation of metallic paste or chips on the magnet indicating internal wear
• Reduced magnetic pull so debris is no longer retained

🛠️ Service Notes

• Clean the magnet completely at every oil change and read what comes off it — a light grey paste is normal wear, while flakes, chips or bright slivers mean something is breaking up and want investigating before the unit is run on
• Renew the sealing washer or O-ring each time the plug is removed, rather than pulling the plug up harder to cure a weep
• Check the magnet still holds firmly and is sound in its body; one that has weakened, cracked or worked loose collects nothing and can itself go through the system
• Tighten to the figure in the workshop manual for that housing — these plugs go into soft castings and are easily stripped
• Keep the plug and its threads clean of debris so it seats fully on its washer

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 968209 - Related sealing O-ring

Other-Brand OEM Numbers

• VOE11127354 - Volvo Construction Equipment formatting

Aftermarket / Verified Equivalents

• SRP: P-27354

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C1-A MH, D13C2-A MH, D13C2-A MG, D13C1-A MG
• Volvo Penta D16C-A MG, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta TAD1640-42GE-B, TAD1640VE-B, TAD1640-42VE-C
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1341-43GE-B, TAD1341VE
• Volvo Penta TAD1344-45GE-B, TAD1344VE
• Volvo Penta TAD1650VE-B/51VE, TAD1650VE
• Volvo Penta TAD1140-42VE
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1180-83VE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1342VE
• Volvo Penta TAD1343VE
• Volvo Penta TAD1345VE
• Volvo Penta TAD1346GE
• Volvo Penta TAD1350VE
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP
• Volvo Penta TAD1641VE-B
• Volvo Penta TAD1642VE-B
• Volvo Penta TAD1643VE-B
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1683VE
