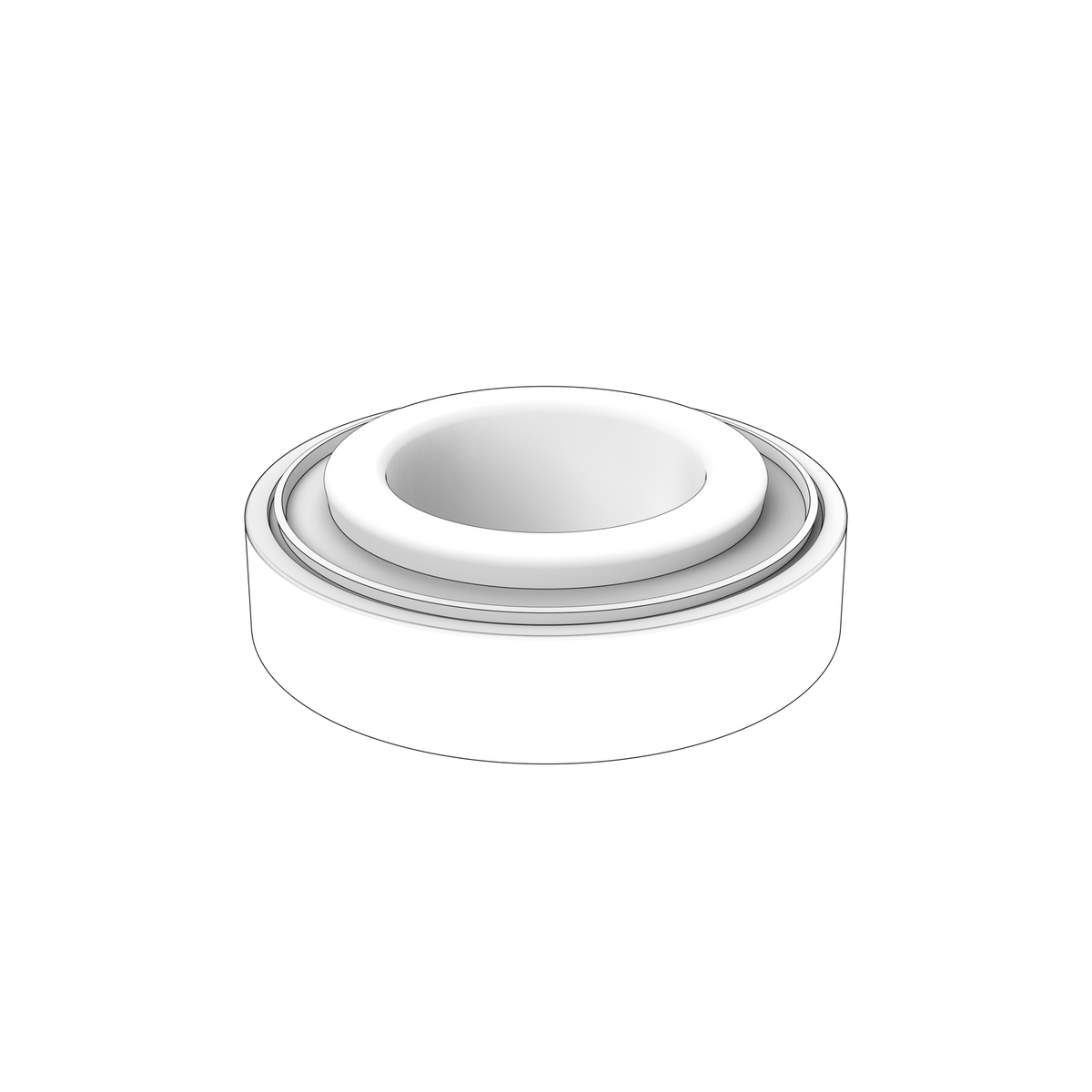

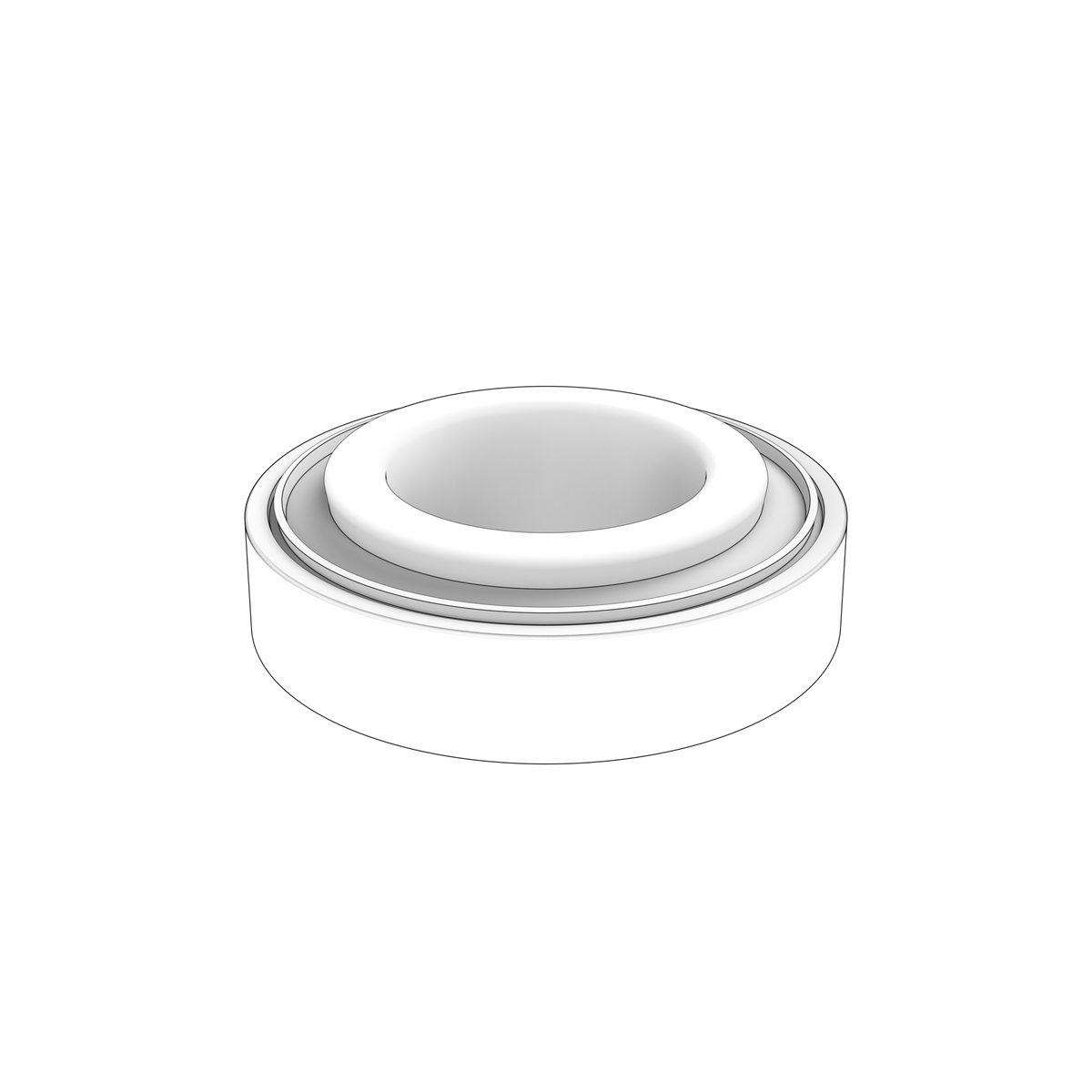

11137 Roller Bearing | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta roller bearing used in selected FWD propulsion drives and HS-series hydraulic reverse gears. The bearing supports the output shaft or countershaft and carries radial and combined transmission loads within the gear housing. Current Volvo Penta part number 11137 replaces earlier bearing reference 3582129. It is used as a bearing cup or complete roller-bearing position depending on the transmission arrangement and is installed with the matching shaft, inner ring and shim stack.

🚤 Compatibility

• Engine Family: V, FWD, D, HS
• HP Range: 145-480 HP
• Year Range: Approximately 1990s - 2010s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 11137
• Supersedes previous part number 3582129
• Net weight 0.59 kg
• Fits V6 and V8 petrol sterndrive engines, D4 and D6 marine diesels, HS-series reverse gears and FWD forward drive units
• Genuine Volvo Penta component built to original specification
• Engine type: Volvo Penta FWD propulsion drive / HS hydraulic marine transmission

🔌 Function

The roller bearing carries radial load on a rotating shaft, letting it spin with minimal friction while keeping it correctly located and aligned. Correct bearing condition is essential to maintaining shaft alignment, gear mesh and smooth power transfer.

⚠️ Common Signs of Failure

• Growling, humming or rumbling noise that changes with shaft speed
• Vibration or roughness felt through the drive at certain engine speeds
• Excessive shaft play, end float or perceptible radial movement
• Metallic debris or bearing material found in the oil or on the drain plug/magnet
• Discoloured, pitted, spalled or blued rollers and races on inspection
• Overheating or loss of lubrication around the bearing housing

🛠️ Service Notes

• Keep the bearing in its wrapper until the moment of fitting and work with clean hands and clean tools — a roller bearing is ruined by grit long before it is ruined by use
• Apply the fitting force only to the race being fitted, using a tube or drift that bears squarely on the whole ring face, so the load never passes through the rollers; never strike the bearing or press on the loose race
• Warming the inner race evenly in oil or a purpose-made bearing heater lets an interference fit slide on without hammering — never heat a bearing with a flame, and stay within the temperature the manufacturer's instructions allow
• Check the shaft and housing seats for wear, scoring and burrs first; a slack or damaged seat will destroy a new bearing quickly
• Lubricate with the grade specified for that position, and where the bearing takes an adjustable preload or endfloat — tapered roller bearings especially — set it by the workshop manual procedure rather than by feel

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 11137 → Supersedes 3582129

OEM / Related Numbers

• 3582129 earlier number superseded by this part
• 184683 related inner ring in FWD-B1 drive
• 184595 related roller bearing in HS-series reverse gears
• 22452468 related FWD-B1 gear set
• 3886175 related HS-series adjustment shims
• 3886176 related HS-series adjustment shims
• 3886177 related HS-series adjustment shims
• 3886178 related HS-series adjustment shims

Other-Brand OEM Numbers

• SKF: VKHB 2015
• FAG: 32209A
• NSK: HR32209J
• NTN: 4T-32209
• Koyo: 32209JR

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-300-E-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-C-N, V6-200-CE-N, V6-240-C-M, V6-240-CE-M, V6-280-C-M, V6-280-CE-M, V6-280-CE-J, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-C-N, V6-240-CE-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-J, V6-280-CE-N, V6-200-C-M, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta D6-280I-D, D6-310I-D, D6-280I-E, D6-310I-E, D6-300I-F, D6-330I-C, D6-370I-C, D6-330I-D, D6-280I-C, D6-310I-C, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435I-C, D6-435I-D, D6-435I-E, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E
• Volvo Penta D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-225I-C, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-145I-G, D4-175 VG
• Volvo Penta FWD-D2 OX, FWD-D1, FWD-D2, FWD-D1 OX, FWD-B1, FWD-B2, FWD-E1 TCC, FWD-E2 TCC, FWD-F TCC, FWD-F, FWD-F2, FWD-F2 TCC, FWD-G, FWD-G TCC, FWD-G1, FWD-G1 TCC
• Volvo Penta HS63AE-A, HS63AE-D, HS63AE-C, HS63A
• Volvo Penta HS80VE, HS80AE, HS80IVE-B
• Volvo Penta HS85IVE, HS85IVE-A
• Volvo Penta HS68A-A
