11162582 Nipple | Genuine Volvo Penta Part

🔧 Product Description

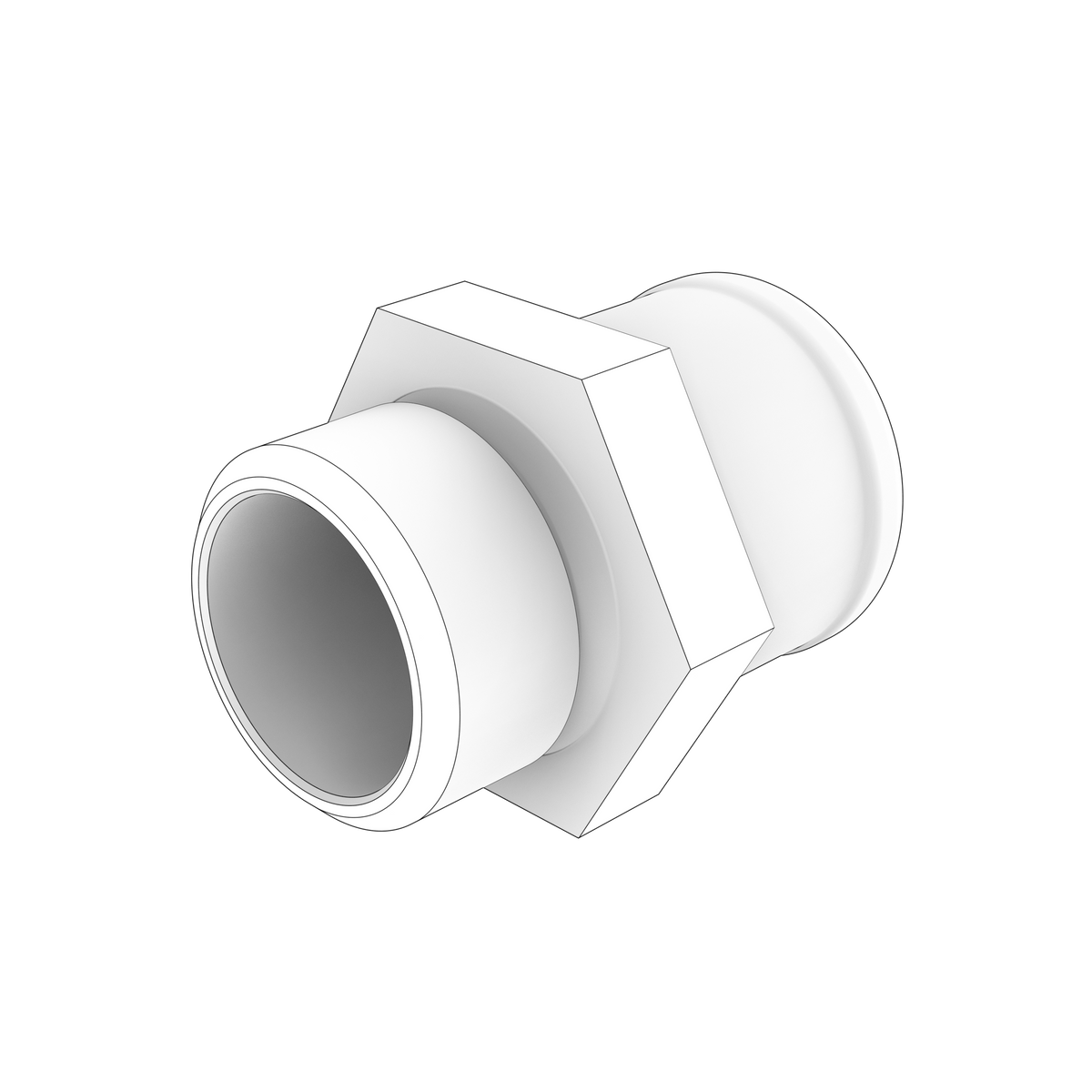

Genuine Volvo Penta nipple (part number 11162582), a threaded connector fitting from the engine system group. It provides the union point between a hose, pipe or line and its mating port on the engine, and is used across the D13 marine and TAD11/TAD13 industrial and generator-set engine families. Supplied as an individual fitting with a net weight of approximately 0.20 kg.

🚤 Compatibility

• Engine Family: D, TAD
• Year Range: Approximately late 2000s-2010s, engine-model and serial controlled

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM part number 11162582
• System group: Engine
• Net weight: 0.20 kg
• Fits D13 series marine engines and TAD1140-TAD1385 series industrial and generator-set engines
• Supplied as a single fitting
• Engine type: Volvo Penta 13-litre inline six-cylinder industrial / generator diesel

🔌 Function

The nipple acts as a threaded adaptor that joins a line, hose or pipe to its port on the engine, creating a sealed passage for fluid or air flow. It maintains a leak-free connection under the pressure and vibration present in normal engine operation.

⚠️ Common Signs of Failure

• Fluid seepage or weeping at the threaded joint
• Corrosion or pitting on the fitting body or threads
• Damaged, stripped or cross-threaded connection that will not seal when torqued
• Cracks in the fitting leading to pressure loss in the connected circuit
• Restricted or blocked internal passage reducing flow

🛠️ Service Notes

• Check the bore is clear before fitting — a nipple is often the feed point or restriction for a circuit, and debris left in it will starve whatever it supplies
• On tapered threads use the paste or liquid sealant specified for the fluid concerned, applied a few threads back from the open end; avoid thread tape on fuel and oil lines, where a shed shred travels downstream into filters, pumps and injectors
• Where the nipple seals on a face or against a washer rather than on its thread, fit a new sealing washer instead of curing a weep by overtightening
• Tighten to the figure in the workshop manual for your engine — these are small fittings in castings and are easily stripped, or the surrounding boss cracked
• Support the pipe or hose so it meets the nipple square and without side load, then check the joint at working pressure and temperature

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 18813 sealing gasket
• 11423761 oil-level sensor
• 3883614 related pipe
• 21613847 related later pipe
• 21598748 oil dipstick
• 20871321 related oil dipstick

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C2-A MG, D13C1-A MG
• Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
• Volvo Penta TAD1342VE, TAD1342GE
• Volvo Penta TAD1343VE, TAD1343GE
• Volvo Penta TAD1345GE, TAD1345VE
• Volvo Penta TAD1350GE, TAD1350VE
• Volvo Penta TAD1351GE, TAD1351-53VE
• Volvo Penta TAD1140-42VE
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1180-83VE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1346GE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1353GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP
