11170-88L10 Suzuki Rocker Cover | Genuine Used Part

🔧 Product Description

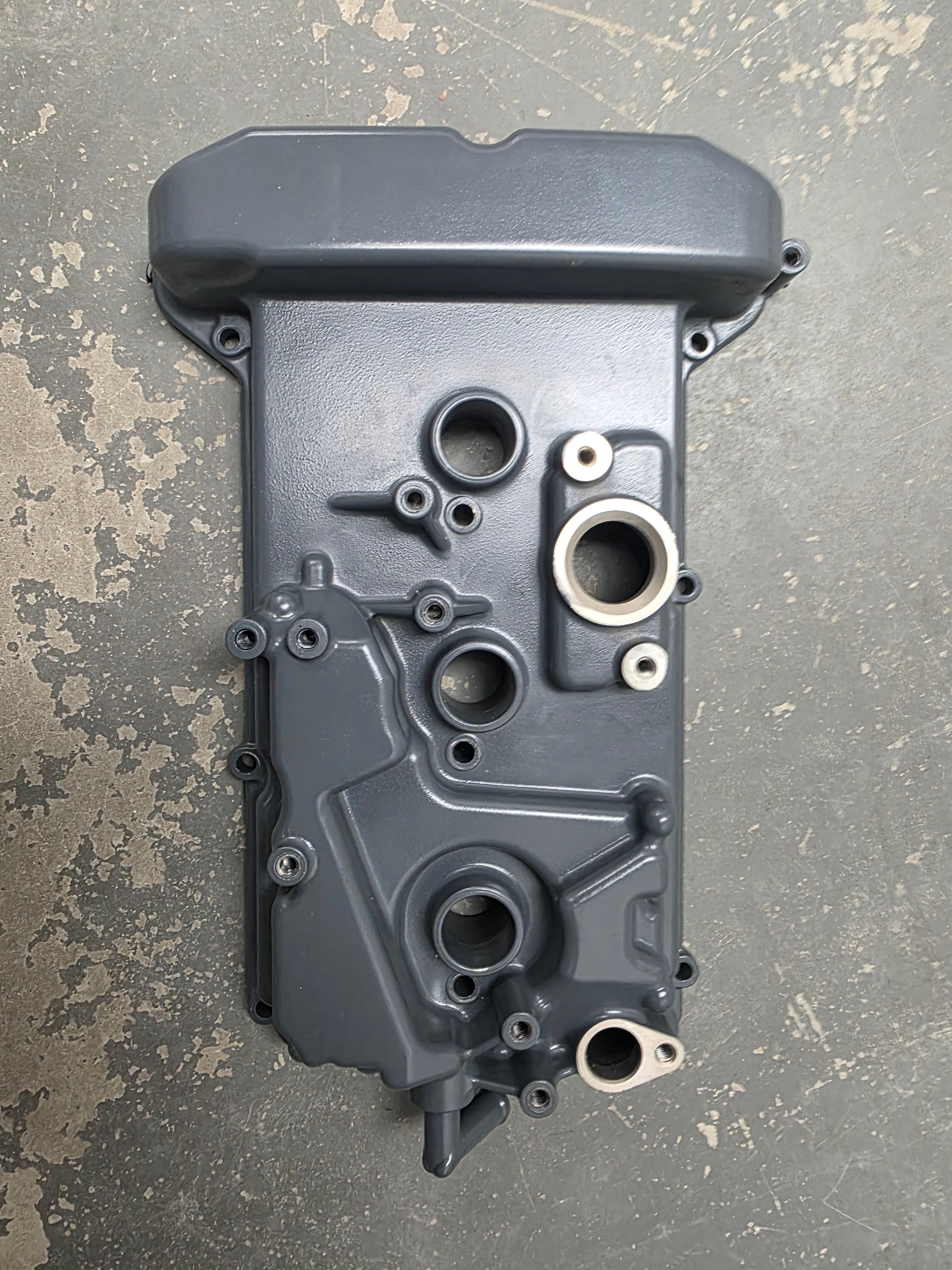

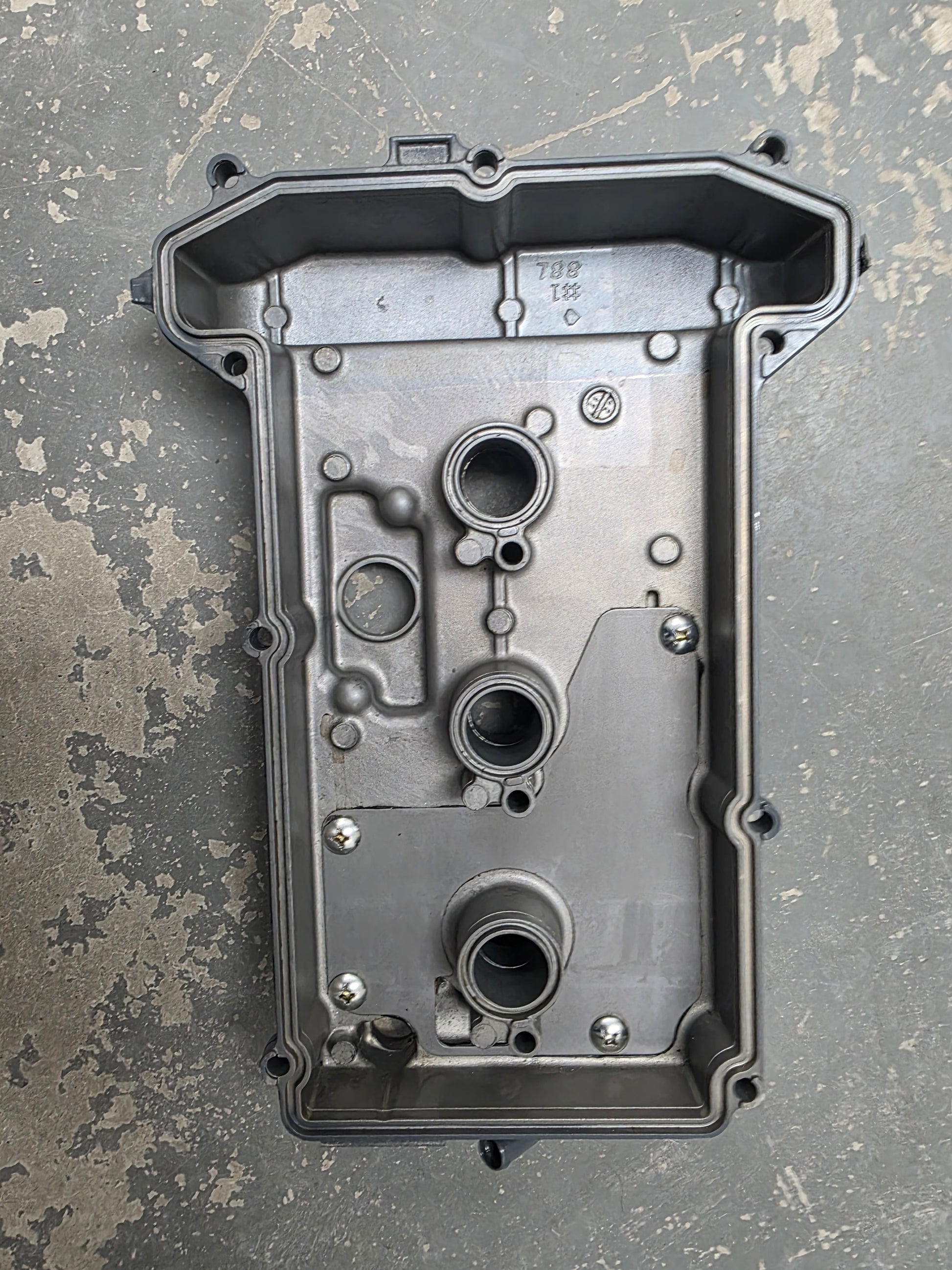

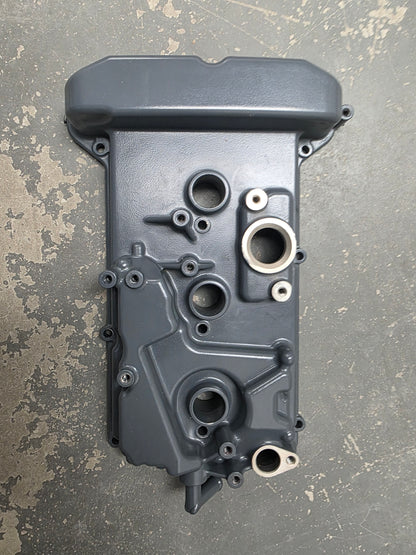

Genuine Suzuki DF40A / DF50A / DF60A Cylinder-Head Cover - Part Number: 11170-88L10

A genuine used Suzuki rocker or cylinder-head cover for the 941cc DF40A, DF50A and DF60A inline-three four-stroke engine family. The aluminium cover encloses the camshaft and valve train and incorporates the factory breather, oil-filler and ignition-coil mounting provisions.

⚙️ Key Features

• Genuine Suzuki Marine cylinder-head cover
• Correct part number 11170-88L10
• Used on 40HP to 60HP A-series engines
• Factory breather and coil-mounting layout
• Matches head-cover gasket 11189-88L00

🚤 Compatibility

Commonly used on

• Suzuki DF40A
• Suzuki DF50A and DF50AV
• Suzuki DF60A and DF60AV
• 941cc inline-three four-stroke powerheads

Typically suits

• 04002F, 05002F and 06002F serial families from approximately 2010
• Later 04003F, 05003F and 06003F production
• Selected DF40AST and high-thrust variants
• Catalogue usage continues through later A-series production where 11170-88L10 is specified
• HP Range: 40HP - 60HP
• Engine Type: 941cc inline-three EFI four-stroke
• Year Range: Approximately 2010 onward
• Fitment Requirement: Confirm breather ports, coil mounts, colour and gasket

🔌 Function

The cover seals engine oil around the camshaft and valve train, supports breather control and provides access for oil filling and service.

⚠️ Common Signs of Failure

• Oil leaking from the perimeter gasket
• Cracked casting or damaged bolt bosses
• Blocked crankcase breather
• Warped sealing surface
• Corroded ignition-coil or hose mounting points

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 11170-88L10 established Suzuki service reference
• No confirmed later complete-cover supersession
• Earlier production covers must be matched by breather and ignition-coil layout

OEM / Related Numbers

• 11170-88L10
• 11170-88L10-000
• 1117088L10
• 11189-88L00 head-cover gasket
• 01547-0625C / 01547-06257 related cover bolts
• 16910-88L00 related oil dipstick
• 16510-87J01 related oil filter

Aftermarket / Verified Equivalents

• No verified complete aftermarket rocker cover
• Used genuine Suzuki 11170-88L10 covers
• Aftermarket head-cover gasket sets may be available
• Aftermarket grommets and breather hoses may be sourced separately
• Universal automotive valve covers are not compatible

📦 Condition

• Genuine used part
• Removed from running engine or vessel where applicable
• In good working condition unless otherwise stated
