113-3101 (0582262) CDI Power Pack | Genuine Used Part

🔧 Product Description

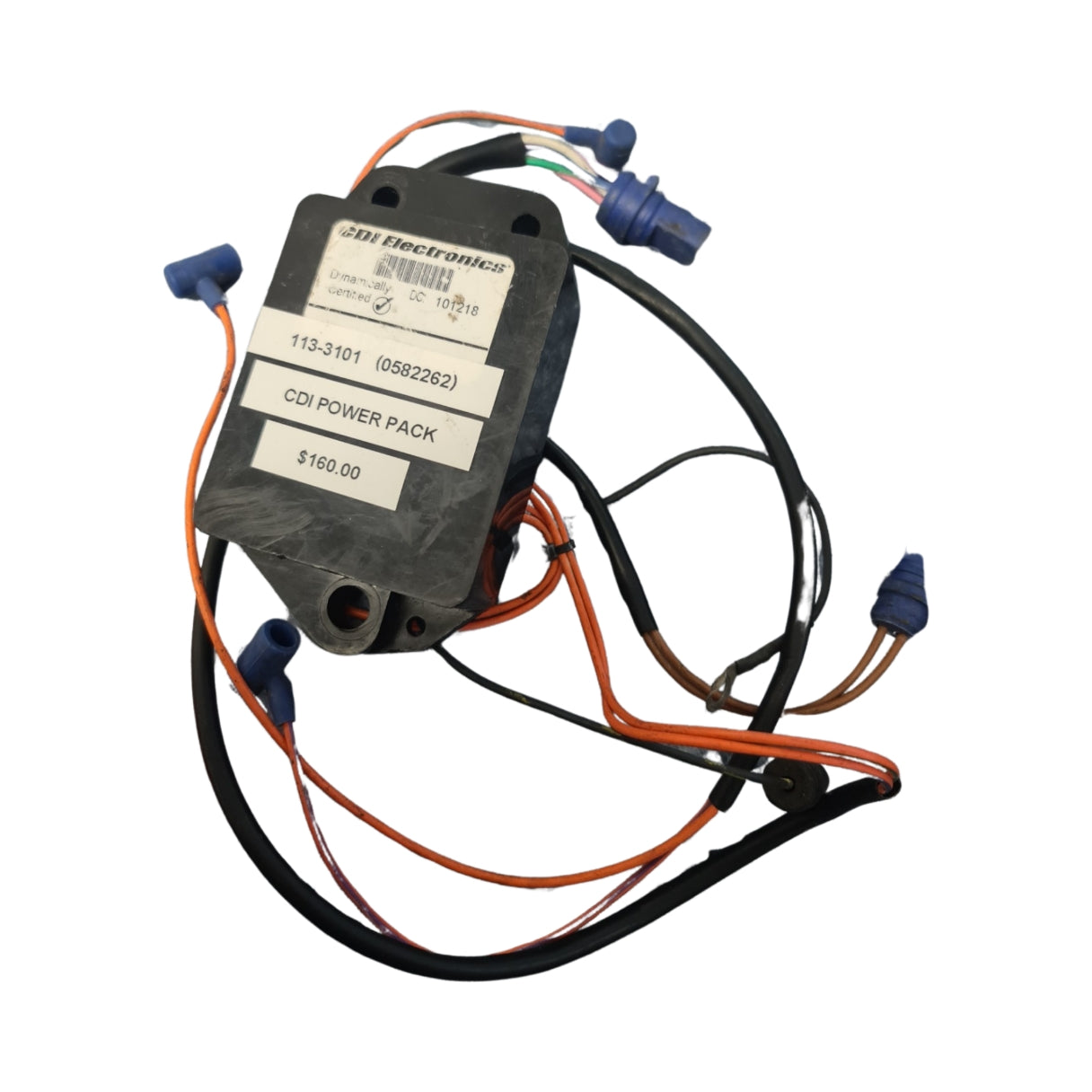

Genuine CDI Electronics Power Pack - Part Number: 113-3101

A CDI Electronics replacement power pack for selected Johnson and Evinrude CD4 / CD8 two-stroke ignition systems. This 6700 RPM ignition module replaces OMC / BRP 0582262 and related earlier power-pack references, controlling ignition-coil firing from the stator and timer-base circuits.

⚙️ Key Features

• CDI Electronics ignition power pack

• Correct CDI part number 113-3101

• Cross-references with OMC / BRP 0582262

• 6700 RPM limit CD4 / CD8 ignition module

• Suits selected Johnson / Evinrude 4-cylinder and V8 two-stroke ignition systems

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0582262 → Supersedes 0763797

• 0763797 earlier OMC / BRP CD4 power-pack reference

• 0583336 earlier related OMC / BRP CD4 / CD8 reference

• 0583103 earlier related OMC / BRP reference

• 0583102 earlier related OMC / BRP reference

• 0583101 earlier related OMC / BRP reference

• 0583041 earlier related OMC / BRP reference

• 0583037 earlier related OMC / BRP reference

• 0581404 earlier related OMC / BRP reference

OEM / Related Numbers:

• 0582262

• 582262

• 0763797

• 763797

• 0581404

• 581404

• 0583037

• 583037

• 0583041

• 583041

• 0583101

• 583101

• 0583102

• 583102

• 0583103

• 583103

• 0583336

• 583336

• CD4 power pack

• CD8 power pack

Aftermarket / Verified Equivalents:

• CDI Electronics: 113-3101

• Sierra: 18-99216

• Sierra: 18-5892

• Mallory: 9-25023

🚤 Compatibility

Commonly used on:

• Johnson / Evinrude CD4 and CD8 two-stroke ignition systems

Typically suits:

• Engine models:

• Johnson 88HP 4-cylinder - 1986-1988

• Evinrude 88HP 4-cylinder - 1986-1988

• Johnson 90HP 4-cylinder - 1986-1988

• Evinrude 90HP 4-cylinder - 1986-1988

• Johnson 100HP 4-cylinder - 1986-1988

• Evinrude 100HP 4-cylinder - 1986-1988

• Johnson 110HP 4-cylinder - 1986-1988

• Evinrude 110HP 4-cylinder - 1986-1988

• Johnson 120HP 4-cylinder - 1986-1988

• Evinrude 120HP 4-cylinder - 1986-1988

• Johnson 140HP 4-cylinder - 1986-1988

• Evinrude 140HP 4-cylinder - 1986-1988

• Johnson 200HP V8 - 1986-1987, two power packs required

• Evinrude 200HP V8 - 1986-1987, two power packs required

• Johnson 275HP V8 - 1986-1987, two power packs required

• Evinrude 275HP V8 - 1986-1987, two power packs required

• HP Range: 88HP - 275HP

• Engine Type: Johnson / Evinrude 4-cylinder CD4 and V8 CD8 two-stroke outboard ignition systems

• Year Range: Approximately 1986 - 1988 for 4-cylinder applications; approximately 1986 - 1987 for V8 applications

• Serial / Model Note: OMC / BRP fitment is model-number controlled. Match by exact model number, RPM limit, original power-pack number and wiring layout.

🔌 Function

The power pack receives charge and timing signals from the stator and timer base, then triggers the ignition coils at the correct timing point.

Common signs of failure:

• No spark on one bank or selected cylinders

• Intermittent spark loss when warm

• Misfire under load

• No-start after stator and timer-base checks

• Spark returns when a known-good power pack is fitted

• RPM limit or timing fault

• Heat, moisture or wiring damage at the module

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
