1130266 Straight Reinforced Nylon Antenna Base 3/4" | Marine Antenna Components

🔧 Product Description

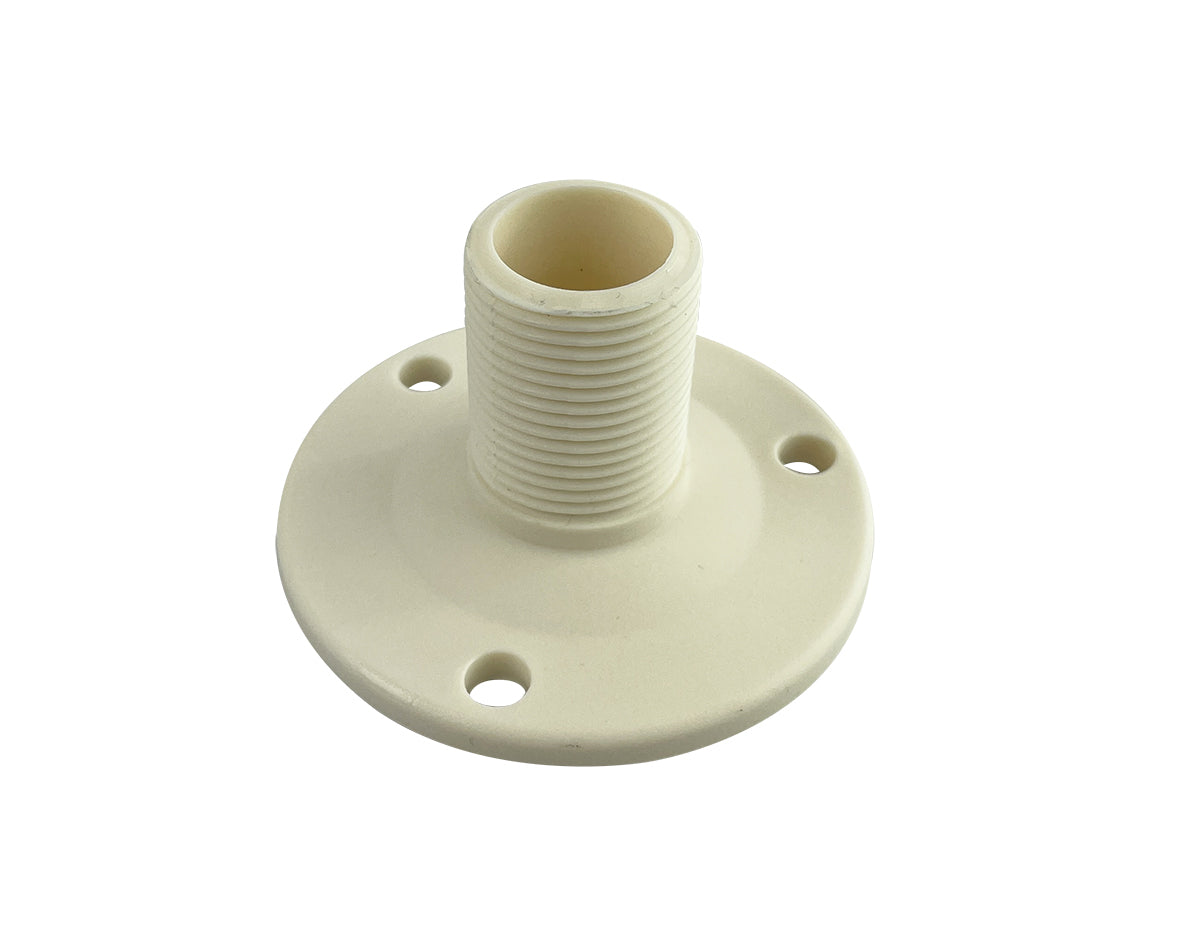

Straight Reinforced Nylon Antenna Base with 3/4" Thread - Part Number: 1130266

A compact fixed antenna base moulded from reinforced marine nylon. The straight post provides a simple permanent mounting point for compatible internally threaded GPS, radio and communications antennas where an adjustable or folding base is not required.

⚙️ Key Features

• Reinforced nylon construction resists corrosion and reduces weight
• Straight fixed-post design keeps the antenna upright
• 3/4-inch threaded antenna connection
• Suitable for exposed marine and outdoor installations
• Compact base suits installations with limited deck space

📏 Specifications

• Antenna connection: 3/4-inch threaded interface
• Material: Reinforced marine nylon
• Mounting style: Fixed straight base
• Colour: Typically white
• Antenna and coaxial cable are not included

🔄 Related & Comparable Options

• Comparable adjustable base: RWB2146 white ABS antenna base with 3/4-inch antenna interface
• Comparable fixed products must be checked for thread gender, pitch and mounting footprint

📡 Compatibility & Application

• Suitable for compatible GPS, AM/FM, communications and other marine antennas using the same 3/4-inch thread
• Best suited to short or compact antennas that do not require lowering for bridges, covers or storage
• Not compatible with standard 1-inch × 14 TPI antenna ferrules unless an approved adaptor is used

🛠️ Installation Guidance

• Mount on a rigid horizontal surface with suitable corrosion-resistant fasteners
• Seal all fastener holes and cable penetrations with marine bedding compound
• Confirm the antenna can rotate onto the thread without fouling nearby structures
• Route coaxial cable with a smooth bend radius and provide strain relief
• Do not overtighten the antenna onto the reinforced nylon thread

📦 Condition

• Brand new
• Supplied as one straight reinforced nylon 3/4" antenna base
• Supplied in original or equivalent packaging
