113396 Sender Converter Module | Marine Electrical Part

🔧 Product Description

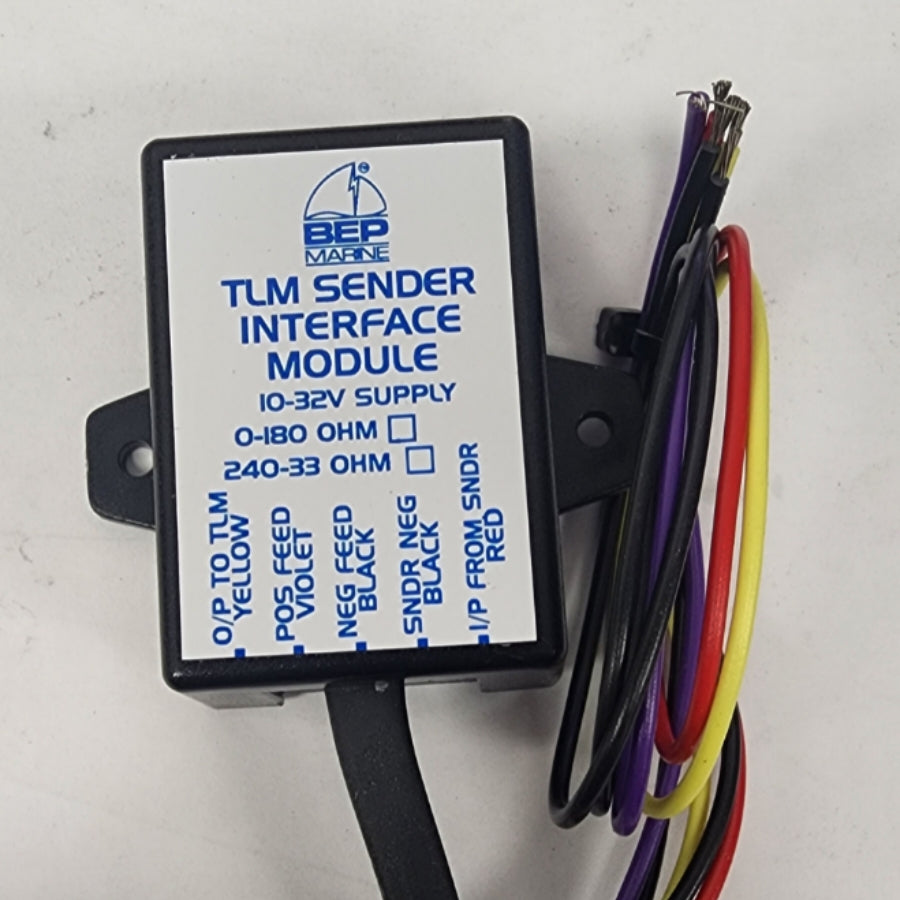

Sender Converter Module - Part Number: 113396

The BEP tank level monitor sender interface: a converter that lets a standard tank sender talk to a BEP monitoring system.

BEP specify it to accept either VDO and Centroid senders, at 10 to 180 ohms, or Teleflex senders at 240 to 33 ohms, with a link on the board switching between the two. The output is 0 to 5 volts. Supply is 10 to 32 volts, and one module is needed per sender.

It is the part that saves pulling a perfectly good sender out of a tank just because the new monitor does not read its resistance range.

⚙️ Key Features

• Converts tank sender resistance to a 0-5V output
• Accepts VDO / Centroid 10-180 ohm senders
• Accepts Teleflex 240-33 ohm senders
• Switchable link selects the sender type
• One module per sender

📏 Specifications

• Input: 10-180 ohm (VDO/Centroid) or 240-33 ohm (Teleflex)
• Output: 0-5V
• Supply voltage: 10-32V DC
• Size: 2.4" x 1.3" x 0.9"

🚤 Compatibility

• VDO and Centroid tank senders
• Teleflex tank senders

🔌 Function

Matches an existing tank sender to a BEP system monitor, so the fuel or water gauge reads correctly without changing the sender in the tank.

📦 Condition

• Brand new genuine product
• Supplied in original packaging
