1140090 Mounting Kit | Genuine Volvo Penta Part

🔧 Product Description

This is the genuine Volvo Penta mounting kit for side-mounted engine control installations, part of the Engine Controls group. It supplies the hardware needed to fit and secure the control unit to the helm or side panel so throttle and shift linkages operate with correct alignment. It is the current replacement for the earlier kit 853102 and covers a broad span of Volvo Penta petrol and diesel marine engines and sterndrives.

🚤 Compatibility

• Engine Family: AD, AQ, TAMD, D, TMD, MS, B, BB, DP, SP, HS, KAMD, MD, KAD
• HP Range: 13-75 HP
• Year Range: Approximately 1980s - 2010s

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM part number 1140090
• System group: Engine Controls
• Mounting kit for side-mount engine control installation
• Supersedes and replaces earlier part number 853102
• Net weight approximately 0.61 kg
• Fits Volvo Penta D1, D2, MD, TMD, TAMD, AD, KAD, KAMD, AQ and B-series marine engines plus SP/DP sterndrives and MS/HS transmissions
• Engine type: Volvo Penta mechanically controlled petrol or diesel marine engine

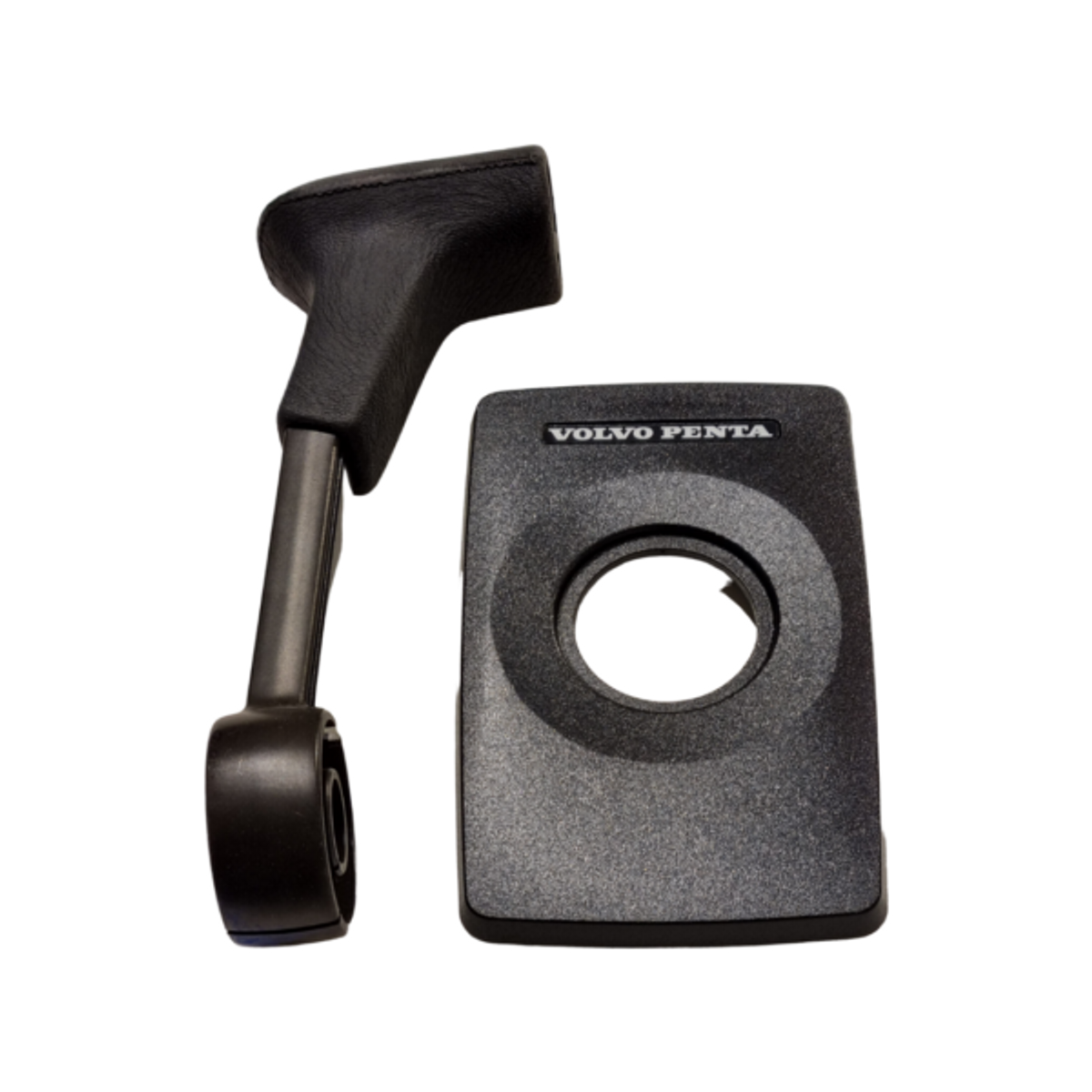

📋 Kit Contents

• Cover - Volvo Penta 853713
• Hand lever - Volvo Penta 852347
• Neutral-release push button - Volvo Penta 853004
• Cross-recessed screw - Volvo Penta 961330
• Split pin - Volvo Penta 17253
• Cable cube - Volvo Penta 839638
• Locking pin - Volvo Penta 852924
• Retainer - Volvo Penta 853423
• Attachment screw - Volvo Penta 839664
• Washer - Volvo Penta 940275
• Lock nut - Volvo Penta 946435
• Hexagon screw - Volvo Penta 963548
• Control mechanism 1140095 and control cables are ordered separately

🔌 Function

The mounting kit provides the fasteners and mounting components required to attach a side-mounted engine control assembly to the boat's helm station. Correct mounting keeps the control housing rigid so shift and throttle cable travel is transmitted accurately to the engine and drive.

⚠️ Common Signs of Failure

• Loose or wobbly control lever caused by slackened or missing fasteners
• Corroded or seized mounting hardware that cannot be re-torqued
• Control housing no longer sitting flush against the panel, causing cable misalignment
• Imprecise or stiff throttle and shift movement traced to movement of the control body
• Cracked or deformed mounting components after impact or over-tightening

🛠️ Service Notes

• Use all the parts supplied and fit them as a set; the kit is matched, and mixing new parts with reused fasteners or bushes defeats the purpose of buying it
• Renew self-locking nuts, lock washers, tab washers and thread-locking compound rather than reusing the originals
• Check what the kit mounts to before assembly — clean out the threads and look for corrosion, wear, elongated holes and cracks around the fixing points
• Leave the fixings finger-tight until everything is located and aligned, then tighten in the order and to the figures given in the workshop manual for your engine
• Recheck the fixings for tightness after the first period of running, since new mountings bed in and settle

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1140090 → Supersedes 853102

OEM / Related Numbers

• 853102 earlier number superseded by this part
• PC-841 related reference
• 853713 related reference
• 852347 related reference
• 853004 related reference
• 1140095 - Separate control mechanism

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003R SOLAS, 120S-B, 740B, 500A, 501A, 501B, 570A, 572A, 740A, 430A, 430B, 431A, 431B, 432A, 434A, 2003TB, 2003TB SOLAS, 230A, 230B, 231LB, 250A, 250B, 251A, 271LB, 275A, 285A, 290A, 120SC, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 570, 500B, 500, 2002, 571A, 430, 2001R
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta AD31, AD31B, AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta AD41P-B, AD41B, AD41L-A, AD41P-A, AD41, AD41A, AD41BJ
• Volvo Penta TAMD41B, TAMD41H-A, TAMD41H-B, TAMD41M-A, TAMD41P-A, TAMD41P, TAMD41A
• Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-A, DP-A2
• Volvo Penta B230, B230E, B230F, B230FB, B230FX
• Volvo Penta AQ131A, AQ131B, AQ131C, AQ131D
• Volvo Penta AQ271A, AQ271C, AQ271B, AQ271D
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
• Volvo Penta AQ151A, AQ151B, AQ151C
• Volvo Penta D41, D41B, D41L-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040B, MD2040-C, MD2040-D
• Volvo Penta MS2B-A, MS2B, MS2V
• Volvo Penta SP-C, SP-A2, SP-C1
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta TMD41A, TMD41B, TMD41L-A
• Volvo Penta AQ171A, AQ171C
• Volvo Penta AQ205LB, AQ205A
• Volvo Penta AQ231A, AQ231B
• Volvo Penta AQ311A, AQ311B
• Volvo Penta KAD42A, KAD42B
• Volvo Penta KAMD42A, KAMD42B
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta AQ125B
• Volvo Penta AQ145B
• Volvo Penta AQ211A
• Volvo Penta BB231A
• Volvo Penta BB261A
• Volvo Penta BB740A
• Volvo Penta D2002AG
• Volvo Penta D2003AG
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MD31A
• Volvo Penta MS4B
• Volvo Penta MS5B
• Volvo Penta TAMD22P-B
