1140125 Ball Valve | Genuine Volvo Penta Part

🔧 Product Description

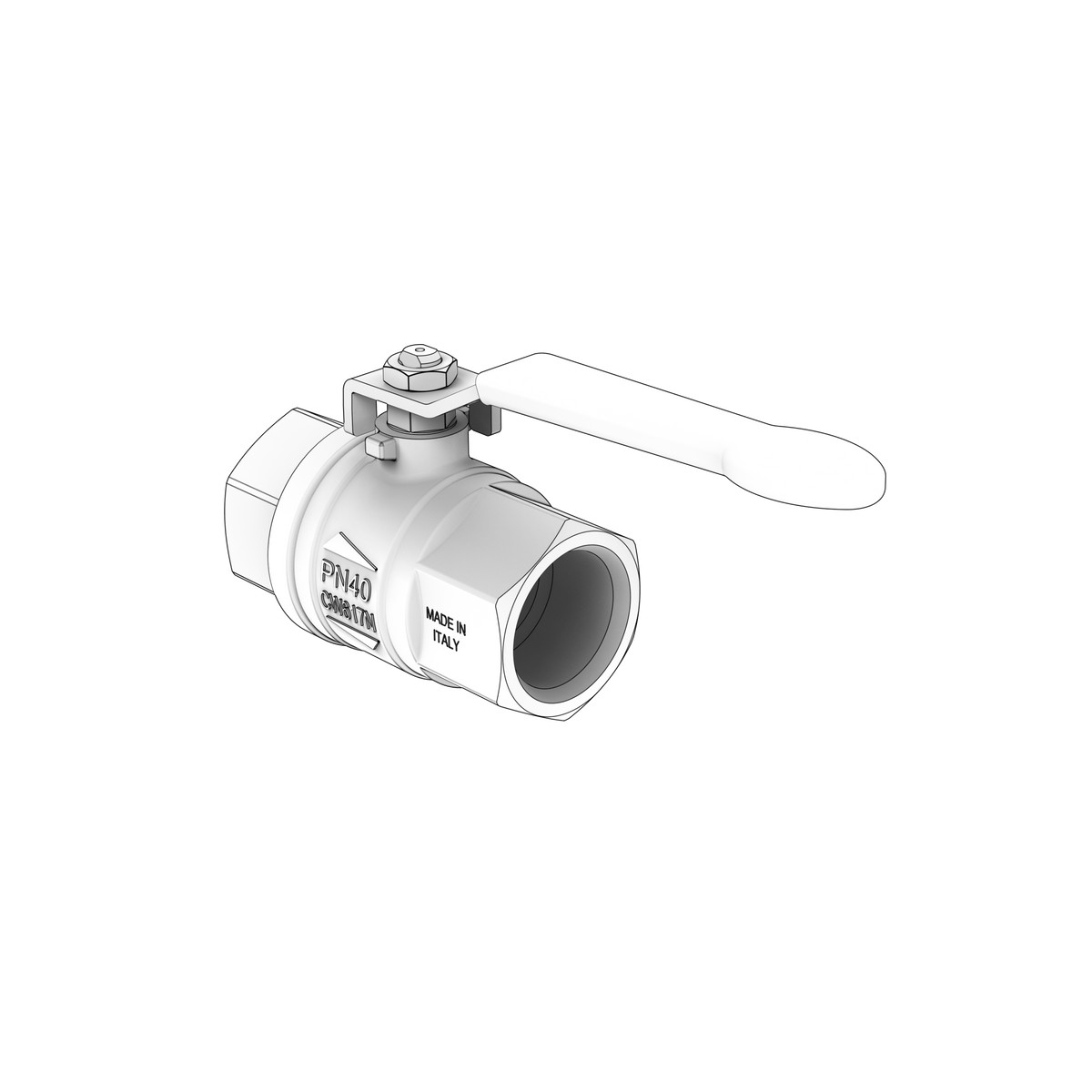

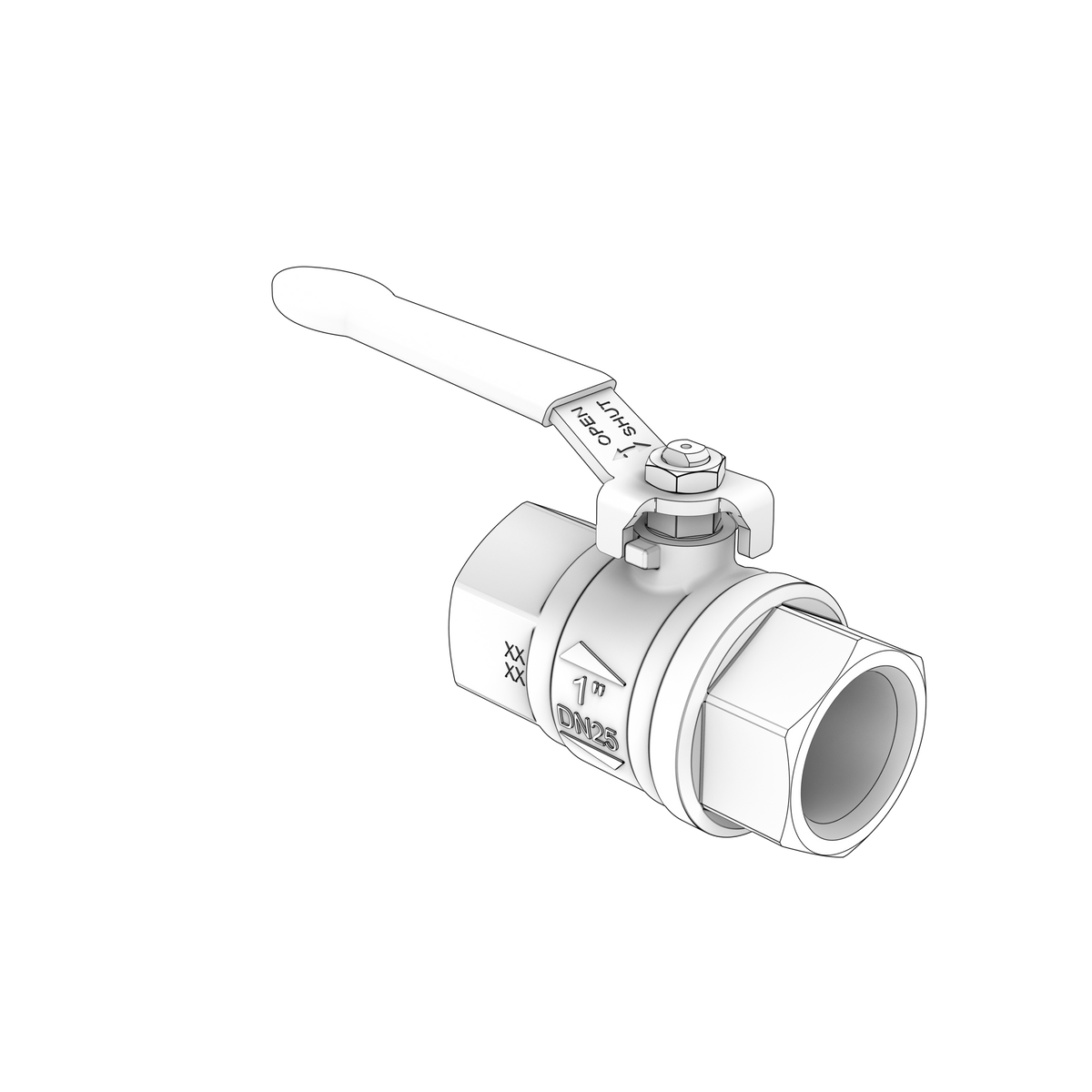

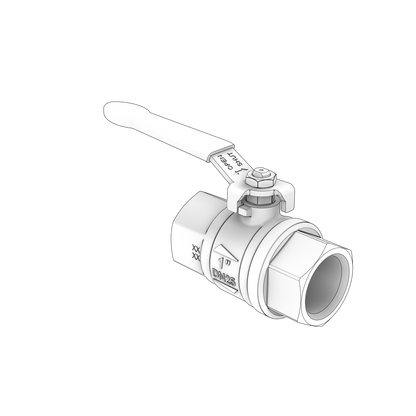

This is the genuine Volvo Penta 25 mm ball valve (part number 1140125), a cooling system shut-off valve used to isolate raw-water or coolant lines for servicing and winterisation. The D=25 mm bore is what separates this valve from other ball valves sharing the same name, so confirm the line size before ordering. It supersedes earlier part numbers 21165588 and 828239, giving it broad coverage across Volvo Penta marine diesel installations.

🚤 Compatibility

• Engine Family: D, AD, TAMD, TMD, BB, HS, MS, KAMD, MD, KAD
• HP Range: 40-220 HP
• Year Range: Approximately late 1980s - 2010s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1140125
• Bore dimension: D=25mm
• System group: Cooling System
• Net weight: 0.80 kg
• Supersedes earlier part numbers 21165588 and 828239
• Fits D2, D3, D5, D7, D8, D9, D13 and D16 series plus AD31/AD41, TMD/TAMD, KAD/KAMD and MD series marine engines
• Engine type: Volvo Penta inboard or waterjet marine diesel with separate 32mm raw-water intake
• Also supersedes Volvo part number 836904

🔌 Function

The ball valve provides a quarter-turn shut-off in a cooling system line, allowing water flow to be stopped for service, draining or winterisation. When open it gives a full-bore flow path with minimal restriction to cooling circulation.

⚠️ Common Signs of Failure

• Handle stiff, seized or impossible to turn through a full quarter turn
• Weeping or dripping from the valve stem or body joints
• Valve fails to fully seal when closed, allowing water past the ball
• Visible corrosion, scaling or salt deposits restricting the bore
• Reduced coolant or raw-water flow with the valve in the fully open position

🛠️ Service Notes

• Fit the valve so the handle is accessible and can swing through its full travel, and so any flow direction marking on the body is respected
• Hold the valve body with a spanner while tightening pipework into it, rather than taking the load through the valve itself
• Use only a sealing method suited to the thread form, applied sparingly so nothing can be carried into the bore
• Open and close the valve fully several times after fitting and check for leaks under working pressure; a ball valve should be left fully open or fully shut, never part open as a throttle
• Exercise the valve at regular intervals in service — the one left in the same position all season is the one that seizes when you need it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1140125 → Supersedes 21165588

OEM / Related Numbers

• 828239 earlier number superseded by this part
• 21165588 earlier number superseded by this part
• 1140129 - 32mm cooling-water inlet assembly
• 836876 - Intake strainer
• 836879 - Flange nut
• 828696 - 45-degree hose attachment
• 961670 - Hose clamp

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-B, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-130I-B, D3-160I-B, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D9A-A, D9A2J, D9A2G, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2A, D9A2C, D9A2E
• Volvo Penta D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta AD31, AD31B, AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta AD41P-B, AD41B, AD41D, AD41, AD41A, AD41BJ
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A3-A MP
• Volvo Penta TAMD41B, TAMD41D, TAMD41M-A, TAMD41P, TAMD41A
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta TAMD31M, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta D41, D41B, D41D
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta MD22A, MD22L, MD22P
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta TMD31A, TMD31B, TMD31D
• Volvo Penta TMD41A, TMD41B, TMD41D
• Volvo Penta MD2010, MD2010B
• Volvo Penta MD2020, MD2020B
• Volvo Penta MD2030, MD2030B
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta BB740A
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MD31A
• Volvo Penta MS5B
• Volvo Penta 740A
• Volvo Penta TAMD22P-B
