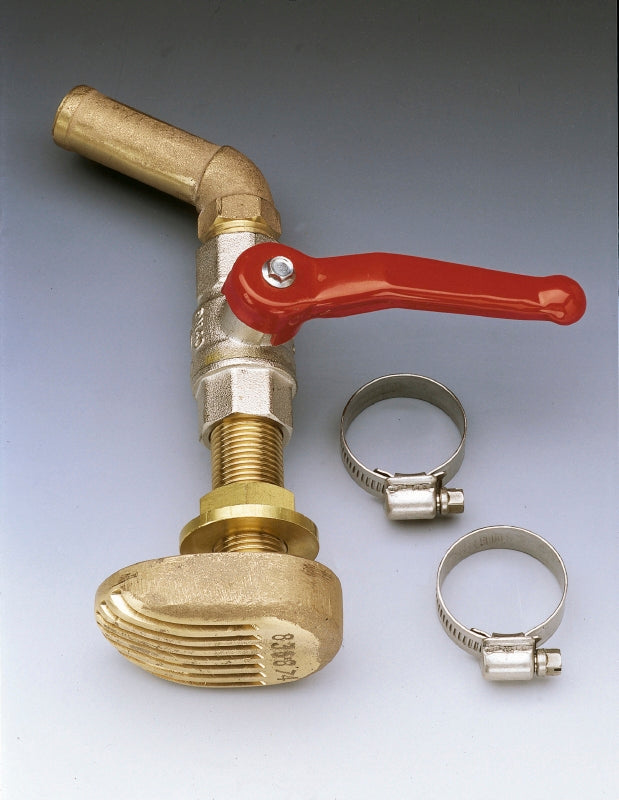

1140129 Cooling Water Inlet | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta cooling water intake for 32 mm internal diameter hose, weighing 1.678 kg and listed for 136 applications across the D2, D3, D9, AD, TMD, TAMD, MD, KAD and KAMD families. The intake is a through-hull fitting with a strainer, installed through the bottom of the hull, and is supplied with the fitting and strainer, fittings for the pipe connection, a shut-off valve and hose clips. Hose bore is what separates the range - 19, 32, 38 and 50 mm - so match the intake hose before ordering. It supersedes 841723.

🚤 Compatibility

• Engine Family: D, TAMD, AD, TMD, HS, MS, KAMD, MD, KAD
• HP Range: 50-220 HP
• Year Range: Approximately late 1980s - 2010s

Full model list at the end of this description.

⚙️ Key Features

• For 32 mm internal diameter hose
• Through-hull fitting with strainer
• Includes fittings for pipe connection, shut-off valve and hose clips
• 1.678 kg
• Supersedes 841723
• 136 applications
• 32mm (Volvo assembly listing)
• Supplied with the shut-off valve and pipe connection fittings
• Internal hose diameter: 32 mm
• Fits: Seawater cooling circuits with 32 mm hose

📋 Kit Contents

• 32mm through-hull cooling-water intake - Volvo Penta 1140129
• External intake strainer - Volvo Penta 836876
• Flange nut - Volvo Penta 836879
• Shut-off ball valve - Volvo Penta 1140125
• 45-degree hose attachment - Volvo Penta 828696
• Hose clamp - Volvo Penta 961670
• Connection and sealing components supplied with the complete assembly

🔌 Function

Forms the inlet through which raw seawater is drawn into the engine's cooling circuit, giving a sealed connection point between the hull pickup and the seawater pump.

⚠️ Common Signs of Failure

• Reduced or lost raw water flow and overheating alarms
• Seawater weeping or dripping at the intake hose connection
• Corrosion, pitting or cracking of the intake body
• Air drawn into the raw water circuit, so the pump primes erratically
• Marine growth or debris restricting the strainer

🛠️ Service Notes

• On a motor boat the strainer faces forward so water is forced up into the system under way; on a sailing boat it faces aft to keep water out of the system when sailing with the engine stopped
• Close the shut-off valve before the boat is towed and before working on the intake
• Order by hose bore - 861495 and 861496 are 19 mm, 3587668 is 38 mm and 1140127 is 50 mm
• On a motor boat point the strainer forward; on a sailing boat point it aft so water is not forced in under sail
• When a motor boat is being towed, the shut-off valve must be closed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1140129 → Supersedes 841723

OEM / Related Numbers

• 841723 earlier number superseded by this part
• 836876 related reference
• 836879 related reference
• 1140125 related reference
• 828696 related reference
• 961670 related reference

Aftermarket / Verified Equivalents

• Groco: 1-1/4-inch bronze scoop strainer, seacock and hose-tail system

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-B, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-130I-B, D3-160I-B, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D9A-A, D9A2J, D9A2G, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2A, D9A2C, D9A2E
• Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta MD22A, MD22L, MD22P
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta TAMD41D, TAMD41P
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta AD41D
• Volvo Penta D41D
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MS5B
• Volvo Penta TAMD22P-B
• Volvo Penta TMD31D
• Volvo Penta TMD41D
