1140463 Rudder Indicator Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta 12 V rudder indicator kit for Aquamatic sterndrives, weighing 0.95 kg. This is the drive version: the sensor connects to the steering arm of the drive and the helm instrument shows the drive steering angle, which is an invaluable aid when manoeuvring and mooring in a crowded harbour. It is a complete kit containing the instrument, sensor, cables, front ring and the connection parts needed at the drive, and it is listed for the 290, SP A-C, DP A-E, DP-S and DPG drives across 65 engine applications. It supersedes 858886, which in turn replaced 853178.

🚤 Compatibility

• Engine Family: AD, D, TSK, TMD, BB, DP, SP, MS, HS, TAMD, MD, KAD, KAMD
• Year Range: Approximately 1980s - 2000s

Full model list at the end of this description.

⚙️ Key Features

• 12 V rudder indicator kit for drives
• Sensor connects to the steering arm of the drive and reads drive steering angle
• Fits the 290, SP A-C, DP A-E, DP-S and DPG drives
• Includes instrument, sensor, cables, front ring and connection parts
• 0.95 kg and 65 engine applications
• Supersedes 858886, which in turn replaced 853178
• Shows the drive steering angle
• Complete kit including the parts to connect the sensor to the drive's steering arm
• Voltage: 12 V
• Fits: drives 290, SP A-C, DP A-E, DP-S and DPG

📋 Kit Contents

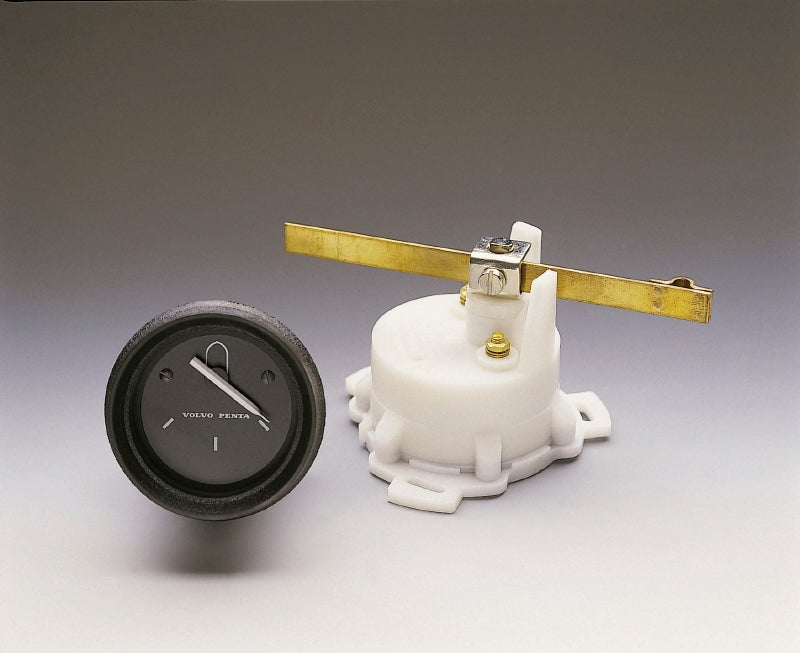

• 863944 12V rudder indicator instrument - 1
• 858643 front ring - 1
• 863945 bulb socket - 1
• 863946 12V 1.2W red instrument bulb - 1
• 837772 rudder / drive position sensor - 1
• 853176 sensor mounting bracket - 1
• 853177 intermediate lever - 1
• Sensor-to-drive linkage and connection hardware - 1 set
• Instrument-to-sensor electrical cable and terminals - 1 set

🔌 Function

Senses the steering angle of the Aquamatic sterndrive at its steering arm and displays it on a helm gauge, so the operator can see where the drive is pointing when manoeuvring, docking or steering from a second station.

⚠️ Common Signs of Failure

• Gauge needle stays at zero or does not move when the drive is turned
• Reading drifts off centre or no longer matches actual drive position
• Erratic or jumping needle from a failing sender or a poor connection
• Corroded connectors or damaged wiring at the sender on the drive
• Gauge fails to illuminate or read at all when the ignition is switched on

🛠️ Service Notes

• Order by installation type, not by weight: this is the sterndrive kit and 1140465 is the rudder kit, and only 25 grams separate the two
• This kit carries the connection parts for the drive steering arm, which the rudder kit does not
• Zero the sender with the drive held dead ahead so the gauge centres correctly
• This is the drive version - 1140465 is the kit for rudder installations

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1140463 → Supersedes 858886 → Supersedes 853178

OEM / Related Numbers

• 858886 earlier number superseded by this part
• 853178 earlier number superseded by this part
• 3594073 later related kit
• 863944 12V rudder indicator instrument
• 863945 bulb socket
• 863946 12V 1.2W red bulb
• 858643 front ring
• 837772 position sensor
• 853176 sensor bracket
• 853177 intermediate lever
• 874416 24V rudder indicator instrument - instrument only

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 740B, 500A, 501A, 501B, 570A, 572A, 740A, 430A, 430B, 431A, 431B, 432A, 434A, 230A, 230B, 250A, 250B, 251A, 570, 500B, 571A, 430
• Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-E, DP-A, DP-A2
• Volvo Penta AD31B, AD31D, AD31D-A, AD31XD
• Volvo Penta SP-C, SP-E, SP-A2, SP-C1
• Volvo Penta AD41B, AD41D, AD41BJ
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta TAMD31M, TAMD31B, TAMD31D
• Volvo Penta TAMD41B, TAMD41D, TAMD41P
• Volvo Penta D41B, D41D
• Volvo Penta TMD31B, TMD31D
• Volvo Penta TMD41B, TMD41D
• Volvo Penta BB740A
• Volvo Penta HS1A
• Volvo Penta MD31A
• Volvo Penta MS4B
• Volvo Penta MS5B
• Volvo Penta TAMD42B
• Volvo Penta TSK DP-E
