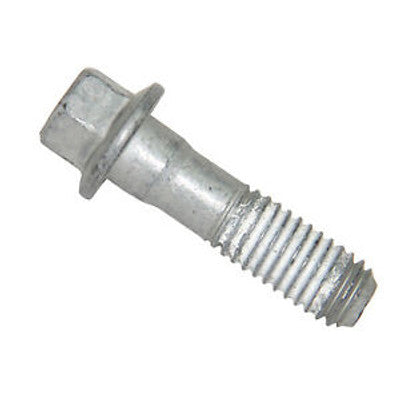

1140565 Bolt | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta bolt from the steering system group, used as a fastener within the steering linkage and related hardware on sterndrive-equipped installations. It is a light fastener with a net weight of approximately 0.032 kg, supplied as a single item. Correct fastener replacement is important in steering assemblies, where clamping force and thread integrity are directly linked to safe helm control.

🚤 Compatibility

• Engine Family: AD, D, TMD, BB, DP, SP, MS, TAMD, KAD
• HP Range: Approximately 130-200 HP
• Year Range: Approximately 1980s - 1990s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1140565
• System group: Steering
• Net weight approximately 0.032 kg (31.75 g)
• Fits AD31, AD41, D41, TMD31, TAMD31 and KAD42 series engines along with SP and DP series sterndrives and associated 230/250/430/431/432/434/500/570/740 units
• Supplied as an individual fastener
• Engine type: Volvo Penta sterndrive with manual steering cable

🔌 Function

Secures and retains components within the steering assembly, maintaining correct clamping force and alignment between mating parts. Loss of this fastener's integrity allows movement or separation in the steering linkage.

⚠️ Common Signs of Failure

• Corrosion or pitting from saltwater exposure, making removal difficult
• Damaged, stripped or seized threads that prevent correct torque being reached
• Repeated loosening in service, producing play or knocking in the steering linkage
• Stretched, bent or sheared shank after over-torquing or shock loading
• Rounded or damaged head preventing proper tool engagement

🛠️ Service Notes

• Clean and inspect the threads in the casting and on the bolt, and check the bolt is the correct length for the hole it goes into — one that bottoms will not clamp, and one that is too short will strip the thread
• Tighten to the torque figure and sequence given in the workshop manual for your engine; where a stretch or angle-tighten procedure is specified the bolt is single-use and must be renewed
• Lubricate or fit dry exactly as the manual states — the same torque figure applied to an oiled thread puts far more load into the bolt than a dry one
• Fit new washers and locking devices, and use the thread locking or sealing compound specified for that joint
• Discard any bolt that is stretched, necked, corroded in the shank or has damaged threads rather than trying to clean it up and reuse it

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 1140566 related clevis pin
• 1140567 related link rod
• 1140568 related steering pipe
• 1140579 related lock washer
• 872388 related steering-cable attachment
• 872311 related tab washer
• 944149 related split pin

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 740B, 501B, 570A, 572A, 740A, 430A, 430B, 431A, 431B, 432A, 434A, 230B, 250B, 570, 500B, 430
• Volvo Penta AD31B, AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-A, DP-A2
• Volvo Penta AD41B, AD41D, AD41L-A, AD41P-A, AD41BJ
• Volvo Penta D41B, D41D, D41L-A
• Volvo Penta SP-C, SP-A2, SP-C1
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta BB740A
• Volvo Penta KAD42A
• Volvo Penta MS4B
• Volvo Penta TMD31D
