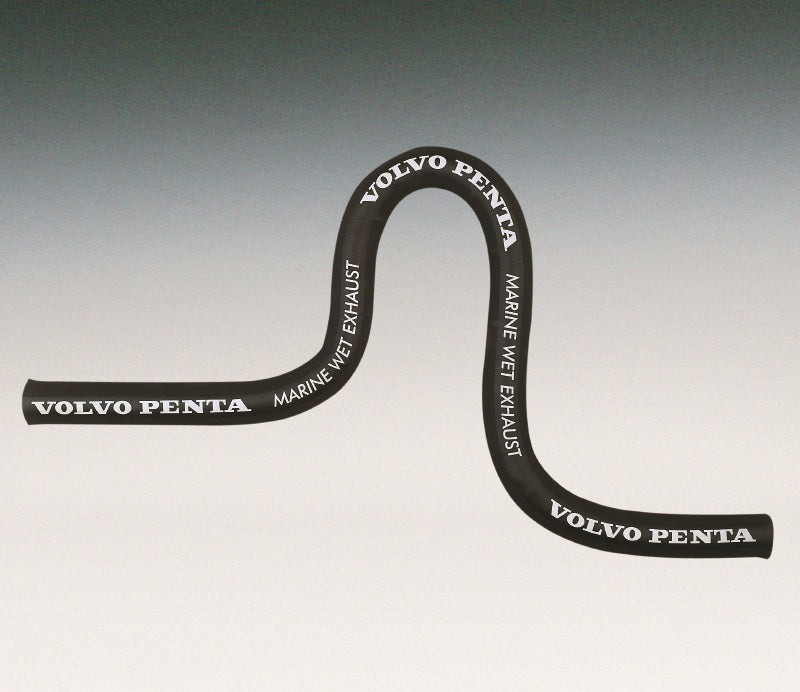

1140667 Exhaust Hose | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta rubber exhaust hose for marine wet exhaust systems, in the 89 mm internal diameter size with a 101 mm external diameter and a minimum bend radius of 535 mm. It weighs 4.536 kg and supersedes 828729. The hose conforms to ISO 13363 type 2, rated to plus 580 degrees Celsius, and to SAE J2006 type R2, is reinforced with synthetic textile layers and an embedded steel wire helix, and has a plain, smooth inner surface for minimum exhaust back pressure and a smooth outer surface, so it resists heat, seawater, vibration and collapse on curved engine-room runs. Volvo Penta lists it sold by the metre, with stainless steel hose clip 22274887, in this same run, as the recommended clip.

🚤 Compatibility

• Engine Family: AD, D, TMD, HS, TAMD
• HP Range: 40-220 HP

Full model list at the end of this description.

⚙️ Key Features

• 89 mm internal diameter, 101 mm external diameter
• Minimum bend radius 535 mm
• Conforms to ISO 13363 type 2, rated to plus 580 degrees Celsius, and SAE J2006 type R2
• Synthetic textile layers with an embedded steel wire helix
• Smooth inner bore for minimum exhaust back pressure
• Recommended stainless steel hose clip 22274887
• Sold by the metre
• 4.536 kg
• Supersedes 828729
• Reinforced by synthetic textile layers and an embedded steel wire helix
• Plain, smooth inner surface for minimum exhaust back pressure
• Smooth outer surface
• Minimised bend radius for easy and quick installation
• Also listed in the cooling system section as a rubber hose designed to withstand both suction and pressure
• Also listed in the cooling system section as a rubber hose designed to withstand both suction and pressure
• Also listed in the cooling system section as a rubber hose designed to withstand both suction and pressure
• External diameter: 101 mm
• Internal diameter: 89 mm
• Min bend radius: 535 mm
• Supply: per metre
• Fits: Marine wet exhaust systems

🔌 Function

Conveys hot exhaust gas mixed with cooling water away from the engine to the silencer, waterlock or transom outlet, absorbing engine movement while keeping the path gas and water tight.

⚠️ Common Signs of Failure

• Soot staining, water weeping or exhaust smell around the hose or clamp joints
• Cracking, hardening or surface crazing of the rubber from heat and age
• Soft, swollen or collapsing sections that restrict exhaust flow
• Bulges or delamination indicating internal reinforcement failure
• Chafing or wear where the hose contacts bulkheads, brackets or other components

🛠️ Service Notes

• Order by bore - the 76 mm hose is 888212 and the 102 mm is 1140668, and the published weights do not rank with bore
• Never route it tighter than the 535 mm minimum bend radius
• Fit the recommended clip 22274887 and renew both clips with the hose
• Recommended stainless steel hose clip for this size is 22274887
• Do not bend it tighter than the 535 mm minimum bend radius

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1140667 → Supersedes 828729 → Supersedes 828467 → Supersedes 828302

OEM / Related Numbers

• 828729 earlier number superseded by this part
• 828467 earlier number superseded by this part
• 828303 earlier number superseded by this part
• 828302 earlier number superseded by this part
• ISO 13363 Type 2 marine wet-exhaust hose specification
• SAE J2006 R2 marine wet-exhaust hose specification

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140I-D, D3-140I-E, D3-140I-F, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta AD31D, AD31D-A, AD31XD
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta TAMD41D, TAMD41P
• Volvo Penta AD41D
• Volvo Penta D41D
• Volvo Penta HS1A
• Volvo Penta TMD31D
• Volvo Penta TMD41D
