1140671 Exhaust Hose | Genuine Volvo Penta Part

🔧 Product Description

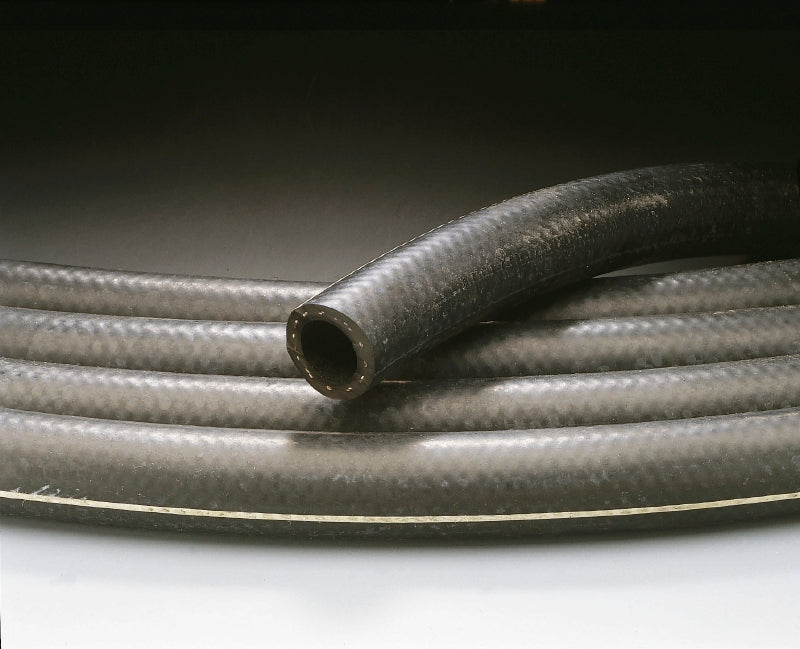

Genuine Volvo Penta rubber exhaust hose for marine wet exhaust systems, in the 63 mm internal diameter size with a 75 mm external diameter and a minimum bend radius of 355 mm, weighing 1.624 kg and listed for the D11C series. The hose conforms to ISO 13363 type 2, rated to plus 580 degrees Celsius, and to SAE J2006 type R2. It is reinforced with synthetic textile layers and an embedded steel wire helix, and has a plain, smooth inner surface for minimum exhaust back pressure and a smooth outer surface, so it resists heat, seawater, vacuum and engine-room vibration. Volvo Penta lists it sold by the metre, with stainless steel hose clip 961674, in this same run, as the recommended clip.

🚤 Compatibility

Typically suits:

• Volvo Penta D11C1-A MP
• Volvo Penta D11C3-A MP
• Volvo Penta D11C2-A MP
• Volvo Penta D11C4-A MP

• Engine Family: D
• Year Range: Approximately 2010s for the confirmed D11C2-A MP arrangement

⚙️ Key Features

• 63 mm internal diameter, 75 mm external diameter
• Minimum bend radius 355 mm
• Conforms to ISO 13363 type 2, rated to plus 580 degrees Celsius, and SAE J2006 type R2
• Synthetic textile layers with an embedded steel wire helix
• Smooth inner bore for minimum exhaust back pressure
• Recommended stainless steel hose clip 961674
• Sold by the metre
• 1.624 kg
• Listed for D11C series marine diesel engines
• Reinforced by synthetic textile layers and an embedded steel wire helix
• Plain, smooth inner surface for minimum exhaust back pressure
• Smooth outer surface
• Minimised bend radius for easy and quick installation
• Also listed in the cooling system section as a rubber hose designed to withstand both suction and pressure
• Also listed in the cooling system section as a rubber hose designed to withstand both suction and pressure
• Also listed in the cooling system section as a rubber hose designed to withstand both suction and pressure
• External diameter: 75 mm
• Internal diameter: 63 mm
• Min bend radius: 355 mm
• Supply: per metre
• Fits: Marine wet exhaust systems; also listed among the engine cooling system rubber hoses

🔌 Function

Forms the flexible section of a wet exhaust run, allowing exhaust gas and cooling water to pass between rigid pipework while absorbing engine movement and mounting tolerances.

⚠️ Common Signs of Failure

• Cracking, splitting or surface crazing of the rubber, especially near the clamped ends
• Softening, swelling or hardening from heat exposure
• Exhaust gas or water leaking at the hose or clamp joints
• Collapse or ballooning of the hose wall under pressure or vacuum
• Loss of shape or kinking, restricting flow through the hose

🛠️ Service Notes

• Order by internal diameter - the 57 mm hose is 1140666 and the 76 mm is 888212, and the published weights do not rank with bore
• Never route it tighter than the 355 mm minimum bend radius
• Fit the recommended clip 961674 and renew both clips with the hose
• Recommended stainless steel hose clip for this size is 961674
• Do not bend it tighter than the 355 mm minimum bend radius

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 961674 related Volvo Penta hose clamp
• ISO 13363 Type 2 / SAE J2006 R2 marine reinforced-hose specification where used for exhaust

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
