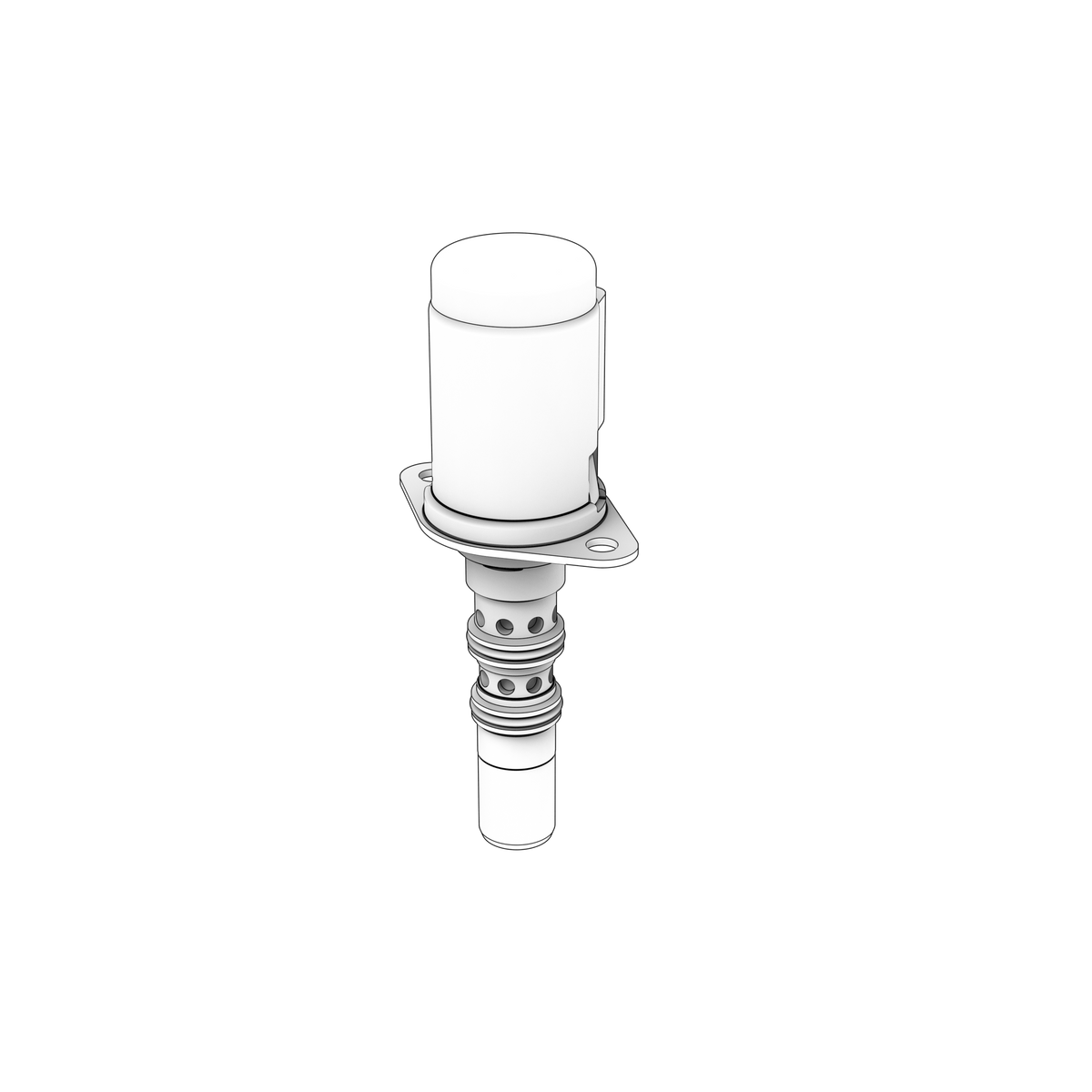

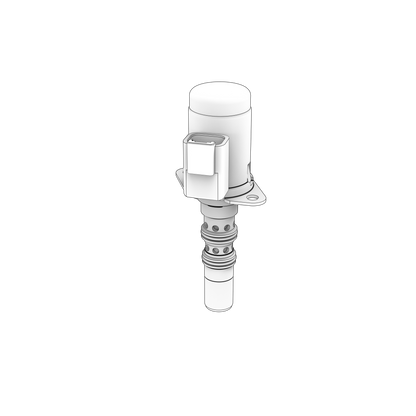

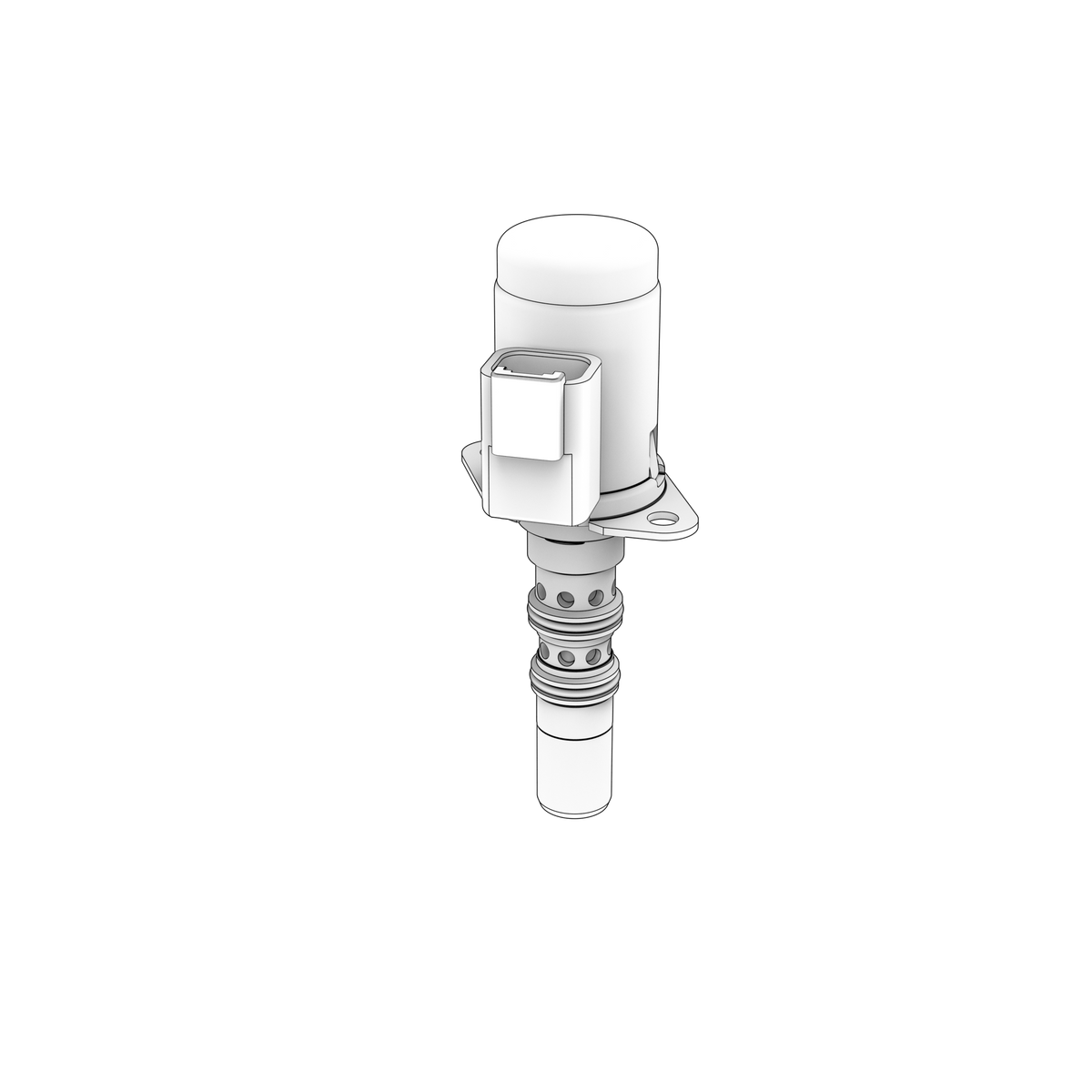

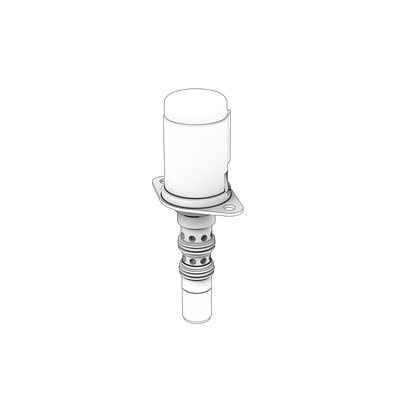

11418522 Valve | Genuine Volvo Penta Part

🔧 Product Description

This is an electrically operated valve from the Marine Propulsion group, supplied in the 12/24V rating so it suits both 12-volt and 24-volt vessel electrical systems. It is used across Volvo Penta D4, D6, D8, D11 and D13 marine diesel installations, including IPS drive packages, where it opens or closes a fluid or air circuit on an electrical signal. The 12/24V designation is what distinguishes this valve from otherwise similarly named alternatives, so the voltage rating should be matched when ordering.

🚤 Compatibility

• Engine Family: D, IPS, DPI
• HP Range: 150-440 HP
• Year Range: Approximately 2000s - 2020s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 11418522
• 12/24V rating, suitable for both 12-volt and 24-volt system voltages
• System group: Marine Propulsion
• Net weight approximately 0.28 kg
• Fits D4, D6, D8, D11 and D13 series marine diesel engines, including IPS installations
• Engine type: Volvo Penta electronically controlled marine pod / sterndrive hydraulic transmission
• 2 used per assembly

🔌 Function

The valve opens or closes a circuit in response to an electrical control signal, allowing the engine management or control system to regulate flow within its circuit. Correct operation is required for the affected system to respond as commanded.

⚠️ Common Signs of Failure

• No audible actuation or no response when the circuit is energised
• Open-circuit or out-of-specification coil resistance on electrical testing
• Leakage or seepage past the valve seat when it should be closed
• Sticking, sluggish or intermittent operation causing erratic system behaviour
• External corrosion or damage at the electrical connector or terminals

🛠️ Service Notes

• Work clean — a valve is a precision component, and dirt or swarf carried in on the sealing faces is the commonest reason a new one fails early
• Fit new sealing rings, gaskets or washers wherever the original used them rather than reusing the old ones, and lubricate them lightly so they seat without rolling or nipping
• Check the seat, bore or housing the valve fits into for corrosion, scoring or distortion; a valve only seals as well as the face it beds on
• Tighten fixings and threaded connections to the figures and in the order given in the workshop manual for your engine — a valve body is easily distorted by overtightening
• After fitting, bleed or refill the system as required, then run the engine and check the valve for leaks and for correct operation before the boat is used

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 968208 related O-ring
• 22992495 related pressure / position sensor

Aftermarket / Verified Equivalents

• SLP: SEN-8522 IPS shift solenoid valve

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B2-A MP, D11A-D MP, D11A-E MP
• Volvo Penta D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-440A-G
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS30-E, IPS30-D
• Volvo Penta D8A4-A MP
• Volvo Penta DPI-A
• Volvo Penta IPS2-B
• Volvo Penta IPS20-E
