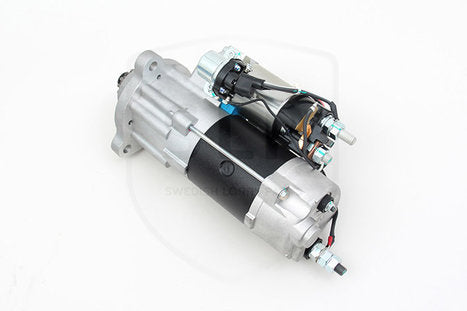

11423474 Starter Motor | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta heavy-duty 24-volt starter motor for D9, D11 and D12 industrial and construction engines. The insulated starter uses a 12-tooth pinion and an output of approximately 7.0-7.5kW, depending on the recognised replacement manufacturer specification.The replacement unit must match rotation, pinion, mounting flange, nose length, terminal arrangement and over-crank protection requirements.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1170-72VE

• Engine Family: TAD
• Year Range: Approximately 2000s - 2010s

⚙️ Key Features

• Genuine Volvo Penta 24V heavy-duty starter motor
• Correct Volvo Penta part number 11423474
• Approximately 7.0-7.5kW output with 12-tooth pinion
• Used on Volvo D9, D11 and D12 engine families
• Engine type: Volvo inline 6-cylinder heavy-duty diesel, 24V starting system

🔌 Function

The starter motor engages the engine flywheel ring gear and rotates the crankshaft fast enough for the engine to fire and run under its own power. It draws high current from the battery bank through the starting circuit for the duration of the cranking cycle.

⚠️ Common Signs of Failure

• Engine cranks slowly or not at all despite healthy, fully charged batteries
• Audible click from the solenoid with no rotation of the engine
• Grinding or harsh meshing noise indicating worn pinion or ring gear engagement
• Starter continues to spin or fails to disengage after the engine fires
• Intermittent no-start conditions, burning smell, or scorched terminals and cabling at the starter

🛠️ Service Notes

• Disconnect the batteries before touching starter cables, and label the main and control connections as they come off
• Inspect the ring gear teeth before fitting a new motor; a chipped or worn ring gear will ruin the new pinion
• Mount the motor square on clean faces with whatever shims the installation uses, so pinion engagement matches what the workshop manual for your engine specifies — never leave shims out to make it fit
• Clean the main and earth terminals back to bright metal, tighten to the specified figure and refit the insulating boots; a great many failed starters are really voltage drop in the cables and earth path
• Crank with the engine unable to start first, listening for clean engagement and release, then feel the terminals for heat after several attempts

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3595446 earlier / related Volvo starter reference
• 20450305 earlier / related Volvo starter reference
• 85000295 and 85000526 related Volvo service references

OEM / Related Numbers

• 3595446 related reference
• 20450305 related reference
• 85000295 related reference
• 85000526 related reference

Other-Brand OEM Numbers

• Prestolite Electric / Leece-Neville: M105R3509SE
• Mitsubishi M009T82171 / M009T82172 / M009T82173 / M009T82174
• MAHLE Original: MS1038
• Mitsubishi Electric: matched M009T8217-series starter after flange and electrical verification
• Mitsubishi: M009T82172
• Mitsubishi: M009T82173
• Mitsubishi: M009T82174
• Mitsubishi: M009T82671
• Mitsubishi: M009T82672
• Bosch: 0 001 330 057
• Bosch: 0 986 024 990
• Bosch: F 042 003 080
• Denso: 428000-0131
• Hella: 8EA 012 586-221
• AD KüHNER 101451P

Aftermarket / Verified Equivalents

• Delco Remy: DRS0955
• BV PSH: 811.535.123.311
• BV PSH: 811.535.123.371
• AS-PL: S1124
• AS-PL: S1125
• Delco Remy: 19011511
• Delco Remy: 19011524
• Delco Remy: 19080063
• Delco Remy: 19081040
• Delco Remy: 8200029
• Delco Remy: 8200419
• Delco Remy: 8200447
• Delco Remy: 8200448
• Delco Remy: 8200726
• Delco Remy: 8300014
• Delco Remy: DRS0319
• BV PSH 811.535.123.311 / 811.535.123.371

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
