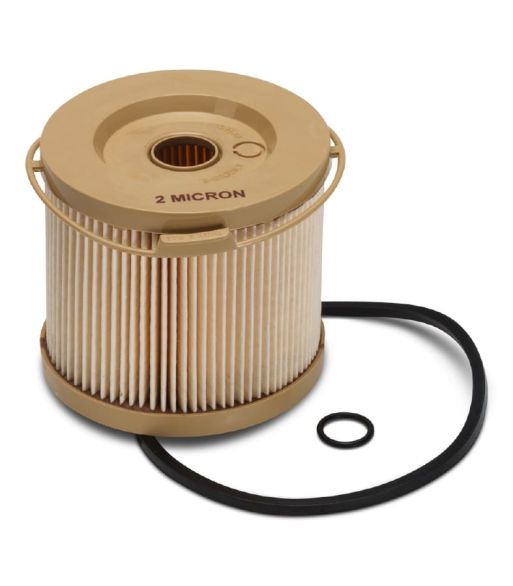

1147147 Fuel Filter Insert | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta 2 micron filter element for the fuel filter and water separator housings 877762, 877763, 877764 and 22677639, from the Fuel System group, weighing 0.118 kg and listed for 320 applications across the D, TAMD, AD, TMD, MS and HS series. The 2 micron rating is the finest of the three offered for these housings and is what distinguishes it from the 10 micron 861014 and the 30 micron 3581760, both listed in this same run, so confirm the rating your installation calls for before ordering.

🚤 Compatibility

• Engine Family: D, TAMD, AD, TMD, MS, HS, KAMD, MD, KAD
• HP Range: 13-480 HP
• Year Range: Approximately 1980s onward, dependent on engine and accessory installation

Full model list at the end of this description.

⚙️ Key Features

• 2 micron rating - the finest of the three offered for these housings
• For filter housings 877762, 877763, 877764 and 22677639
• 861014 is the 10 micron element and 3581760 the 30 micron for the same housings
• 0.118 kg
• 320 applications across six engine series
• Degree of separation: 2 micron
• Fits: Fuel filter/water separator housings 877762, 877763, 877764 and 22677639

🔌 Function

Filters fine particulate contamination and separates water out of the diesel supply, protecting the injection pump and injectors, and is renewed at the scheduled fuel filter interval.

⚠️ Common Signs of Failure

• Loss of power, hesitation or rough running under load as the element clogs
• Hard starting or engine stalling caused by restricted fuel flow
• Visible water or sediment accumulating in the filter bowl
• High vacuum or restriction reading on the fuel filter gauge
• Fuel weeping or air being drawn in around a distorted or aged sealing ring

🛠️ Service Notes

• The 10 and 30 micron elements are the ones Volvo Penta names as recommended for these separators, so fit the 2 micron only where the installation specifies it
• Renew the sealing rings with the element, fill the housing with clean fuel and bleed the system before starting
• Three ratings are offered for these housings - 10, 30 and 2 micron - so confirm the rating the installation calls for

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 877762 related Volvo Penta fuel / water separator
• 877763 related Volvo Penta fuel / water separator
• 877764 related Volvo Penta fuel / water separator
• 22677639 related Volvo Penta fuel / water separator
• 861014 related 10-micron filter insert
• 3581760 related 30-micron filter insert

Other-Brand OEM Numbers

• VOE1147147
• Baldwin: PF598
• Hengst: 528200045
• MANN-FILTER: P 8016 X
• WIX: 33794
• Fleetguard: FS20101

Aftermarket / Verified Equivalents

• Parker Racor: 2010SM
• Racor: 2010SM-OR
• RECMAR: RAC2010SM-OR
• UFI: 26.731.00
• DT Spare Parts: 6.33207
• Carquest: 86208
• Carquest: 86796
• Hastings: FF848

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-A, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-B, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-130I-B, D3-160I-B, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31D, TAMD31P-B
• Volvo Penta TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41P-B
• Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta AD41D, AD41L-A, AD41P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta D41D, D41L-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TMD31D, TMD31L-A
• Volvo Penta TMD41D, TMD41L-A
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MS2B-A
• Volvo Penta TAMD22P-B
