115-06000000 Aftermarket Yamaha Hydraulic Tilt Assembly for Parsun | Sawley's Select Marine Parts

🔧 Product Description

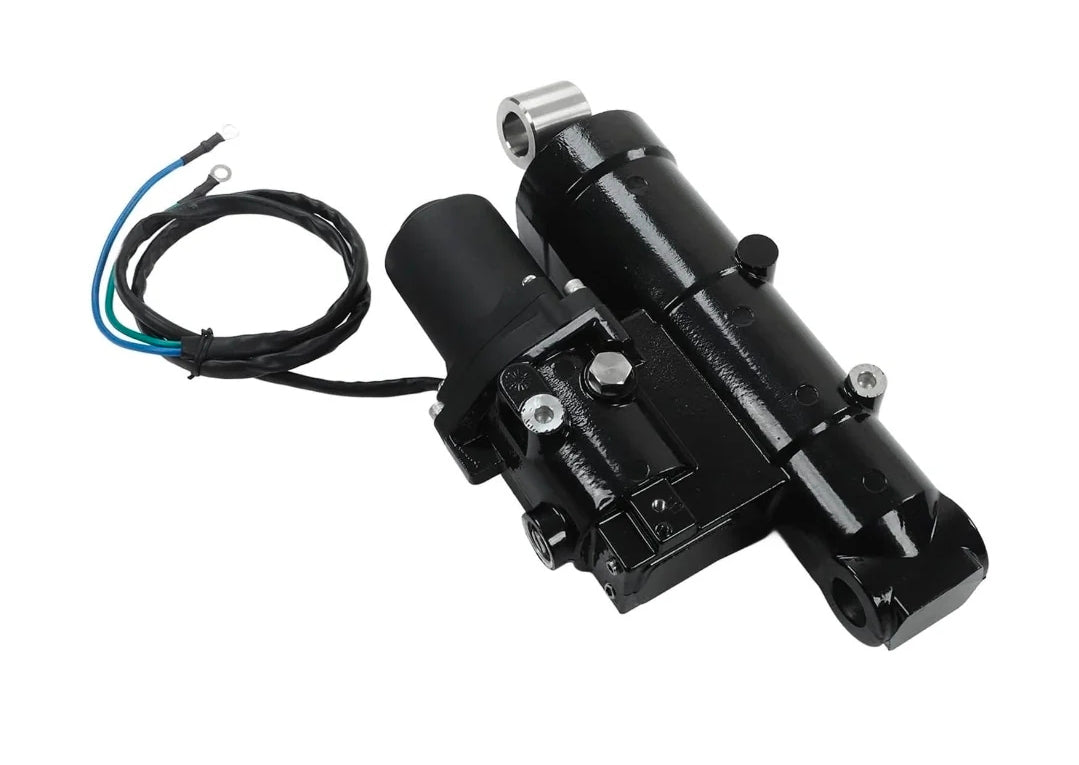

Aftermarket replacement Complete Power Trim & Tilt Assembly - Replaces Part Number: 115-06000000

New aftermarket complete hydraulic trim and tilt assembly for Parsun F115 outboards. The Parsun reference F115-06000000 cross-references Yamaha 6EK-43800-02.

⚙️ Key Features

• Complete electric-hydraulic trim unit

• Includes motor, pump, valve body and hydraulic ram assembly

• Direct Parsun F115 bracket fit

• Cross-references Yamaha 6EK-43800-02

• Supplied as a complete replacement rather than a motor-only part

🧰 Kit / Assembly Contents

• 1 × Complete power trim and tilt assembly - Parsun P/N F115-06000000

• 1 × Integrated 12-volt trim motor - service P/N F115-06030000

• 1 × Integrated hydraulic pump and valve body

• 1 × Integrated trim/tilt ram and mounting lugs

• External pins, bushes, wiring and bracket hardware are transferred or renewed separately

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• F115-06000000 ↔ Yamaha 6EK-43800-02

OEM / Related Numbers:

• 6EK-43800-02

• F115-06030000

Aftermarket / Verified Equivalents:

• Parsun: F115-06000000

• Yamaha: 6EK-43800-02

• Aftermarket complete F115/6EK trim assemblies

🚤 Compatibility

Commonly used on:

• Parsun F115 and Yamaha-pattern 115HP bracket systems

Typically suits:

• Engine / Drive models:

• Parsun F115 four-stroke outboards

• Yamaha applications using complete trim unit 6EK-43800-02 after exact bracket confirmation

• HP / Drive Range: 115HP

• System Type: Complete outboard electric-hydraulic power trim and tilt unit

• Year Range: Model- and serial-dependent

• Serial / Component Identification: Confirm mounting-lug width, electrical connector, pin diameter and Yamaha 6EK cross-reference.

🔌 Function

The complete power trim and tilt unit uses an electric motor, hydraulic pump, valve body and ram assembly to raise, lower and trim the outboard under load.

Common signs of failure / service requirement:

• Outboard will not raise, lower or hold position

• Hydraulic fluid leaks around the ram, motor or valve body

• Trim movement is slow, jerky or noisy

• Unit drifts down under engine weight

• Motor runs but the hydraulic ram does not move

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
