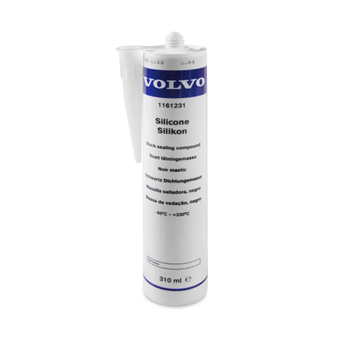

1161231 Sealant | Genuine Volvo Penta Part

🔧 Product Description

A single component black silicon adhesive that cures at room temperature. It is suitable for both gluing and sealing operations where a strong elastic seam capable of withstanding temperatures from -65°C to +230°C is required. It has excellent adhesion to metal, rubber, glass and most plastics, and the silicon adhesive is resistant to oils, greases, solvents, etc. This is the 310 ml pack.

🚤 Compatibility

• Engine Family: D, TAD, AQ, TD, MD, TMD, AD, TAMD, AQAD, TWD, TID, BB, THD, B, DH, HS, AQD, MB, KAMD, KAD
• HP Range: 230 HP
• Year Range: Approximately late 1980s onward, depending on engine and sealing procedure

Full model list at the end of this description.

⚙️ Key Features

• Black silicone adhesive and sealing compound, cures at room temperature
• 310 ml cartridge for a grease gun, 0.386 kg
• Withstands -65°C to +200°C
• Supersedes 21018254, 849399 and 877076
• The 20 g tube of the same compound is 1161277
• Black silicone sealing compound
• Single component, cures at room temperature
• Withstands -65°C to +230°C
• Excellent adhesion to metal, rubber, glass and most plastics
• Resistant to oils, greases and solvents
• Suitable for both gluing and sealing operations
• The 20 g pack of the same compound is 1161277
• Designation: Silicone - Black sealing compound
• Volume: 310 ml
• Type: Black
• Colour: Black
• Temperature range: -65°C to +230°C
• Cure: cures at room temperature, single component
• Resistance: oils, greases, solvents
• Single component black silicone adhesive
• Temperature range -65C to +200C
• Plastic cartridge for grease gun, 310 ml
• Temperature range: -65C to +200C
• Pack: Plastic cartridge for grease gun
• Quantity: 310 ml

🔌 Function

Forms a flexible, adhesive silicone seal between mating components so joints, flanges and housings stay oil- and moisture-tight, and bonds parts where a resilient bead replaces or supplements a solid gasket.

⚠️ Common Signs of Failure

• Oil, coolant or water weeping from a previously sealed joint or flange
• Sealant bead hardened, cracked or shrunk away from the mating face
• Cured bead lifting or peeling off at inspection
• Product in the cartridge part cured, stiff or extruding unevenly
• Air or exhaust leakage noise at a sealed housing or cover joint

🛠️ Service Notes

• Check your gun takes a 310 ml cartridge - the 20 g tube 1161277 is the alternative for a small joint
• Clean and degrease both faces, lay one continuous bead and let it cure before loading the joint
• Classified as dangerous goods for carriage - confirm shipping arrangements before ordering

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1161231 → Supersedes 21018254

OEM / Related Numbers

• 849399 earlier number superseded by this part
• 877076 earlier number superseded by this part
• 21018254 earlier number superseded by this part
• 11713514 related Volvo Penta black silicone reference
• 11167009 related Volvo / Volvo Penta sealing-agent reference
• 861718 related Volvo Penta silicone reference

Aftermarket / Verified Equivalents

• Permatex: 81173 Black Silicone Adhesive Sealant - 310ml
• TAMDParts: Black RTV sealing agent suitable for 1161231 / 11713514 / 11167009 / 861718 / 877076

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C8-B MP
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP, D11A-C (IPS), D11B1-A MP
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta TID121KG, TID121KGP, TID121KP, TID121KPB, TID121L, TID121LG, TID121LGP, TID121LP, TID121LPB, TID121FG, TID121K, TID121K-87
• Volvo Penta TD100G-85, TD100CHC, TD100G, TD100GG, TD100GGP, TD100HP, TD100HPB, TD100GG-85, TD100GP, TD100GP-85, TD100CRC
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31D, TAMD31P-B
• Volvo Penta TD121G-87, TD121GGP-87, TD121G, TD121GG, TD121GGP, TD121GP, TD121GPB, TD121CHC, TD121CRC
• Volvo Penta TID100KG, TID100KGP, TID100K, TID100K-87, TID100KGP-87, TID100KP, TID100KP-87, TID100KPB-87
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta TD61A, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TD61AW
• Volvo Penta TD71A, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TD71AW
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41P-B
• Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta TAD1030P, TAD1030G, TAD1030GE, TAD1030V, TAD1030VE
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TID71A, TID71AG, TID71AGP, TID71AP, TID71APB
• Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
• Volvo Penta TAD1630G, TAD1630GE, TAD1630P, TAD1630PB
• Volvo Penta TAD1640-42GE-B, TAD1640GE, TAD1640VE-B, TAD1640-42VE-C
• Volvo Penta TD70G, TD70G-83, TD70GPP, TD70GPP-83
• Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
• Volvo Penta TWD1210G, TWD1210P, TWD1210PB, TWD1210V
• Volvo Penta TWD1630G, TWD1630P, TWD1630PP, TWD1630V
• Volvo Penta TWD610G, TWD610P, TWD610PB, TWD610V
• Volvo Penta TWD710G, TWD710P, TWD710PB, TWD710V
• Volvo Penta AD41D, AD41L-A, AD41P-A
• Volvo Penta AQ170B, AQ170C, AQ170A
• Volvo Penta BB115A, BB115B, BB115C
• Volvo Penta BB170B, BB170C, BB170A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta MB20A, MB20B, MB20C
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
• Volvo Penta TAD730G, TAD730P, TAD730V
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
• Volvo Penta TD610G, TD610M, TD610V
• Volvo Penta THD102KB, THD102KD, THD102K-KB
• Volvo Penta TID70G, TID70GG, TID70GPP
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta TWD1211V, TWD1211P, TWD1211G
• Volvo Penta AQ115A, AQ115B
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta D41D, D41L-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta 100S, 110S
• Volvo Penta TAD1031G, TAD1031GE
• Volvo Penta TAD1230G, TAD1230V
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1342VE, TAD1342GE
• Volvo Penta TAD1343VE, TAD1343GE
• Volvo Penta TAD1345GE, TAD1345VE
• Volvo Penta TAD1350GE, TAD1350VE
• Volvo Penta TAD1351GE, TAD1351-53VE
• Volvo Penta TAD1631GE, TAD1631G
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TAD940GE, TAD940VE
• Volvo Penta TAD941VE, TAD941GE
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TD60D-83, TD60D
• Volvo Penta TD630ME, TD630VE
• Volvo Penta TD730ME, TD730VE
• Volvo Penta TID61AG, TID61AGP
• Volvo Penta TMD31D, TMD31L-A
• Volvo Penta TMD41D, TMD41L-A
• Volvo Penta TWD1230ME, TWD1230VE
• Volvo Penta TWD1683GE-B, TWD1683VE
• Volvo Penta TWD630ME, TWD630VE
• Volvo Penta TWD740GE, TWD740VE
• Volvo Penta AD30A
• Volvo Penta AD40B
• Volvo Penta AQ165A
• Volvo Penta AQAD30A
• Volvo Penta AQD21A
• Volvo Penta AQD40A
• Volvo Penta B20
• Volvo Penta BB165A
• Volvo Penta D4-230I-G
• Volvo Penta DH10A
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MD21A
• Volvo Penta MD30A
• Volvo Penta MD40A
• Volvo Penta TAD1032GE
• Volvo Penta TAD1140-42VE
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1180-83VE
• Volvo Penta TAD121CHC
• Volvo Penta TAD1231GE
• Volvo Penta TAD1232GE
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1346GE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1353GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TAD550GE
• Volvo Penta TAD551GE
• Volvo Penta TAD560VE
• Volvo Penta TAD561VE
• Volvo Penta TAD650VE
• Volvo Penta TAD660VE
• Volvo Penta TAD732GE EDC4
• Volvo Penta TAD733GE EDC4
• Volvo Penta TAD734GE
• Volvo Penta TAD740GE
• Volvo Penta TAD741GE
• Volvo Penta TAD750GE
• Volvo Penta TAD751GE
• Volvo Penta TAD752GE
• Volvo Penta TAD753GE
• Volvo Penta TAD754GE
• Volvo Penta TAD761VE
• Volvo Penta TAD762VE
• Volvo Penta TAD763VE
• Volvo Penta TAD764VE
• Volvo Penta TAD765VE
• Volvo Penta TAD942VE
• Volvo Penta TAD943VE
• Volvo Penta TAD950VE
• Volvo Penta TAD951VE
• Volvo Penta TAD952VE
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TAMD30A
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TD1010G
• Volvo Penta TD1030VE
• Volvo Penta TD120HP
• Volvo Penta TD1210G
• Volvo Penta TD164KAE
• Volvo Penta TD640VE
• Volvo Penta TD710G
• Volvo Penta TID60D
• Volvo Penta TMD100C
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TMD30A
• Volvo Penta TWD1010G
• Volvo Penta TWD1030ME
• Volvo Penta TWD1031VE
• Volvo Penta TWD1231VE
• Volvo Penta TWD1240VE
• Volvo Penta TWD1620G
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1744GE
• Volvo Penta TWD730ME
• Volvo Penta TWD731VE
