11820-ZW5-010 Honda Timing Belt Cover | Genuine Used Part

11820-ZW5-010 Honda Timing Belt Cover | Genuine Used Part

$60.00 AUD
$60.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

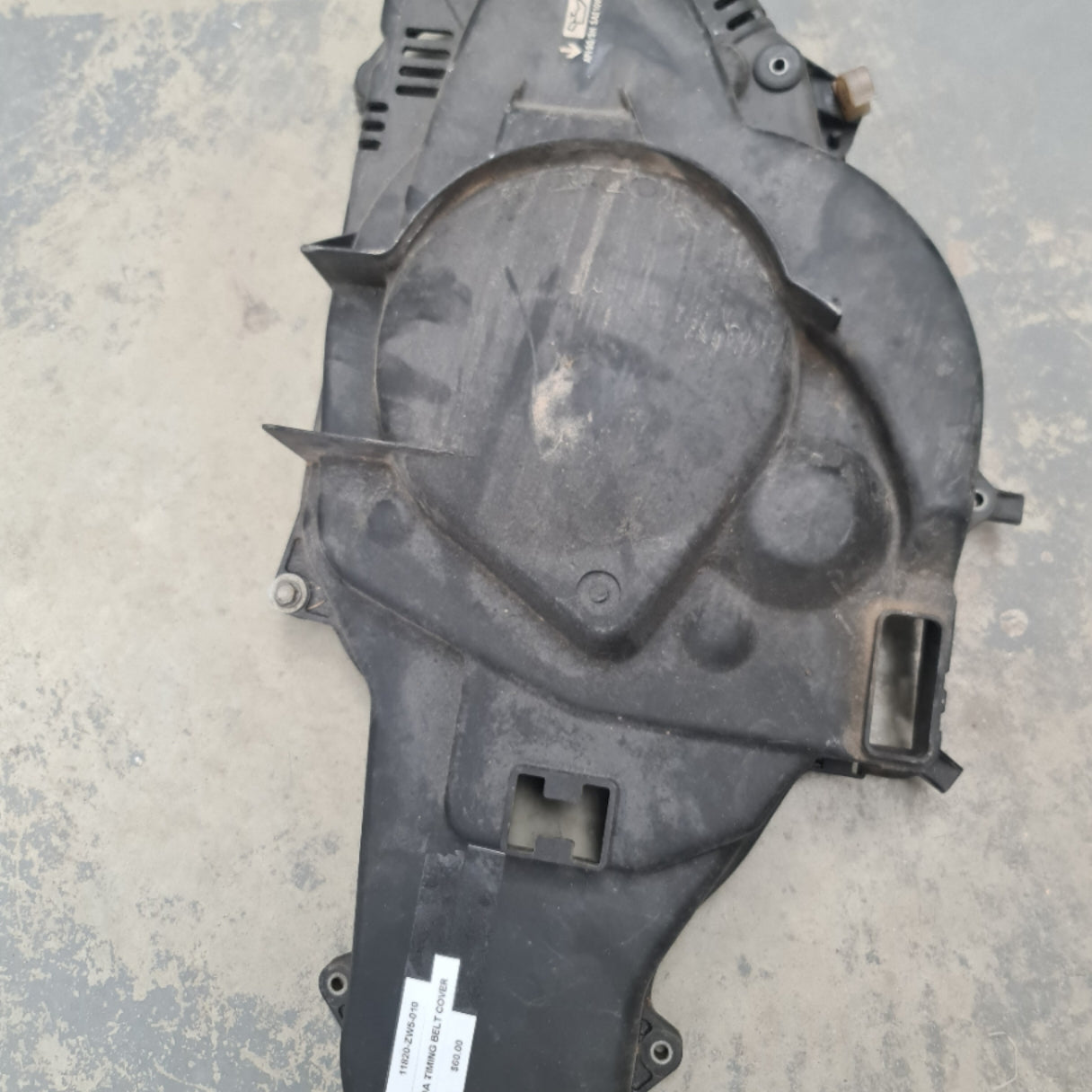

Genuine Used Honda BF115A / BF130A Upper Timing Belt Cover - Part Number: 11820-ZW5-010

A genuine pre-owned Honda Marine upper timing-belt cover for selected BF115A and BF130A four-stroke outboards.

The cover encloses the upper timing-belt, camshaft-pulley and associated rotating components. It protects the belt from contamination and reduces the risk of hoses, wiring or loose objects contacting the timing drive.

⚙️ Key Features

  • Genuine Honda Marine used upper cover
  • Correct OEM part number 11820-ZW5-010
  • Upper timing-belt-cover configuration
  • Suitable for selected BF115A and BF130A engines
  • Protects the camshaft-pulley and upper belt area
  • Original Honda moulded component

🚤 Compatibility

Commonly used on

  • Honda BF115A outboards
  • Honda BF130A outboards
  • Honda inline four-cylinder timing-belt systems

Typically suits selected

  • BF115AX and BF115AY
  • BF115A1 through BF115A5
  • BF130AX and BF130AY
  • BF130A1 through BF130A4
  • Additional BF115A / BF130A variants whose diagrams specify 11820-ZW5-010
  • Horsepower Range: 115HP - 130HP
  • Engine Type: Four-cylinder four-stroke
  • Representative Production Period: Approximately 1999-2007

Important fitment note

  • Compare the mounting holes, belt-clearance profile and moulded number with the original.
  • Early and later upper covers may use different suffixes.
  • Do not force a cover that does not align with the lower cover or cylinder-head fasteners.

🔌 Function

The upper cover shields the camshaft pulleys and upper timing-belt run.

It helps prevent foreign objects from entering the belt drive and protects service personnel from the rotating timing components.

⚠️ Common Signs of Failure

  • Cracked mounting bosses
  • Broken tabs
  • Heat distortion
  • Internal belt-contact marks
  • Cover rattles while the engine is running
  • Missing or damaged fasteners
  • Salt or oil contamination around the belt

🛠️ Service Notes

Recommended checks before installation

  • Inspect every mounting point
  • Check the timing belt for cracking, fraying or oil contamination
  • Inspect the tensioner and pulleys
  • Confirm the cover sits without contacting the belt
  • Replace missing grommets and fasteners

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • No confirmed direct supersession identified for 11820-ZW5-010
  • Earlier diagrams may show 11820-ZW5-000; confirm the original cover number and mounting details

OEM / Related Numbers

  • 11820-ZW5-010
  • 11820ZW5010
  • Related reference: 11820-ZW5-000
  • OEM Description: Cover Complete, Timing Belt Upper
  • Related lower cover: 11810-ZW5-000

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine Honda Marine used part
  • Pre-owned component
  • Cosmetic marks, fading and light oxidation may be present
  • Inspect mounting tabs before installation
  • Included fasteners are limited to those shown or described
  • Supplied in protective or equivalent packaging
