119110 Stainless Steel Fixed-Post Aerial Mount 105mm | Marine Antenna Components

🔧 Product Description

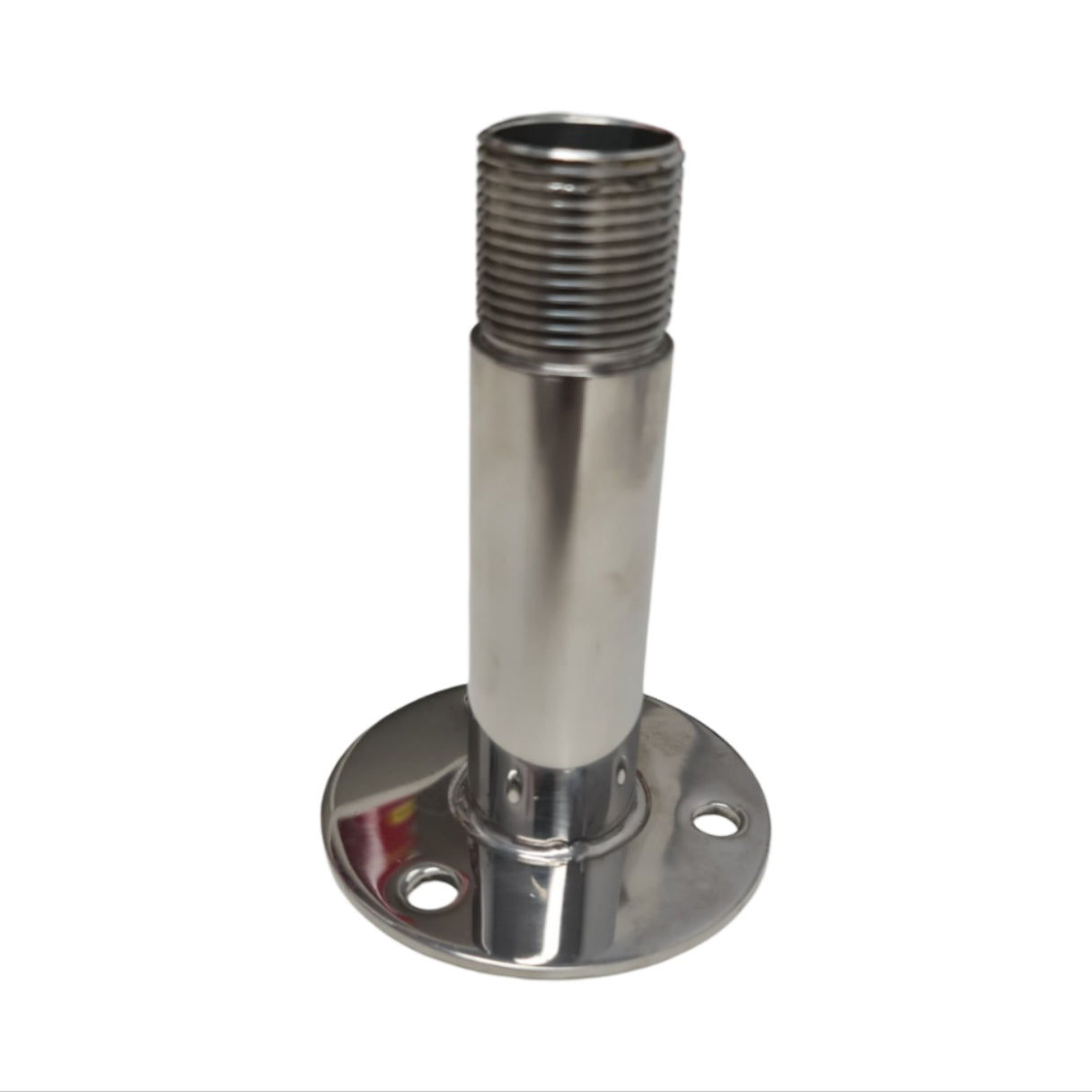

BLA Stainless Steel Long Fixed-Post Aerial Mount 105mm - Part Number: 119110

A long fixed horizontal-mount antenna post manufactured from stainless steel. The approximately 105mm post raises a compatible antenna above the mounting surface and uses the marine-industry standard 1-inch × 14 TPI male thread.

⚙️ Key Features

• Stainless-steel fixed-post construction
• Long post provides additional antenna elevation and clearance
• Standard marine antenna thread
• Permanent upright configuration with no moving ratchet mechanism
• Suitable for deck, cabin-top and console installations

📏 Specifications

• Post height: Approximately 105mm
• Antenna thread: Standard male 1" × 14 TPI
• Material: Stainless steel
• Mounting style: Fixed horizontal-surface post
• Antenna and coaxial cable are not included

🔄 Related & Comparable Options

• Short stainless fixed-post alternative: BLA 119112, approximately 40mm
• Short nylon fixed-post alternative: BLA 119114, approximately 40mm
• Comparable fixed mounts must use the same 1-inch × 14 TPI antenna thread

📡 Compatibility & Application

• Suitable for VHF, 27MHz, AIS, AM/FM and other antennas with a standard 1-inch × 14 TPI female ferrule
• Useful where extra clearance is needed above rails, cabin mouldings or nearby hardware
• Best suited to installations that do not require the antenna to fold down

🛠️ Installation Guidance

• Mount on a reinforced horizontal surface
• Use corrosion-compatible stainless fasteners and suitable backing
• Seal all deck penetrations with marine bedding compound
• Route the coaxial cable without sharp bends or crushing
• Check antenna height and overhead clearance before permanent installation

📦 Condition

• Brand new
• Supplied as one 105mm stainless-steel fixed-post aerial mount
• Supplied in original or equivalent packaging
