119112 Stainless Steel Fixed-Post Aerial Mount 40mm | Marine Antenna Components

🔧 Product Description

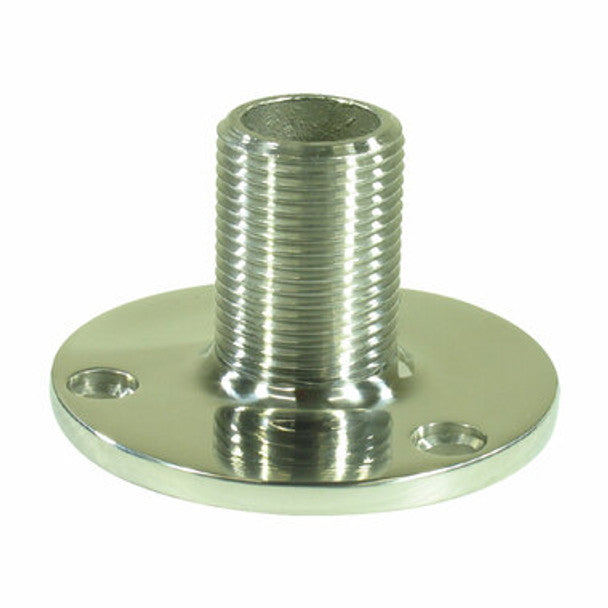

BLA Stainless Steel Short Fixed-Post Aerial Mount 40mm - Part Number: 119112

A compact stainless-steel fixed-post mount for marine antennas using the standard 1-inch × 14 TPI thread. The approximately 40mm post keeps the antenna close to the deck or cabin top while providing a strong corrosion-resistant mounting point.

⚙️ Key Features

• Compact stainless-steel fixed-post construction
• Low-profile 40mm post
• Standard marine antenna thread
• No ratchet or folding components to loosen
• Suitable for permanent deck and cabin-top installations

📏 Specifications

• Post height: Approximately 40mm
• Antenna thread: Standard male 1" × 14 TPI
• Material: Stainless steel
• Mounting style: Fixed horizontal-surface post

🔄 Related & Comparable Options

• Long stainless fixed-post alternative: BLA 119110, approximately 105mm
• Nylon fixed-post alternative: BLA 119114, approximately 40mm
• Comparable fixed mounts must match the mounting footprint and 1-inch × 14 TPI thread

📡 Compatibility & Application

• Suitable for compatible VHF, AIS, 27MHz, AM/FM and other marine antennas
• Ideal where a low installed height and rigid permanent base are preferred
• Not suited to installations that require frequent antenna lowering

🛠️ Installation Guidance

• Install on a rigid horizontal surface using suitable stainless fasteners
• Use a backing plate or large washers on thin fibreglass or aluminium panels
• Bed the base to prevent water ingress
• Confirm cable access and antenna clearance before drilling
• Isolate dissimilar metals where installed on aluminium structures

📦 Condition

• Brand new
• Supplied as one 40mm stainless-steel fixed-post aerial mount
• Supplied in original or equivalent packaging
