119175-33200 Aftermarket Yanmar Engine Oil Cooler | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Engine Oil Cooler - Replaces Part Number: 119175-33200

New copper-nickel engine-oil cooler replacing Yanmar 119175-33200 and 119175-39050. It is used on the 4LHA marine-diesel family and controls lubricating-oil temperature during sustained high-load operation.

⚙️ Key Features

• Direct replacement for Yanmar 119175-33200

• Cross-references Yanmar 119175-39050

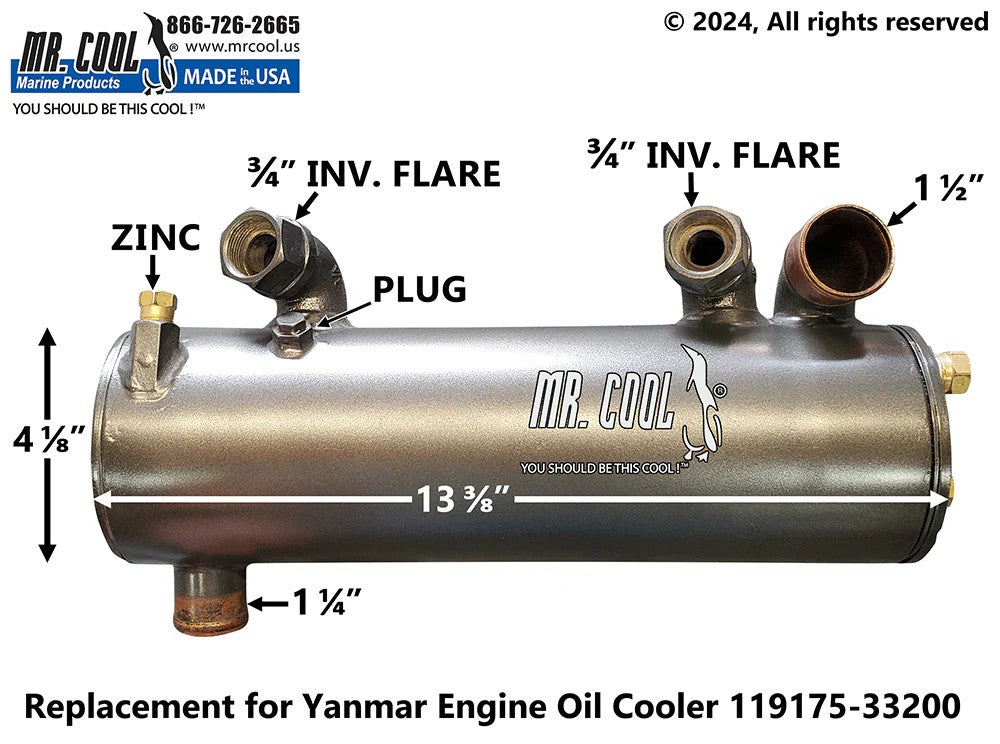

• Approximately 4-inch diameter × 13-inch shell

• Copper-nickel seawater core

• Designed for 4LHA marine diesel installations

🧰 Kit / Assembly Contents

• 1 × Complete engine-oil cooler assembly - P/N 119175-33200

• 1 × Integrated copper-nickel tube bundle - supplied within the assembly

• Oil-line seals, seawater hoses, brackets and mounting hardware are transferred or renewed separately

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 119175-33200 → Supersedes/cross-references 119175-39050

• 119175-33200-01 (service-number variant)

OEM / Related Numbers:

• 11917539050

• 11917533200

• 119175-33200-01

Aftermarket / Verified Equivalents:

• Mr Cool: MRC119175-33200CN

• Lenco: LE119175-33200

• Seakamp copper-nickel 4LHA oil-cooler replacement

🚤 Compatibility

Commonly used on:

• Yanmar 4LHA marine diesel engines

Typically suits:

• Engine / Equipment models:

• 4LHA-DTP and 4LHA-DTZE

• 4LHA-HTP and 4LHA-HTZE

• 4LHA-STP, 4LHA-STE and 4LHA-STZE

• 4LHA model derivatives whose parts catalogue specifies 119175-33200 or 119175-39050

• Output / Engine Rating: Approximately 160HP - 240HP

• Engine / System Type: Four-cylinder turbocharged/intercooled marine diesel engine

• Year Range: 4LHA production era; exact application is model- and serial-dependent

• Serial / Model Identification: Confirm the engine model, oil-port orientation and OEM number before installation.

🔌 Function

The cooler transfers heat from lubricating oil into the raw-water circuit. Controlling oil temperature preserves viscosity, bearing protection and stable oil pressure during sustained load.

Common signs of failure:

• Lubricating-oil temperature rising above normal

• Low oil pressure after the engine reaches operating temperature

• Oil film in the raw-water discharge or coolant circuit

• Water-contaminated or milky lubricating oil

• External leakage, corrosion or failed pressure test

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
