119195-18031 Yanmar Aftermarket Turbo Charger 4LH-STE 119195-18030, 119195-18031 | Sawley's Select Marine Parts

🔧 Product Description

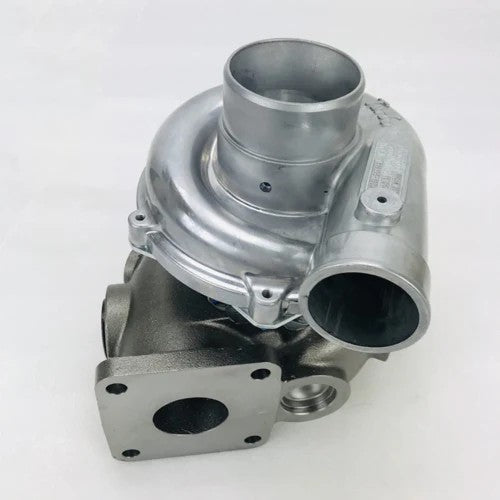

Sawley's Select Marine Parts IHI-Spec RHC61W MYAV Aftermarket Turbocharger - Part Number: 119195-18031

A new direct-fit aftermarket marine turbocharger manufactured to replace the IHI RHC61W MYAV turbo fitted to Yanmar 4LH-STE marine diesel engines.

This unit uses the MYAV / 240080 specification and replaces Yanmar turbocharger part numbers 119195-18030 and 119195-18031. It is specifically matched to the earlier 230HP 4LH-STE engine family produced during the mid-to-late 1990s.

⚙️ Key Features

• Direct-fit aftermarket replacement for Yanmar 119195-18031

• IHI RHC61W MYAV turbocharger specification

• Designed for the 230HP Yanmar 4LH-STE marine diesel

• Complete turbocharger assembly using the 240080 housing specification

• Extensive Yanmar, IHI, Recmar and CHRA cross-reference coverage

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 119195-18031 → Supersedes 119195-18030

• 119195-18030 earlier Yanmar turbocharger reference

OEM / Related Numbers:

• 119195-18031

• 11919518031

• 1-19195-18031

• 119195-18030

• 11919518030

• 1-19195-18030

• IHI: MYAV

• IHI: MYAV0310

• IHI: RHC61W

• IHI: RHC61W-1063P18NWBRLL4715CC

• IHI: 6T-583

• IHI: 6T583

• IHI: VA240080

• IHI: VB240080

• IHI: VC240080

• IHI: VD240080

• IHI: C61CND-S0080B

• IHI: C61CND-S0080G

• IHI: C61CNDS0080B

• IHI: C61CNDS0080G

Aftermarket / Verified Equivalents:

• Recmar: REC119195-18031

• IHI: MYAV / VC240080 complete turbocharger

• IHI: MYAV / VD240080 complete turbocharger

• IHI CHRA / Core Assembly: NZ854798

• IHI CHRA / Core Assembly: NZ870535

• GCG Turbochargers: 9107-00357

• GCG Turbochargers: 9110-00054

The MYAV turbo is not interchangeable solely by appearance with the later MYDA / 240090 turbo used on 4LHA engines. The original Yanmar number, IHI short specification and housing reference should all be matched before installation.

🚤 Compatibility

Commonly used on:

• Yanmar 4LH-series turbocharged and intercooled marine diesel engines

• Marine inboard installations using the MYAV / 240080 turbocharger specification

Typically suits:

• Engine models:

• Yanmar 4LH-STE - 230HP marine diesel

• Yanmar 4LH-STE 3.455L inline 4-cylinder inboard engine

• Yanmar 4LH-STE applications originally fitted with 119195-18030

• Yanmar 4LH-STE applications originally fitted with 119195-18031

• Yanmar 4LH-STE applications fitted with IHI MYAV, 6T-583, VC240080 or VD240080 turbo identification

• HP Range: 230HP

• Engine Type: 3.455L inline 4-cylinder, four-stroke, direct-injection, turbocharged and intercooled marine diesel

• Year Range: Approximately 1995 - 1998

🔌 Function

The turbocharger converts exhaust-gas flow into compressor-wheel rotation. The compressor forces additional air through the intercooler and into the engine, allowing the 4LH-STE to produce its rated output while maintaining efficient combustion.

Common signs of failure:

• Noticeable loss of boost and engine power

• Engine cannot reach its rated operating speed

• Excessive black smoke when accelerating

• Blue smoke or increased lubricating-oil consumption

• Whining, siren, scraping or grinding noises

• Oil inside the compressor outlet or intake plumbing

• Excessive radial or axial turbocharger shaft movement

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in original or equivalent packaging
