119574-18012 Yanmar Aftermarket Turbo Charger 6LYA-STE IHI 119574-18012 | Sawley's Select Marine Parts

🔧 Product Description

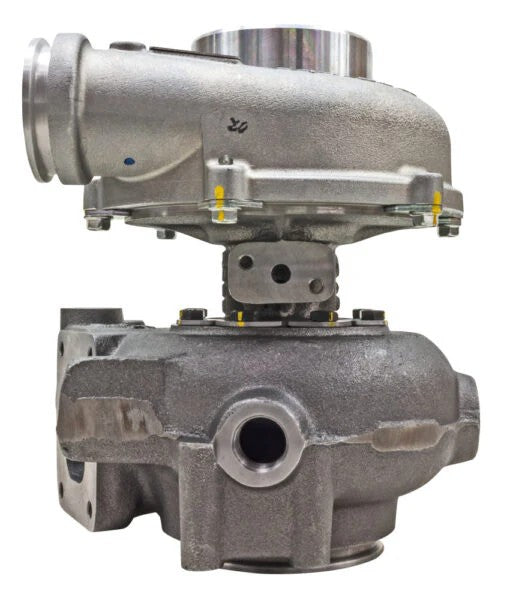

Sawley's Select Marine Parts IHI RHC7W MYBO Aftermarket Turbocharger - Part Number: 119574-18012

A new IHI-specification aftermarket marine turbocharger for Yanmar 6LYA-STE six-cylinder diesel engines.

This larger RHC7W turbo uses the MYBO / 290035 specification and replaces Yanmar turbocharger references 119574-18010, 119574-18011 and 119574-18012. It is designed for the 5.184-litre, 350HP 6LYA-STE marine engine family.

⚙️ Key Features

• Direct-fit replacement for Yanmar 119574-18012

• IHI RHC7W MYBO marine turbocharger specification

• Designed for the Yanmar 6LYA-STE 350HP diesel engine

• Water-cooled turbine-housing marine configuration

• Extensive IHI, Recmar and complete-turbo cross-reference coverage

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 119574-18012 → Supersedes 119574-18011

• 119574-18011 → Supersedes 119574-18010

• 119574-18010 earlier Yanmar turbocharger reference

OEM / Related Numbers:

• 119574-18012

• 11957418012

• 1-19574-18012

• 119574-18011

• 11957418011

• 1-19574-18011

• 119574-18010

• 11957418010

• 1-19574-18010

• IHI: MYBO

• IHI: MYBI

• IHI: RHC7W

• IHI: RHC7W-943P18NWBRII5014CHB

• IHI: 7T-549

• IHI: 7T549

• IHI: VA290035

• IHI: VB290035

• IHI: VC290035

• IHI: VD290035

• IHI: VE290035

• IHI: C72CND-S0035B

• IHI: C72CNDS0035B

• IHI: C72CND-S0035BN

• IHI: C72CNDS0035BN

• 12507P22NWBRB6136SUC

• 170-423-0130

• 1704230130

Aftermarket / Verified Equivalents:

• Recmar: REC119574-18020

• IHI: MYBO / VD290035 complete turbocharger

• IHI: MYBI / VC290035 complete turbocharger

• IHI CHRA / Core Assembly: C72CND-S0035C

• Turbochargers Direct: TUR-103314-TDN

• Turbochargers Direct: TUR-103314-IHN

• Recmar MYDW Replacement: VA290056

• Recmar MYDW Replacement: VB290056

• Recmar MYDW Replacement: VC290056

• Recmar MYDW Replacement: VD290056

• Recmar MYDW Replacement: C72CAD-S0056B

The later MYDW / 290056 replacement family is catalogued against Yanmar 119574-18011, 119574-18012 and 119574-18020. The original turbo identification and housing orientation should be checked because MYBO / 290035 and MYDW / 290056 references represent different production specifications within the RHC7W family.

🚤 Compatibility

Commonly used on:

• Yanmar 6LYA-series turbocharged and intercooled marine diesel engines

• Inboard propulsion systems using the IHI MYBO / 290035 turbocharger specification

Typically suits:

• Engine models:

• Yanmar 6LYA-STE - 350HP marine diesel

• Yanmar 6LYA-STE 5.184L inline 6-cylinder engine

• Yanmar 6LYA-STE applications originally fitted with 119574-18010

• Yanmar 6LYA-STE applications originally fitted with 119574-18011

• Yanmar 6LYA-STE applications originally fitted with 119574-18012

• Yanmar 6LYA-STE(P) applications where the original turbo cross-references to 119574-18011 or 119574-18012

• Yanmar 6LYA-STE engines fitted with IHI MYBO, MYBI, 7T-549, VC290035 or VD290035 identification

• HP Range: 350HP

• Engine Type: 5.184L inline 6-cylinder, four-stroke, direct-injection, turbocharged and intercooled marine diesel

• Year Range: Approximately January 1997 - May 2001

🔌 Function

The turbocharger uses engine exhaust flow to rotate the turbine and compressor wheels. The compressor supplies pressurised air through the intercooler to the intake manifold, enabling the 6LYA-STE to develop its rated power and torque under marine operating loads.

Common signs of failure:

• Loss of boost pressure and reduced vessel performance

• Engine cannot reach rated full-load rpm

• Excessive black smoke under acceleration

• Blue smoke or increased lubricating-oil consumption

• Loud whining, siren, scraping or turbine-contact noises

• Oil present in the compressor outlet or charge-air cooler

• Excessive turbocharger shaft movement

• Damaged compressor or turbine blades

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in original or equivalent packaging
