🔧 Product Description

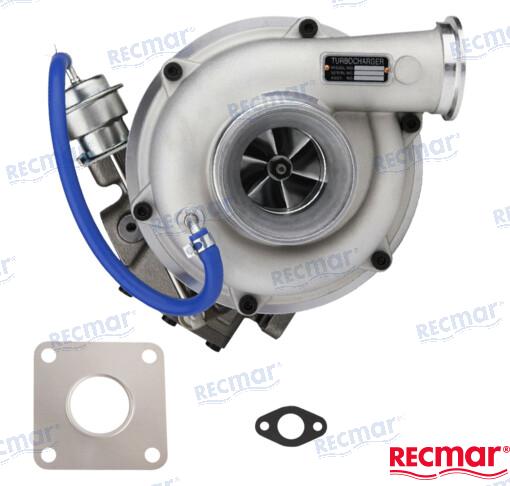

Sawley's Select Marine Parts IHI-Spec RHE62W MYBH Aftermarket Turbocharger - Part Number: 119775-18010

A new direct-fit aftermarket marine turbocharger manufactured to replace the IHI RHE62W MYBH / MYBHE turbo fitted to selected Yanmar 6LP and early 6LPA high-output diesel engines.

This water-cooled, wastegated turbocharger uses the 720033 housing specification and is primarily associated with Yanmar 6LP-STE, 6LP-STZE, 6LPA-STE and related 300HP engine configurations.

⚙️ Key Features

• Direct-fit aftermarket replacement for Yanmar 119775-18010

• IHI RHE62W MYBH / MYBHE marine turbocharger specification

• Water-cooled and wastegated turbine-housing design

• Designed for Yanmar 4.164L inline 6-cylinder marine diesel engines

• Cross-references with complete-turbo, CHRA and specialist replacement numbers

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 119775-18011 → Later Yanmar service reference for 119775-18010

• 119775-18010 original Yanmar turbocharger reference

OEM / Related Numbers:

• 119775-18010

• 11977518010

• 1-19775-18010

• 119775-18011

• 11977518011

• 1-19775-18011

• IHI: MYBH

• IHI / Recmar: MYBHE

• IHI: RHE62W

• IHI: RHE62-118003P22NWBRB584CCZ

• IHI: 118003P22NWBRB584CCZ

• IHI: 6T-609

• IHI: 6T609

• IHI: VA720033

• IHI: VB720033

• IHI: VC720033

• IHI: VD720033

• IHI: E61CAD-S0033B

• IHI: E61CAD-S0033BN

• IHI: E61CAD-S0033G

• IHI: E61CAD-S0033C

• 170-423-0434

• 1704230434

• 170-423-0982

• 1704230982

Aftermarket / Verified Equivalents:

• Recmar: REC119775-18010

• GCG Turbochargers: 9107-00380

• GCG Turbochargers: 9110-00054

• Turbochargers Direct: TUR-102734-TDN

• Turbochargers Direct / IHI: TUR-102734-IHN

• IHI CHRA / Core Assembly: E61CAD-S0033C

• IHI CHRA / Core Assembly: VAX10016

• TurboTurbos CHRA: TP06-1076-25

The MYBH / 720033 turbo should be matched by the original Yanmar number and IHI identification plate. It must not be confused with the later MYEV / 720086 turbo commonly supplied as Yanmar 119775-18150.

🚤 Compatibility

Commonly used on:

• Yanmar 6LP and early 6LPA turbocharged and intercooled marine diesel engines

• Inboard and stern-drive propulsion packages using the MYBH / 720033 turbocharger

Typically suits:

• Engine models:

• Yanmar 6LP-STE - 300HP inboard, approximately June 1997 to July 2001

• Yanmar 6LP-STZE - 300HP Bravo stern-drive, approximately January 1998 to October 2001

• Yanmar 6LP-STZE1 - applications originally fitted with 119775-18010 or 119775-18011

• Yanmar 6LP-STZY - applications originally fitted with the MYBH / 720033 turbo

• Yanmar 6LP-STZYJ - applications originally fitted with the MYBH / 720033 turbo

• Yanmar 6LPA-STE - 300HP, approximately March 2001 to June 2001

• Yanmar 6LPA-STZE - 300HP, approximately March 2001 to June 2001

• Yanmar 6LPA-STZEP1 - applications originally fitted with 119775-18010

• Early Yanmar 6LPA-STP / STZP 315HP installations only when the original turbo identification is 119775-18010, 119775-18011, MYBH or VC720033

• HP Range: 300HP - 315HP

• Engine Type: 4.164L inline 6-cylinder, four-stroke, direct-injection, turbocharged and intercooled marine diesel

• Year Range: Approximately 1997 - 2001, with later fitment controlled by the original turbo identification

Later 6LPA-STP2, 6LPA-STZP2 and 6LPA-STZP3 engines normally use the MYEV / 720086 turbo under Yanmar number 119775-18150.

🔌 Function

The turbocharger converts exhaust-gas energy into compressor-wheel rotation. The compressor supplies pressurised air through the intercooler to the intake manifold, allowing the engine to produce its rated power while maintaining efficient combustion.

Common signs of failure:

• Reduced boost pressure and loss of engine power

• Engine cannot reach its rated full-load rpm

• Excessive black smoke under acceleration

• Blue smoke or increased engine-oil consumption

• High-pitched siren, scraping or grinding noise

• Oil present in the compressor outlet or intercooler

• Excessive radial or axial shaft movement

• Damaged compressor or turbine blades

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in original or equivalent packaging
