119775-18150 Yanmar Aftermarket Turbocharger 119775-18150 / 6LPA-STZ2 / STZ3 | Sawley's Select Marine Parts

🔧 Product Description

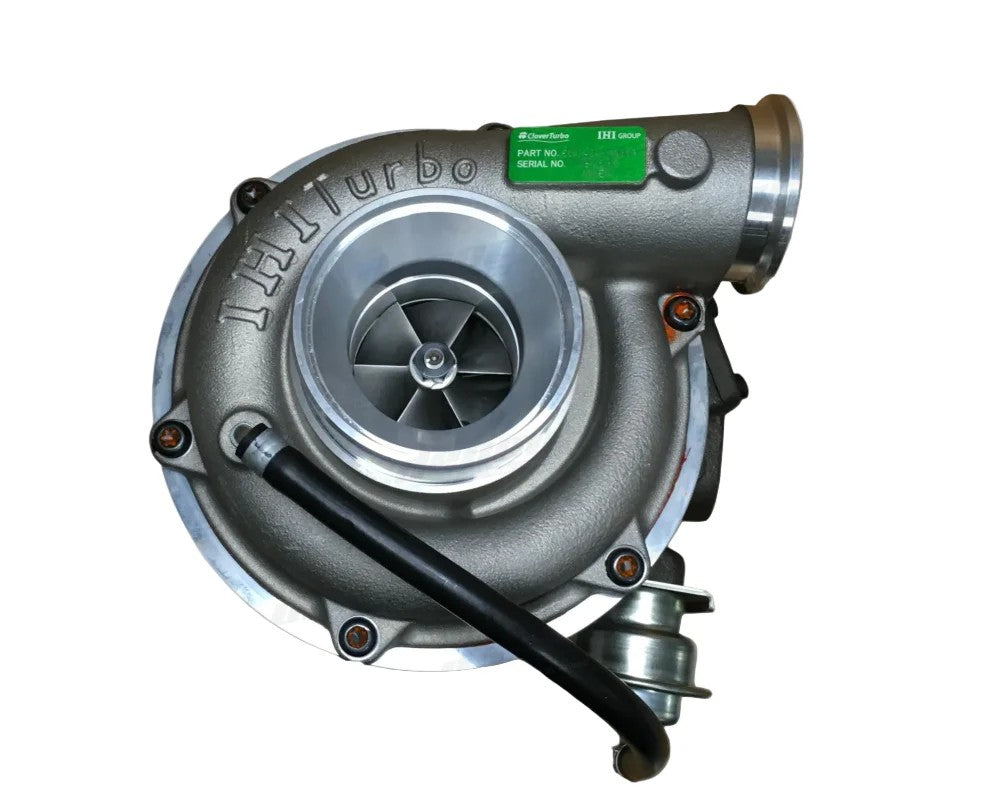

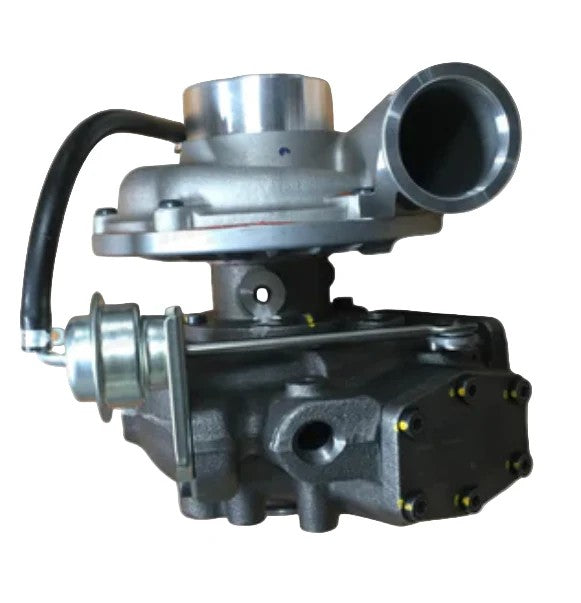

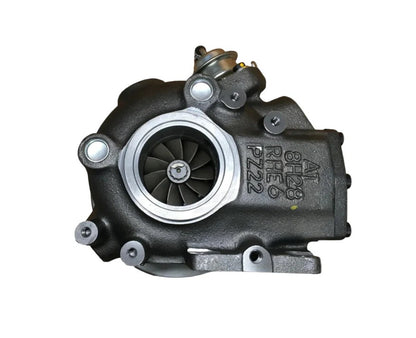

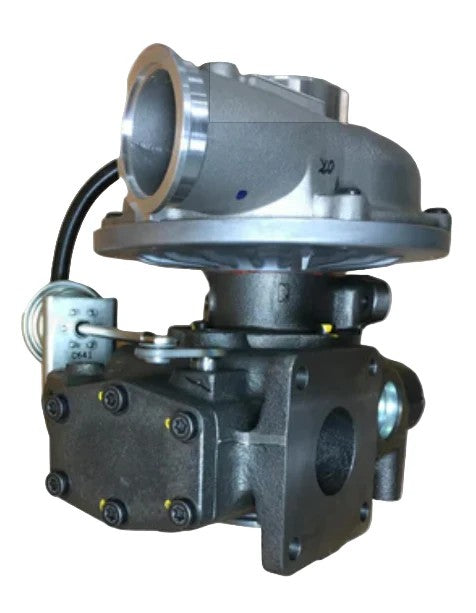

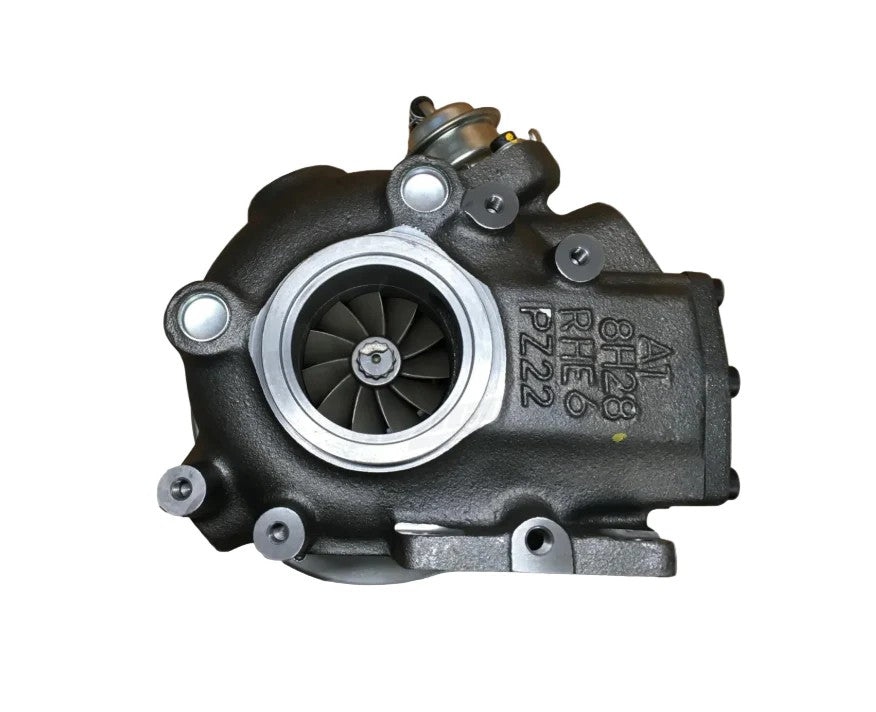

Sawley's Select Marine Parts IHI-Spec RHE62W MYEV Aftermarket Turbocharger - Part Number: 119775-18150

A new direct-fit aftermarket marine turbocharger manufactured to replace the IHI RHE62W MYEV unit fitted to Yanmar 6LPA 315HP marine diesel engines.

This turbocharger uses the 720086 housing specification and is used on inboard and stern-drive 6LPA-STP, 6LPA-STP2, 6LPA-STZP2 and 6LPA-STZP3 engine configurations.

⚙️ Key Features

• Direct-fit aftermarket replacement for Yanmar 119775-18150

• IHI RHE62W MYEV marine turbocharger specification

• Water-cooled turbo with pneumatic wastegate actuator

• Designed for the 4.164L Yanmar 6LPA 315HP engine family

• Cross-references with IHI, Recmar, GCG and Turbochargers Direct replacements

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 119775-18150 current Yanmar MYEV turbocharger reference

OEM / Related Numbers:

• 119775-18150

• 11977518150

• 1-19775-18150

• IHI: MYEV

• IHI: RHE62W

• IHI: V-720086

• IHI: V720086

• IHI: VA720086

• IHI: VB720086

• IHI: VC720086

• IHI: VD720086

• IHI: E61CAD-S0086B

• IHI: E61CAD-S0086BN

• IHI: E61CAD-S0086G

• IHI: E61CADS0086B

• IHI: E61CADS0086BN

• IHI: E61CADS0086G

Aftermarket / Verified Equivalents:

• IHI: MYEV / VA720086 complete turbocharger

• GCG Turbochargers: 9107-00180

• Turbochargers Direct: TUR-103326-TDN

• Turbochargers Direct / IHI: TUR-103326-IHN

• FridayParts: LXFP3113A02

• Recmar replacement turbocharger for Yanmar 119775-18150

• Aftermarket MYEV RHE62W CHRA / Core Assembly for 119775-18150

Some replacement catalogues also cross-list 119775-18010 and 119775-18011, but the MYEV / 720086 housing and actuator specification should be matched to the original turbocharger identification before installation.

🚤 Compatibility

Commonly used on:

• Yanmar 6LPA 315HP turbocharged and intercooled marine diesel engines

• Inboard and stern-drive installations using the MYEV / 720086 turbocharger

Typically suits:

• Engine models:

• Yanmar 6LPA-STP - 315HP inboard, approximately July 2001 to December 2006, when fitted with 119775-18150

• Yanmar 6LPA-STZP - 315HP stern-drive, approximately July 2001 to December 2006, when fitted with 119775-18150

• Yanmar 6LPA-STP2 - 315HP Tier 2 inboard engine

• Yanmar 6LPA-STZP2 - 315HP Tier 2 stern-drive engine

• Yanmar 6LPA-STZP3 - 315HP later stern-drive engine

• Yanmar 6LPA-STP2 applications shown with turbocharger 119775-18150

• Yanmar 6LPA-STZP2 applications shown with turbocharger 119775-18150

• Yanmar 6LPA-STZP3 applications shown with turbocharger 119775-18150

• HP Range: 315HP

• Engine Type: 4.164L inline 6-cylinder, four-stroke, direct-injection, turbocharged and intercooled marine diesel

• Year Range: Approximately 2001 onward, dependent on engine model and original turbo identification

🔌 Function

The turbocharger uses exhaust-gas flow to drive the turbine and compressor wheels. The compressor supplies pressurised air through the intercooler, enabling the 6LPA engine to produce its rated 315HP output and strong marine-load torque.

Common signs of failure:

• Reduced boost and poor vessel acceleration

• Engine cannot reach its rated 3800rpm

• Excessive black smoke under load

• Blue smoke or increased lubricating-oil consumption

• Whining, siren, scraping or grinding noises

• Oil accumulation in the compressor outlet or intercooler

• Wastegate actuator seized, leaking or incorrectly controlling boost

• Excessive turbocharger shaft movement

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in original or equivalent packaging
