12155-ZV5-010 Honda Marine Anode | Genuine OEM Outboard Part

🔧 Product Description

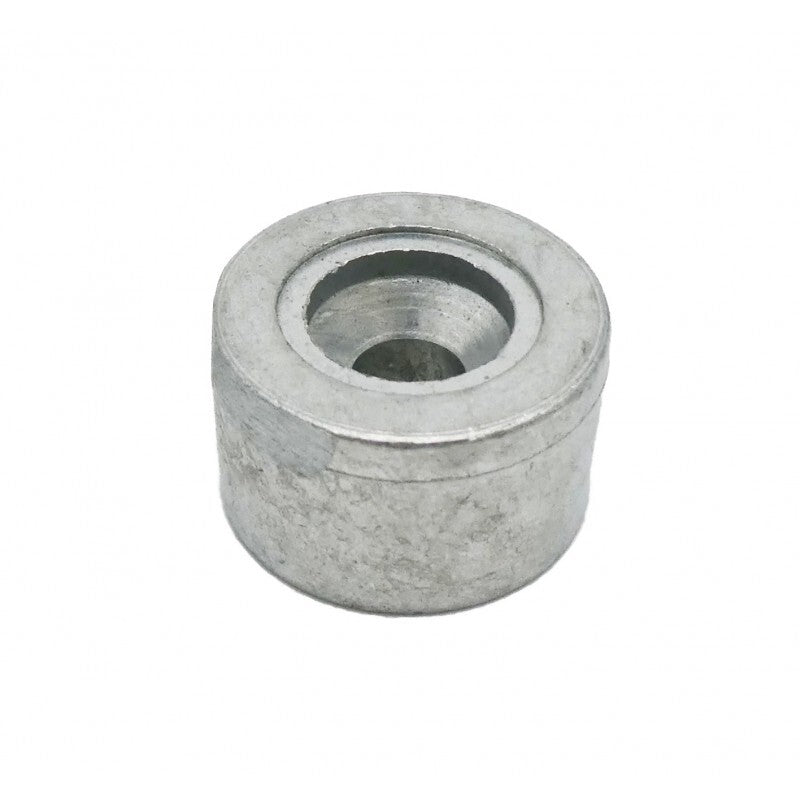

Genuine Honda Internal Cylinder Block / Exhaust-Passage Anode - Part Number: 12155-ZV5-010

New genuine Honda internal sacrificial anode used in cylinder-head, cylinder-block, carburettor-heating or exhaust-water passages. It is a position-specific anode and should be matched to the Honda parts diagram rather than selected only by horsepower.

⚙️ Key Features

• Genuine Honda internal metal anode
• Protects internal raw-water passages from galvanic corrosion
• Position-specific shape for Honda engine castings
• Used on numerous mid-range and large Honda four-strokes
• Replace before the anode is substantially consumed

🚤 Compatibility

Commonly used on

• Honda Marine four-stroke outboard engines

Typically suits

• Engine models:
• BF25D and BF30D
• BF35A, BF40A/BF40D, BF45A, BF50A/BF50D and BF60A/BFP60A
• BF75A/BF75D, BF80A, BF90A/BF90D and BF100A
• BF115A/BF115D, BF130A, BF135A/BF135D and BF150A/BF150D
• BF175A/BF175D, BF200A/BF200D, BF225A/BF225D, BF250A/BF250D and BF350A where specified
• HP Range: 25HP - 350HP
• Engine Type: Honda four-stroke outboard
• Year Range: Model, location and frame-serial dependent

🔌 Function

This sacrificial internal anode is designed to corrode in preference to the aluminium cylinder head, cylinder block or exhaust-water-jacket components. It reduces galvanic and electrolytic corrosion inside the raw-water cooling passages and must be inspected and renewed before it is heavily depleted.

⚠️ Common Signs of Failure

• Anode is heavily pitted, reduced in size or completely consumed
• White oxide, salt crystals or corrosion products are visible around the anode location
• Cooling passages show internal corrosion or scale
• Anode retaining surface is damaged or the anode no longer seats securely
• The manufacturer's inspection or replacement interval is due

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 12155-ZV5-010 (current Honda OEM reference for this anode shape)

OEM / Related Numbers

• 12155-ZV5-010

Aftermarket / Verified Equivalents

• Aftermarket replacement: 12155-ZV5-010 pattern internal anode
• No other-brand numbered equivalent confirmed

📦 Condition

• Genuine Honda part
• Brand new
• Supplied in original or equivalent packaging
