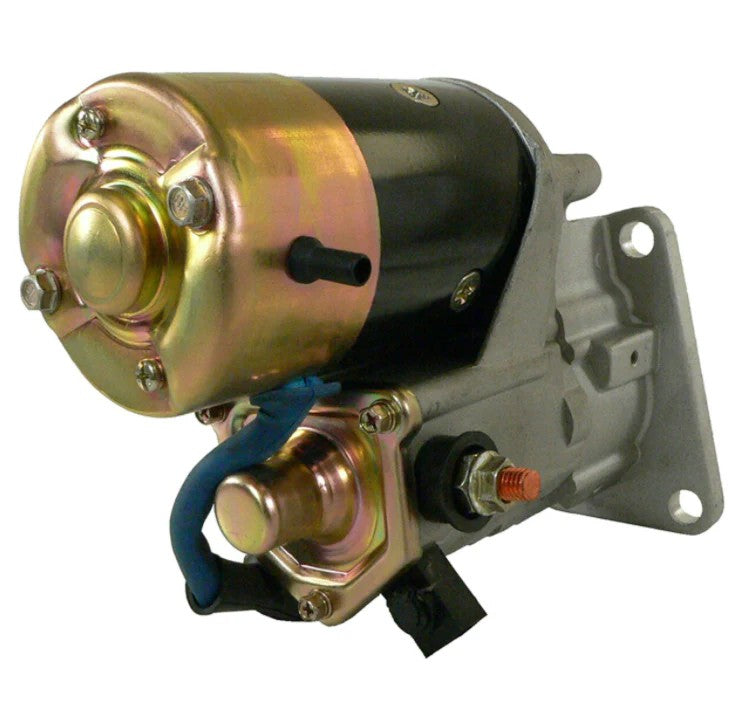

124610-77019 Aftermarket Yanmar 6LY/6LY2A Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

A heavy-duty 3.0kW 11-tooth starter for Yanmar 6LY, 6LYA and 6LY2-series marine diesel engines. It supersedes 124610-77010 and related 123500-77010 references and cross-references to the Hitachi S13-68/S13-86 starter family.

⚙️ Key Features

• Marine-rated 12-volt starter construction

• Pinion, rotation and mounting pattern matched to the listed OEM family

• High-torque cranking output for reliable cold and warm starting

• Corrosion-resistant terminals and marine-duty internal components

• Direct replacement when the original OEM starter number matches

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 124610-77019 → Supersedes 124610-77010

• 124610-77010 → Replaces or cross-references to 123500-77010 on specified engines

OEM / Related Numbers:

• 124610-77019

• 124610-77010

• 123500-77010

• 424610-77010

• Hitachi S13-68

• Hitachi S13-68A

• Hitachi S13-68C

• Hitachi S13-86

• Lester 18326

Aftermarket / Verified Equivalents:

• Recmar: REC124610-77019

• DB Electrical / J&N: 410-44080

🚤 Compatibility

Commonly used on:

• Yanmar 6LY, 6LYA and 6LY2 marine diesel starting systems

Typically suits:

• Engine models:

• Yanmar 6LY-STE, 6LY-UTE, 6LY-UTM and 6LY-UTZY

• Yanmar 6LYA-STE, 6LYA-STP and 6LYA-UTE

• Yanmar 6LY2-STE, 6LY2-STP and 6LY2A-STP

• Yanmar 6LY2A-UTP

• Yanmar 6LYM-STE and 6LYM-UTE

• Selected Yanmar 6PH, 6PHM and 6PHS engines using the same starter family

• HP Range: Engine-rating specific; approximately 300HP-440HP for the principal 6LY families

• Engine Type: Turbocharged inline-six marine diesel

• Year Range: 6LY/6LYA/6LY2 production; confirm by engine suffix

• Voltage: 12V

• Rated Power: Approximately 3.0kW

• Rotation: Clockwise viewed from the drive end

• Pinion: 11-tooth

• Original Manufacturer Pattern: Hitachi S13-68 / S13-86

🔌 Function

The starter motor converts battery power into mechanical cranking torque. When the solenoid is energised, the pinion engages the flywheel ring gear and rotates the crankshaft until the engine starts and the pinion disengages.

Common signs of failure:

• Starter clicks but does not crank the engine

• Slow or laboured cranking with a fully charged battery

• Pinion spins without engaging the flywheel

• Grinding, clashing or delayed disengagement at the ring gear

• Intermittent operation caused by worn brushes, armature or solenoid contacts

• Excessive heat, burnt odour or high current draw

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
