🔧 Product Description

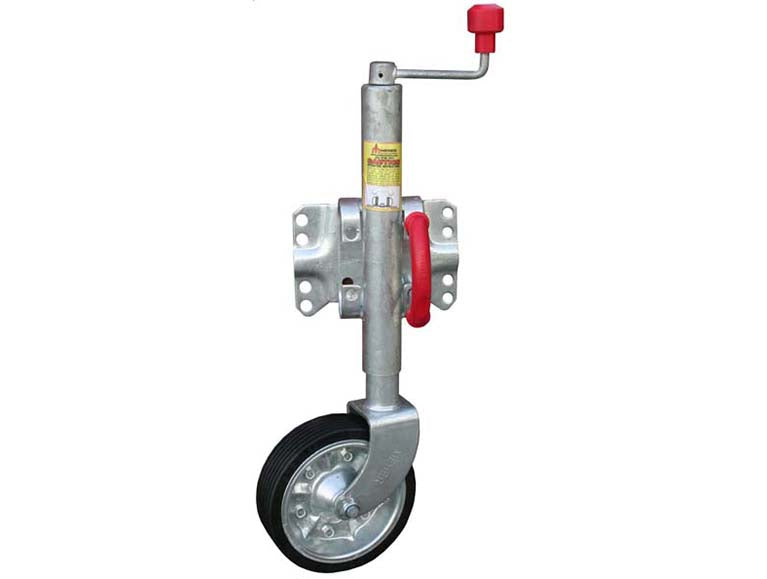

Dunbier Galvanised Top-Wind Swing-Up Jockey Wheel with 8" Steel/Rubber Wheel – Part Number: 1262
A galvanised swing-up jockey wheel with a 200 × 60mm steel-centred rubber wheel and 350kg lift capacity. The top-wind screw raises and lowers the drawbar, while the pivoting bracket allows the complete wheel to swing horizontally for travel.
⚙️ Key Features
- Top-wind screw mechanism
- Swing-up travel position
- Galvanised trailer-grade construction
- Steel-centred rubber wheel
- Suitable for boat-trailer launching and manoeuvring
📏 Specifications
- Lift capacity: 350kg
- Wheel size: 200 × 60mm
- Wheel construction: Steel centre with rubber tyre
- Operation: Top wind
- Mounting: Swing-up bracket
🔄 Cross Reference & Related Parts
- Dunbier: 1262
- Mackay: H3932
- Replacement wheel: Dunbier 1351
- Smaller 150 × 50mm swing-up model: Dunbier 1292 / Mackay H3930
🚤 Trailer Compatibility & Application
- Suitable for compatible boat and general trailers with drawbar down-load within rating
- Mounting bracket and drawbar dimensions must match
- The lift rating is not a trailer-jacking or axle-lifting rating
🔌 Function
Supports the trailer drawbar when uncoupled and allows limited low-speed manual manoeuvring.
⚠️ Common Signs of Failure
- Wheel rubber is split, flat-spotted or separated
- Winding screw binds or has excessive play
- Swing pivot does not lock securely
- Outer or inner tube is bent
- Corrosion damages the bracket or fasteners
🛠️ Installation & Safety
- Mount to a structurally sound drawbar
- Confirm the swing lock engages fully in both positions
- Retract and swing the wheel clear before towing
- Lubricate the screw and pivot with suitable water-resistant grease
- Do not move the trailer at road speed with the wheel lowered
📦 Condition
- Brand new Dunbier Marine Products trailer component
- Supplied as one complete 8-inch swing-up jockey wheel
- Supplied in original or equivalent packaging
